Specifications and Downloads

• 1000mm length
• 100mm internal and 156mm external width
• Varied depth (see channel drawings in Downloads)
• External depth is specified in channel drawings in Downloads below
• Polypropylene plastic channel and stainless steel grate (matte finish)
• Easy and secure "clip" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Pedestrian load (A15)

Included in package:

• Channel drain(s) of desired depth
• 1 slotted stainless steel grate, A15 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)

Neutral channel drawing pdf
Neutral channel drawing dwg
Sloped channel drawing pdf
Sloped channel drawing dwg
Stainless steel grate pdf
Stainless steel grate dwg

Product Description

Vodaland offers a unique channel drain option with unparalleled quality and efficiency characteristics. Our BASE DN100 channels are made of 100% recycled polypropylene plastic and come in two options: channels with 1% built in slope or neutral 0% slope.

Our sloped channels will easily replace similar solutions made of plastic, polymer concrete and concrete. Due to its light weight and outstanding water flow characteristics it is one of our most versatile products. Each channel has 90-degree connection options, bottom outlet, and easy "clip" and lock connection between channels.

This particular channel package comes with a stainless steel grate (Load class A15). End caps not included in the package.

Installation videos

Great products and delivery service

"Great products and delivery service"

— Martin S. (5/5)

Your cart is empty

My Bag 0 item

Subtotal

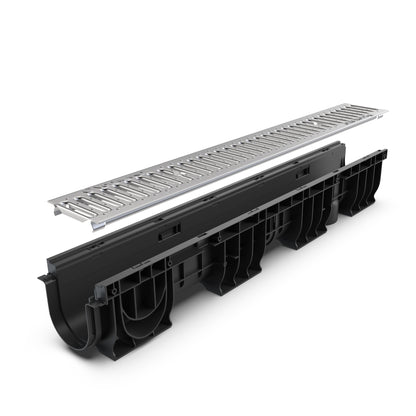

DN100 Stainless steel grate drainage channel package
