Modular STAINLESS DN100 channel drain system

Modular STAINLESS DN100 channel drain system

Regular price £375.00
Regular price Sale price £375.00
Sale Sold out
VAT included. Shipping calculated at checkout.
UK mainland delivery 1-2 days View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Ideal choice for food processing and storage areas, breweries, distilleries, chemical and food handling.
  • Made from 304 grade stainless steel and can be manufactured from 316 grade steel upon request (contact us to learn more)
  • Highly resistant to corrosion and chemicals

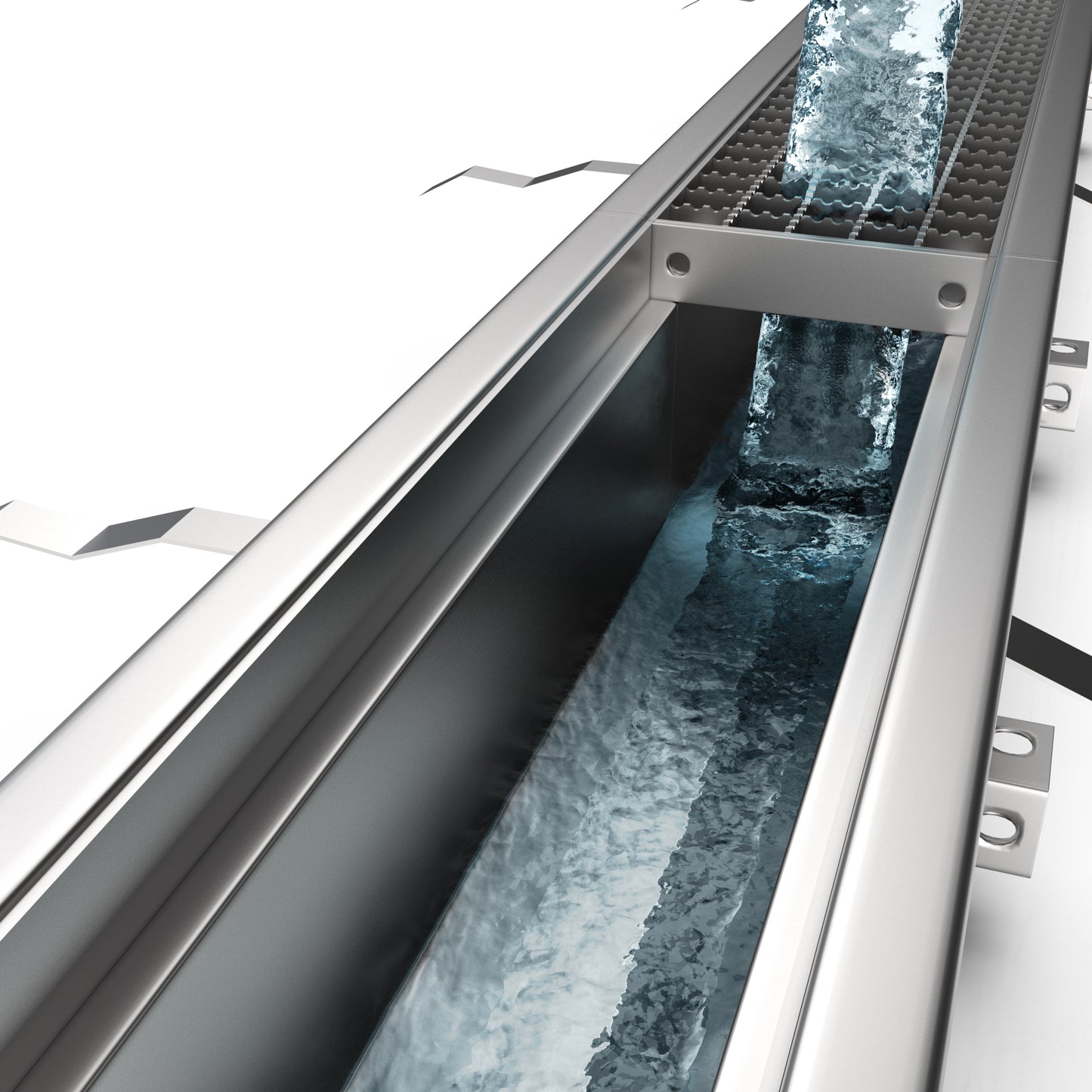

  • Built in slope of 0.5% and V-shaped bottom features significantly improve water flow
  • Channel drain is self cleaning
  • This system is rated load class B125

INCLUDED IN YOUR PURCHASE:

  • Stainless steel modular channel - your chosen quantity
  • Stainless steel grates - 1x per 1 unit of channel

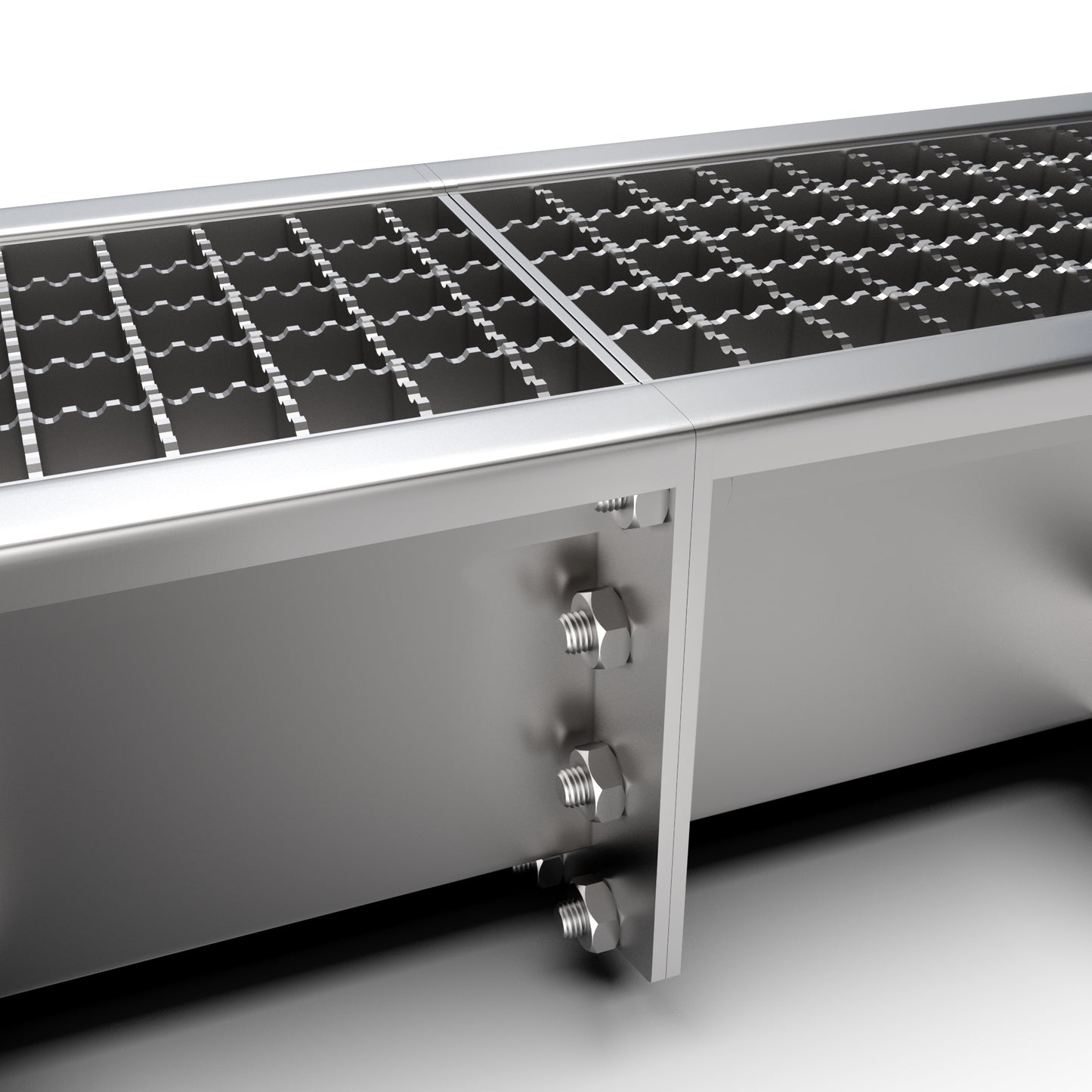

  • Stainless steel bolts and nuts
  • Please note that we will ship channels starting with the shallowest ones (see drawings in specifications tab). If you have a need for a different configuration please contact us and we will do our best to accommodate you.

RECOMMENDED PARTS:

  • Stainless steel end cap (closed)
  • Stainless steel end cap with outlet
  • Channel drawing PDF
  • Channel drawing DWG
  • Grate drawing PDF
  • Grate drawing DWG
  • Rebar Installation PDF
  • Adjustable legs installation PDF

Product Description

Product Description

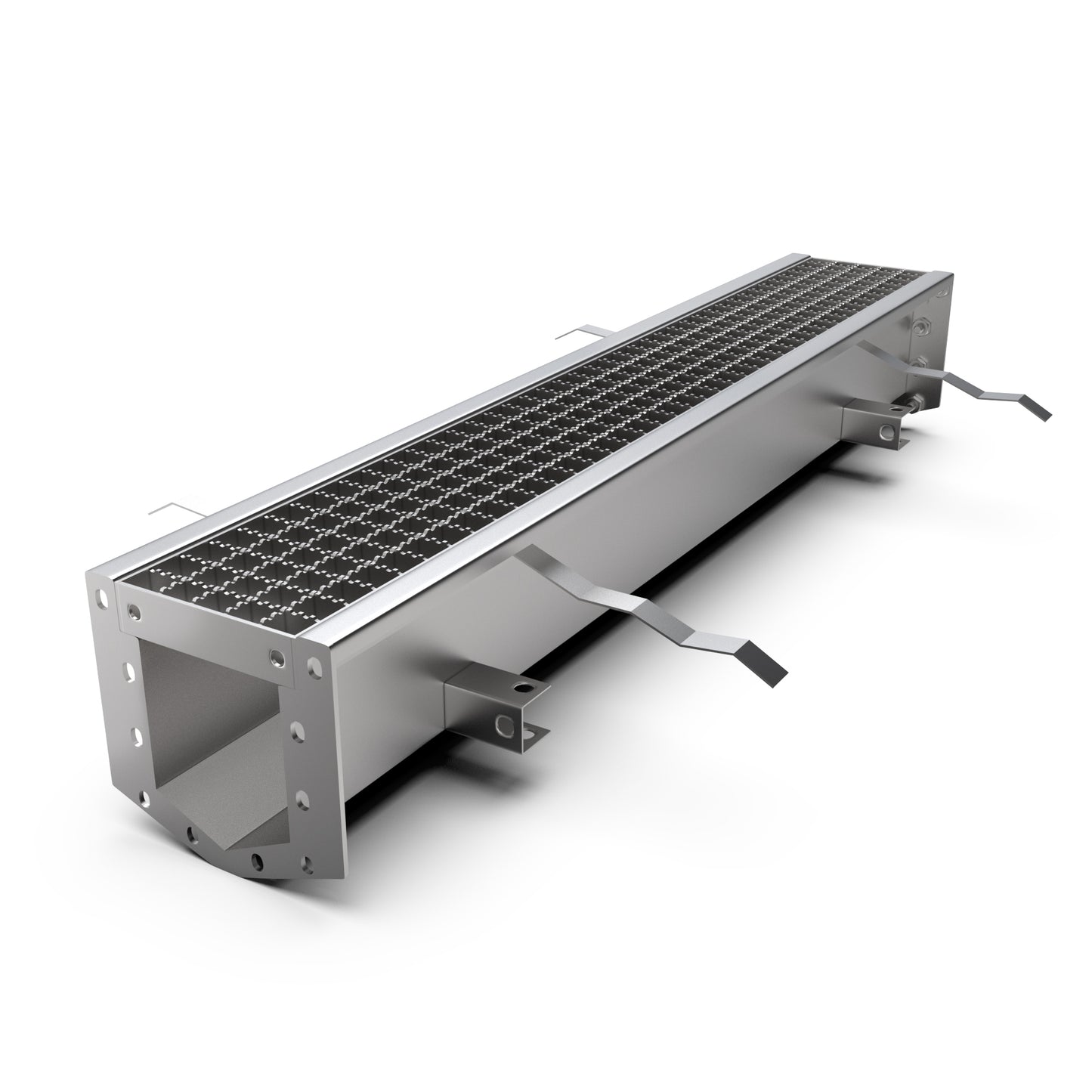

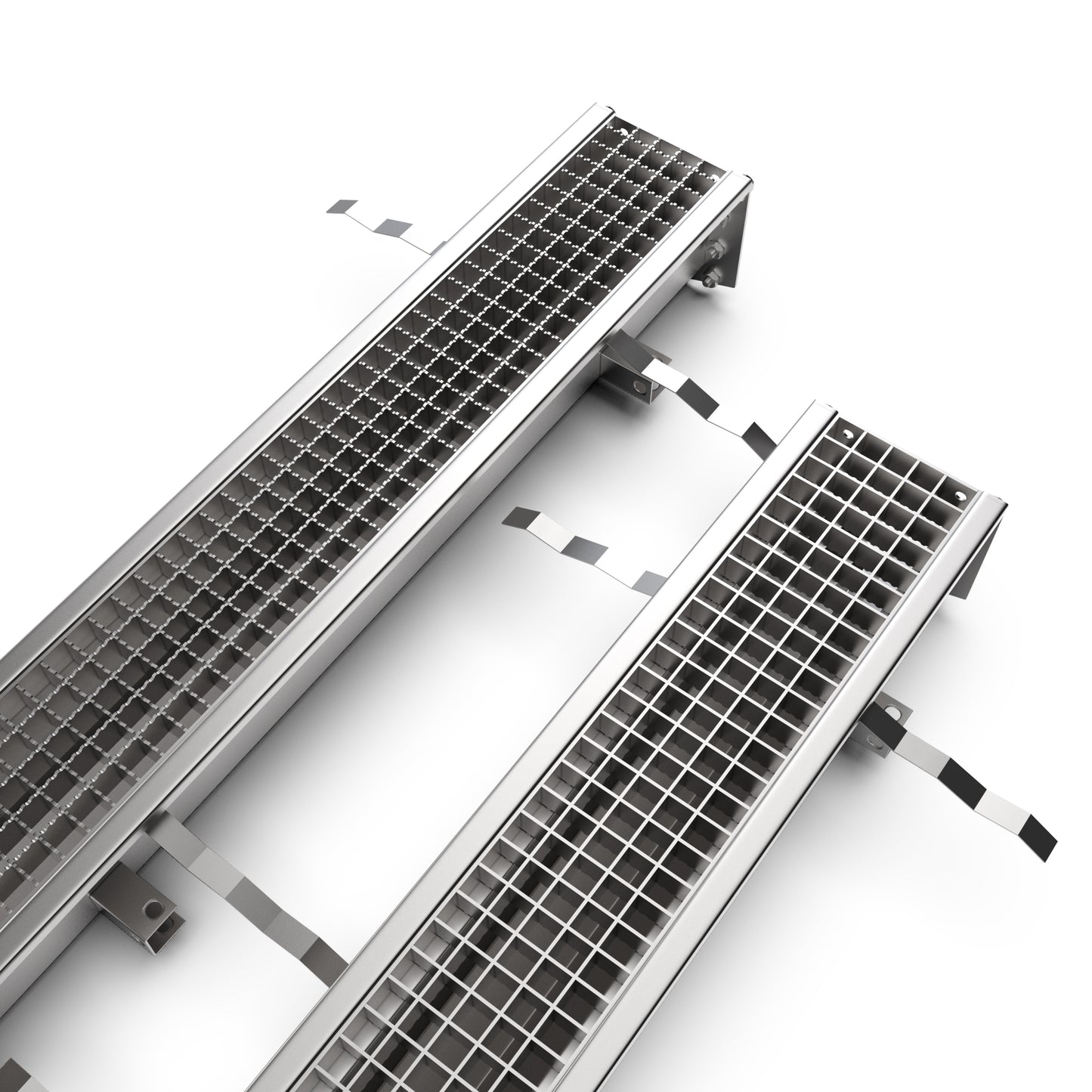

Vodaland Modular STAINLESS channel drain system is made of 304 stainless steel and is designed for applications such as breweries, distilleries, food processing and much more. Each channel comes with a double sided stainless steel grating: one side for anti sleep safety and the other side is a smooth mesh pattern. The system is rated load class B125 and can safely handle medium to heavy duty loads. Each channel features a built in fall - slope of 0.5% which greatly improves the flow of water and efficiency of our modular system.

The entire system can be manufactured from 316 stainless steel upon request. Contact us if you need any assistance or need a bespoke solution for your project.

Installation videos

Installation videos
