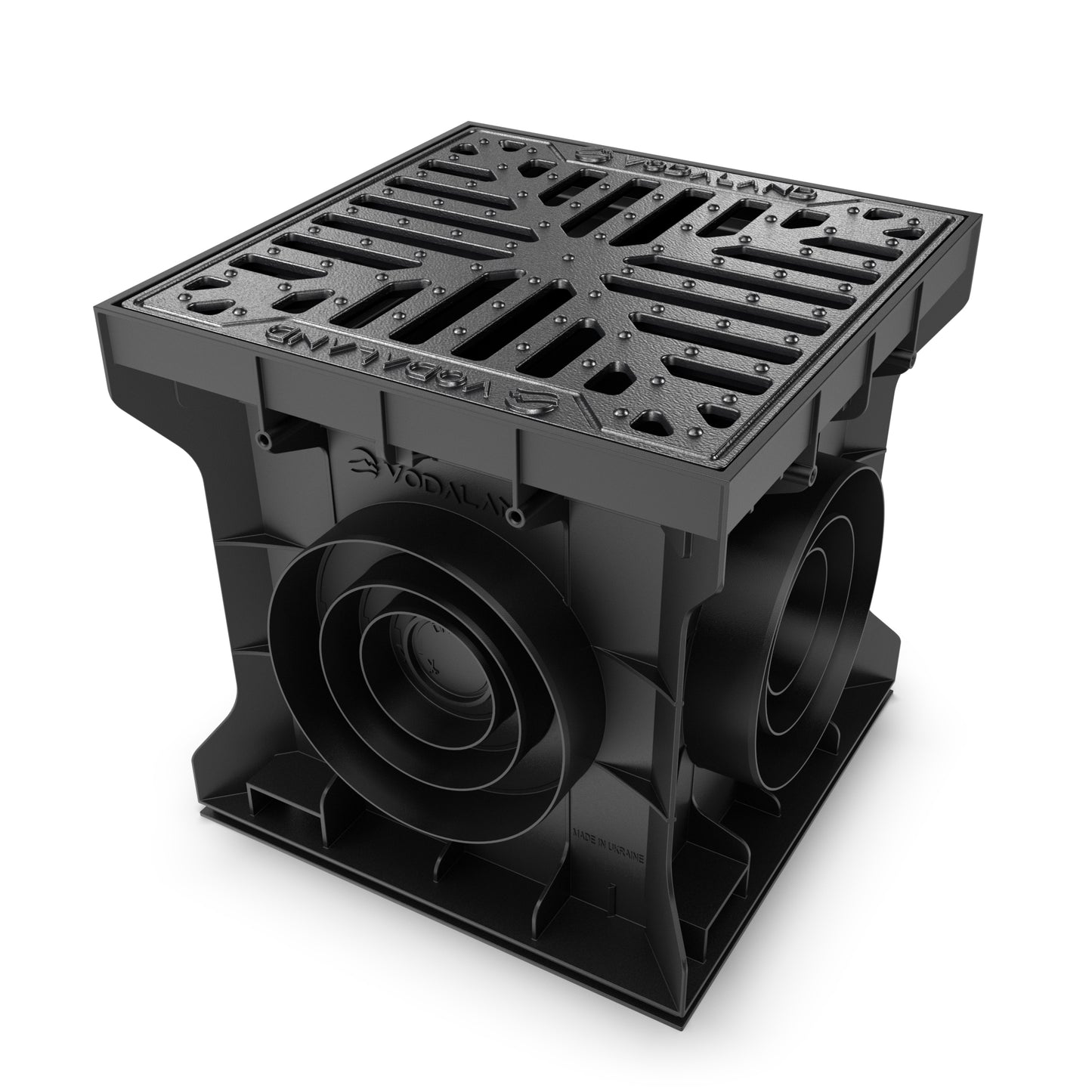

300x300 Plastic catch basin with cast iron grate, R50 (up to 5 tonnes)
300x300 Plastic catch basin with cast iron grate, R50 (up to 5 tonnes)
- Polypropylene yard drain with cast iron grate
- 50mm, 75mm, 110mm, 160mm outlets
- Stackable for deeper catchpits
- Load class R50 - up to 5 tonnes
- More product information below
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
• Overall size: 318mm x 318mm x 297mm
• Four outlet options: 50mm, 75mm, 110mm, and 160mm
• Made of 100% recycled polypropylene
• Easily stackable for deeper catchpits - no accessories needed
• Risers are available separately
• Sediment basket included
• Load class R50 - fit for vehicles and driveways
• Note that sediment basket will only trap leaves, sand, and etc entering via top grate and is not suitable as a silt trap for soakaways
• 300x300 Catch basins are not trapped and will not eliminate foul smells
• We apply special emulsion paints to our cast iron grates to prevent corrosion. However, all cast iron grates regardless of the paint used undergo a natural oxidization process which results in rusting surfaces. The speed at which this happens varies greatly and depends on environmental conditions, use of chemicals, installation and general maintenance.

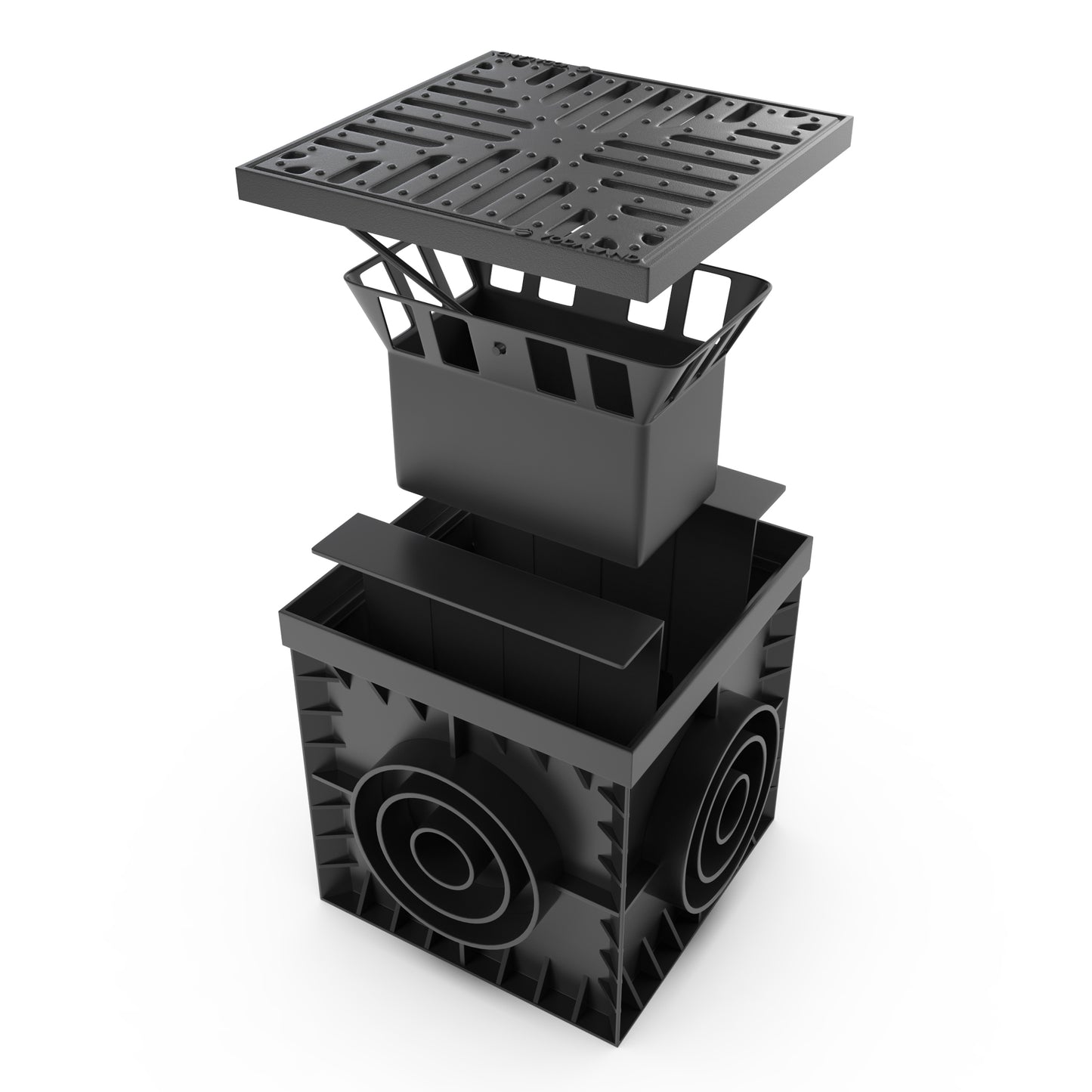

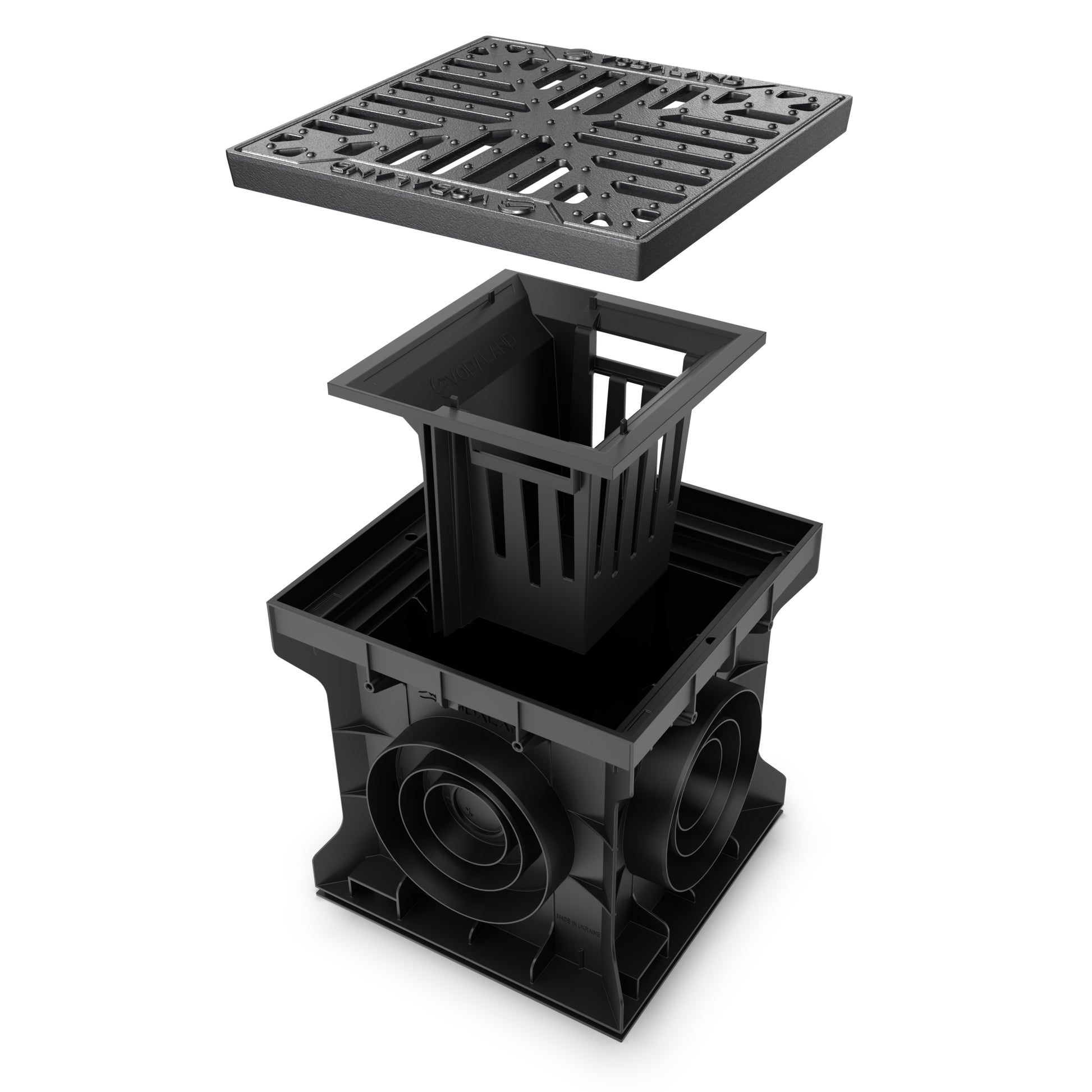

Included in package:
• 1 plastic yard drain
• 1 cast iron grate
• 2 plastic partitions
• 1 sediment basket
Product Description
Product Description
Vodaland's 300x300 plastic catch basins (also known as yard drains) have been perfected for the right balance between quality and cost. These are lightweight yet durable gullies that offer excellent point drainage. Each catch basin comes with removable sediment basket and a removable cast iron grate rated load class R50 - suitable for loads up to 5 tonnes, vehicles, driveways and more. Every catch basin features four outlet size options: 50mm, 75mm, 110mm and 160mm. Furthermore, Vodaland's yard drains are stackable allowing for deeper catchpits; risers are available separately. It is a versatile product and an excellent addition or alternative to traditional drainage channels.
