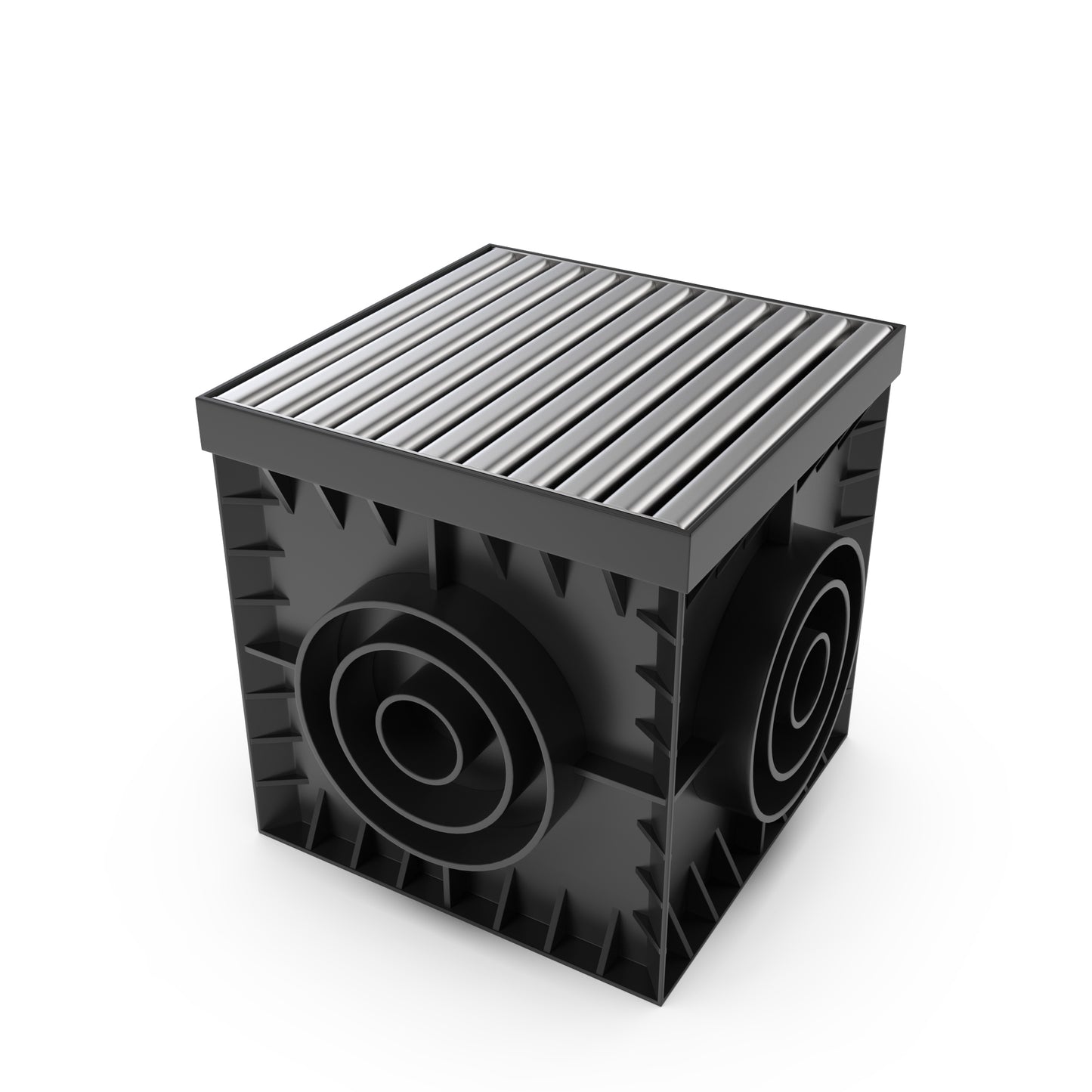

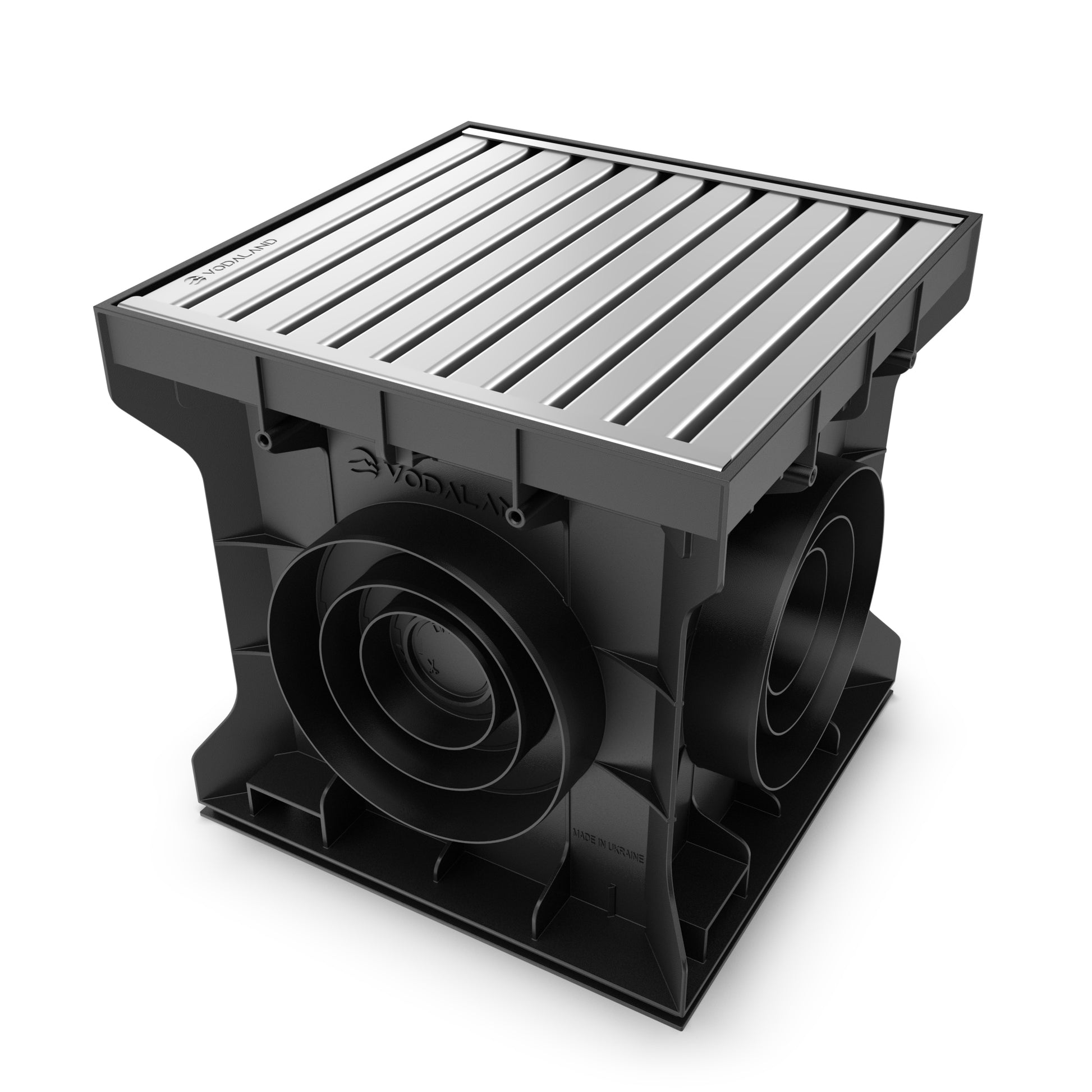

300x300 Plastic catch basin with stainless HeelSafe grate, A15

300x300 Plastic catch basin with stainless HeelSafe grate, A15

Regular price £70.00
Regular price Sale price £70.00
Sale Sold out
VAT included. Shipping calculated at checkout.
UK mainland delivery 1-2 days View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

• Overall size: 318mm x 318mm x 297mm
• Four outlet options: 50mm, 75mm, 110mm, and 160mm
• Made of 100% recycled polypropylene
• Easily stackable for deeper catchpits - no accessories needed
• Sediment basket included
• Load class A15
• Note that sediment basket will only trap leaves, sand, and etc entering via top grate and is not suitable as a silt trap for soakaways
• 300x300 Catch basins are not trapped and will not eliminate foul smells
• Perfect for downspouts, patios, gardens, outdoor & indoor areas and much more

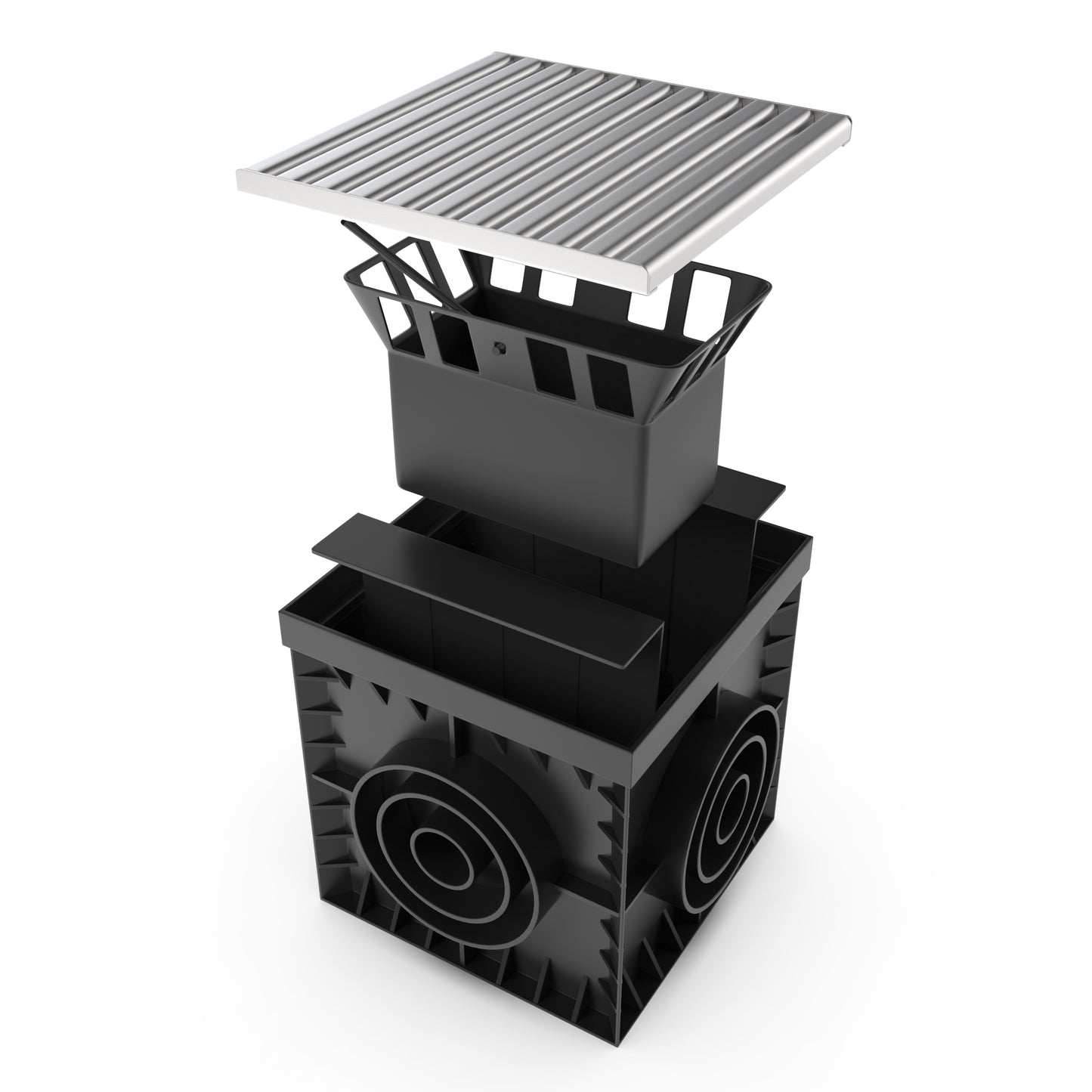

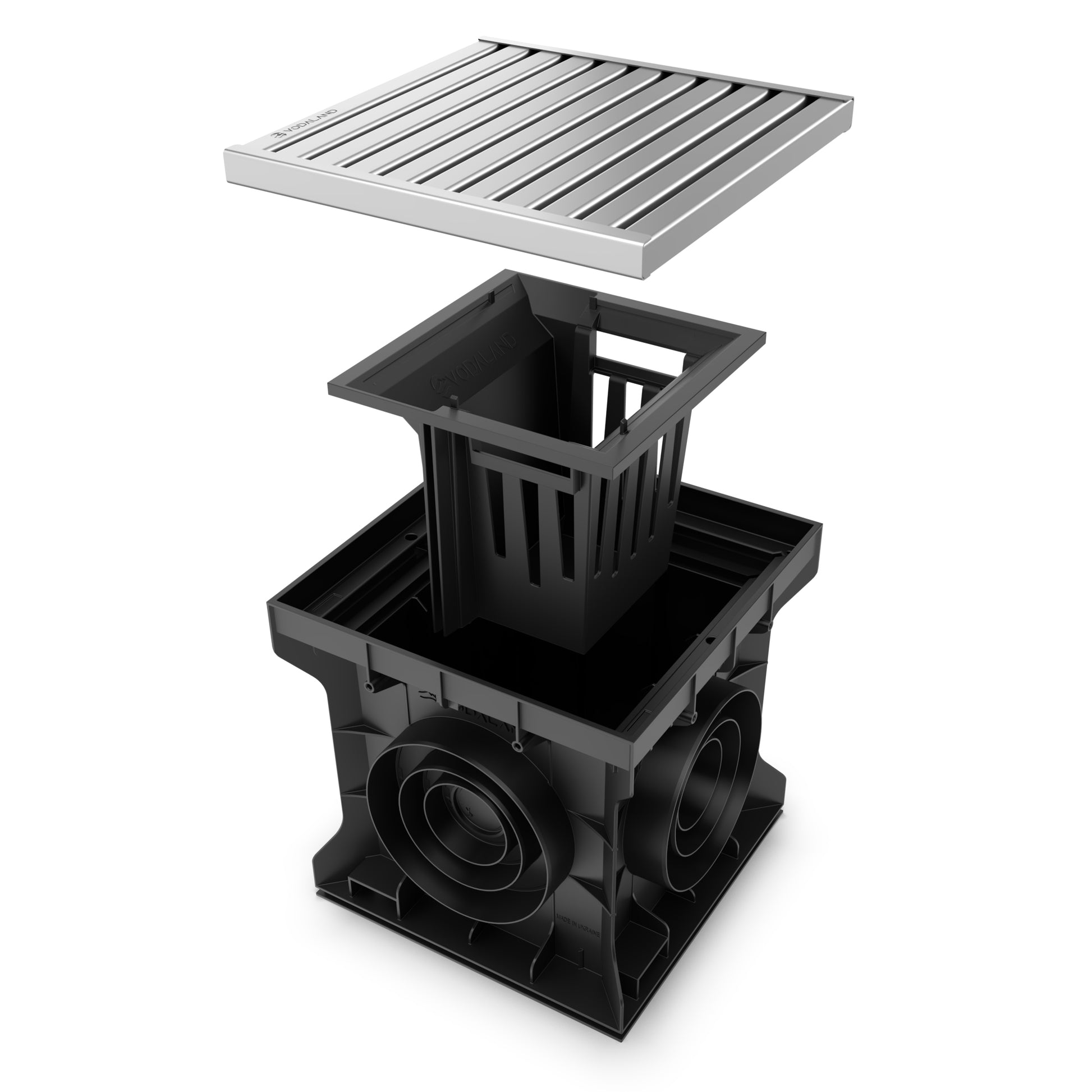

Included in package:

• 1 plastic yard drain

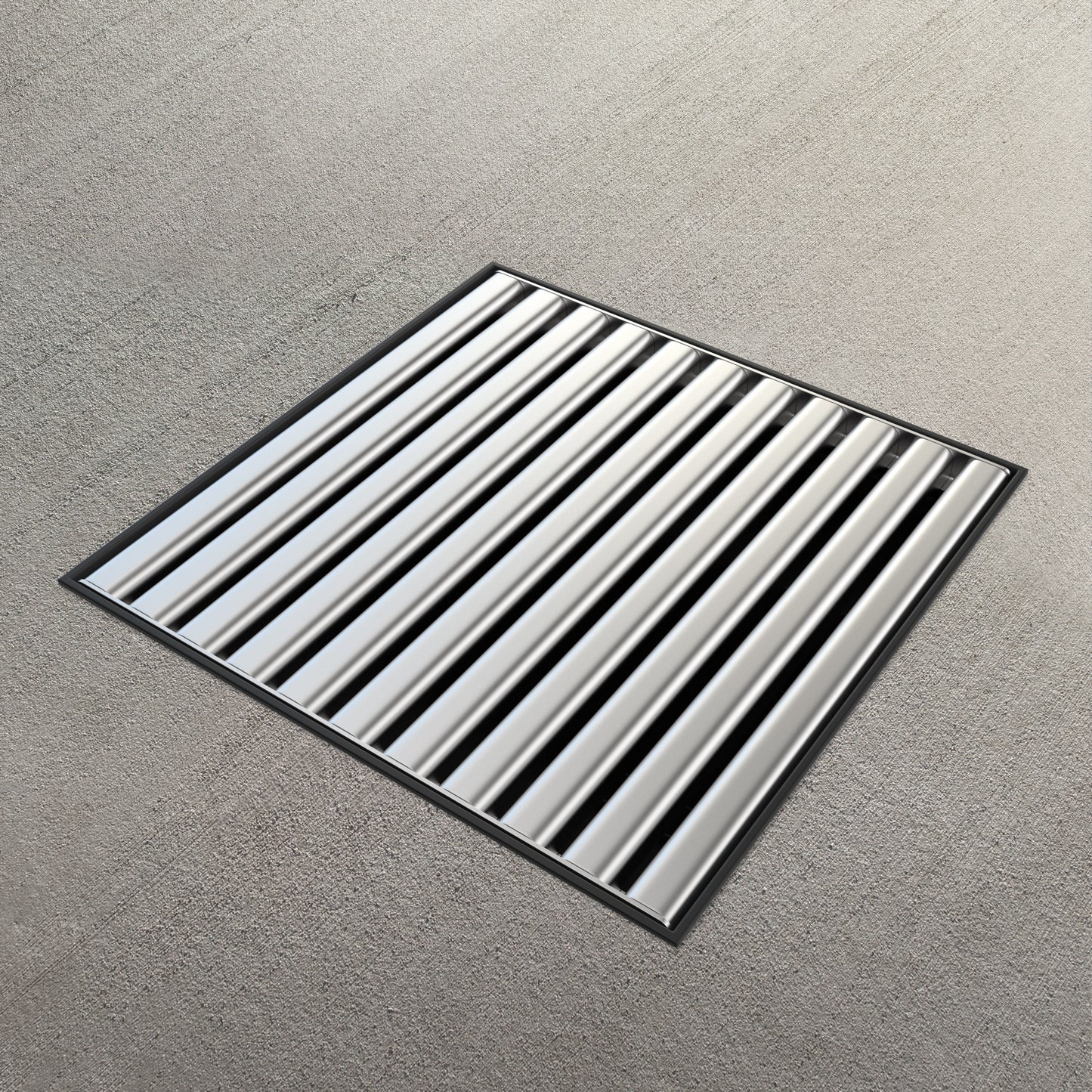

• 1 stainless steel HeelSafe grate
• 2 plastic partitions
• 1 sediment basket

  • Yard drain drawing PDF
  • Yard drain drawing CAD
  • Grate drawing PDF
  • Grate drawing CAD

Product Description

Product Description

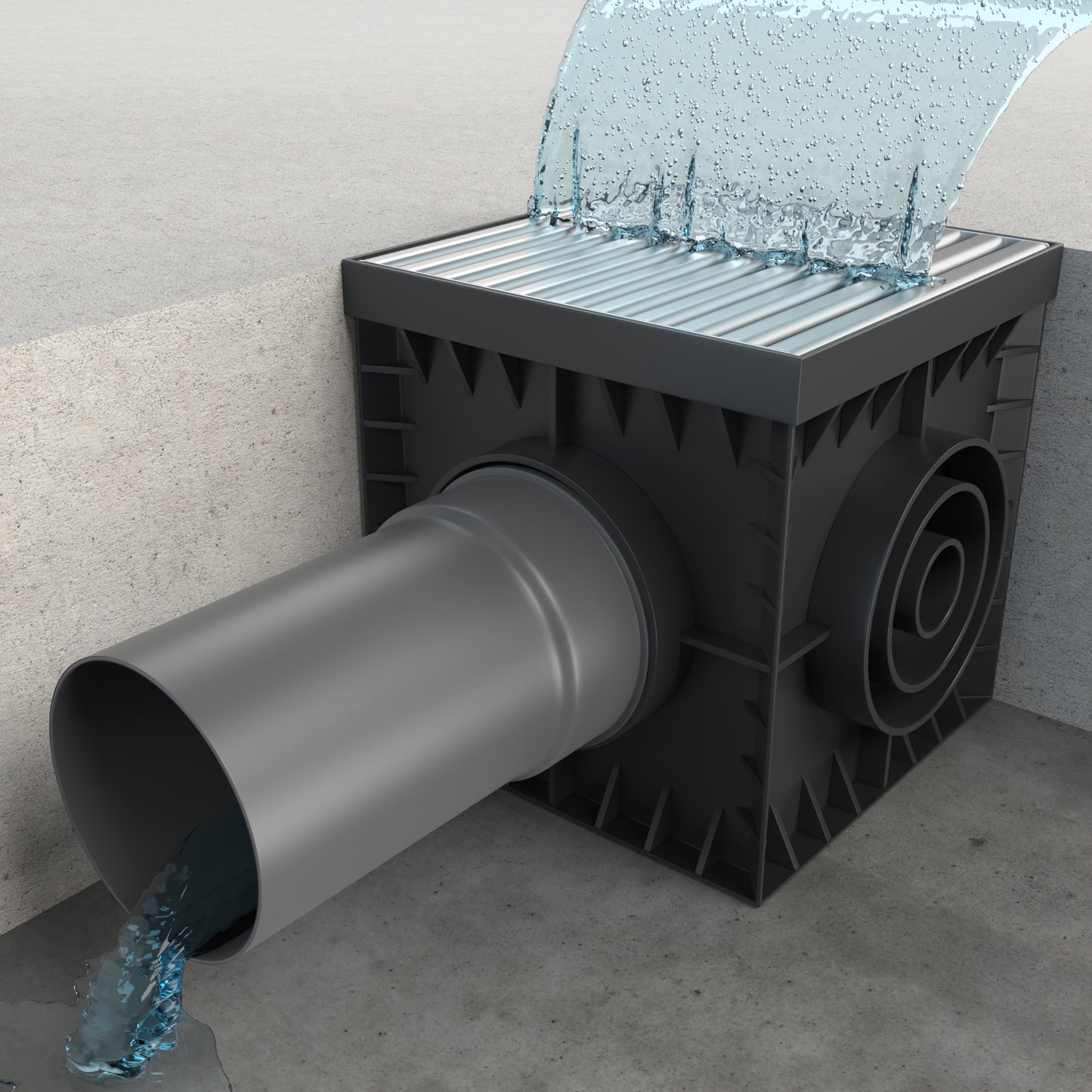

Vodaland's 300x300 plastic catch basins (also known as yard drains) have been perfected for the right balance between quality and cost. These are lightweight yet durable gullies that offer excellent point drainage. Each catch basin comes with removable sediment basket and a removable stainless steel HeelSafe grate rated load class A15 - suitable for pedestrian and light loads. Every catch basin features four outlet size options: 50mm, 75mm, 110mm and 160mm. Furthermore, Vodaland's yard drains are stackable allowing for deeper catchpits. It is a versatile product and an excellent addition or alternative to traditional drainage channels.
