2-3 working days delivery
• Product code: 20101
• 998mm length
• 136mm width
• Weight 1.2kg
• Galvanised steel grating
• Load class A15 - pedestrian use only
• Grate fasteners are available for purchase

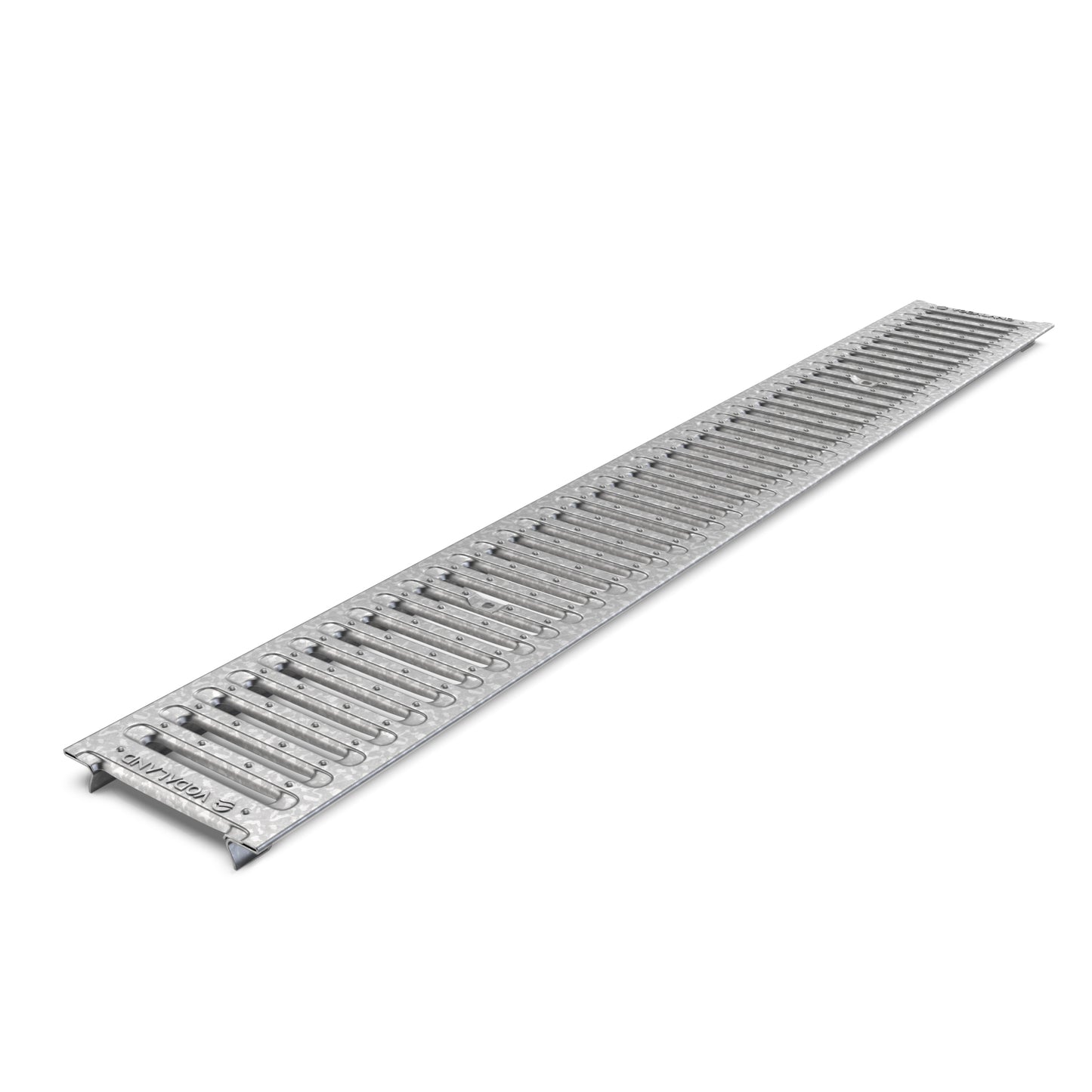

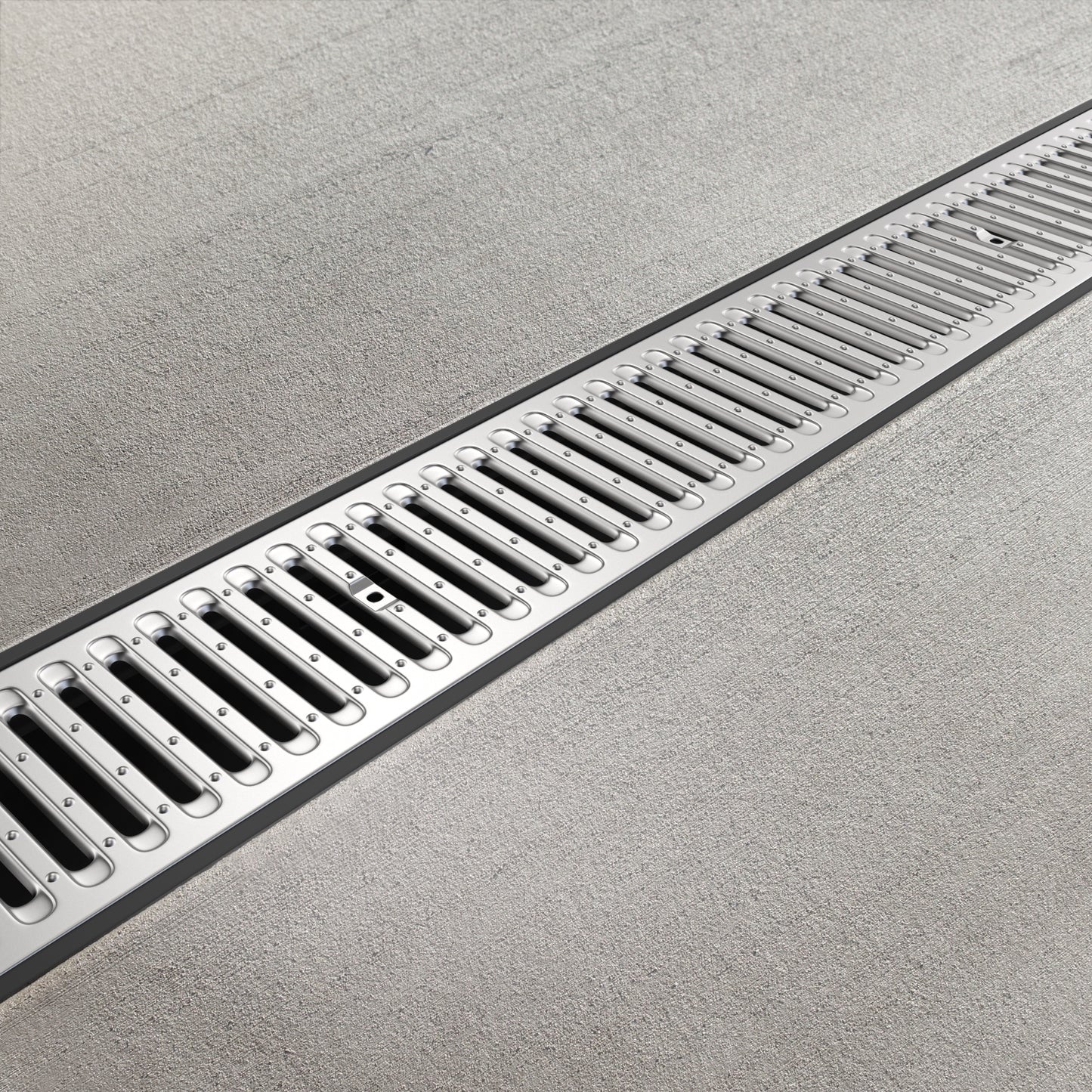

Vodaland BASE DN100 galvanised slotted grate is our most popular grate due to its simplicity and utility. Gratings can be used separately if you need to substitute an existing grating or if you are pouring your own channel and need to fix a grate on top. This particular grate is rated load class A15 and although it can support 1.5 tonnes of static load we do not recommend it for vehicle traffic. For driveways and vehicles consider B125 or C250 grates. To see our full selection of grates gratings for any kind of application from load class A15 to C250 - visit our channel grates collection.
Overall rating: 4.923077 / 5 from 13 reviews.
Review topics: [].
"My channel drain. grates. were corroding and unfortunately the company had stopped making them. After hours spent searching I discovered Woodaland would fit. I ordered one just to make sure, it fitted perfectly so I ordered another six to complete the job. I am very relieved to have found these and they are looking great."
"Fitted perfectly to the original company drain base. I made a mistake when ordering as it was for my driveway which cars go over but I believe A15 is footfall only. After 6 weeks though it is still fine with no distortion. Good quality product."
"Ordered one in the first place to see if it was a good fit, it was so ordered 3 more. Great quality and a good finnish to the grate. Fabulous upgrade to what was there originally"
"Did the job well and at a very good price, arrived quickly as well good effort thanks"
"Excellent service from ordering to delivery and they for better than the ones we replaced Will keep details in case we need again as in the front of a private drive which gets a lot of use"
"the origonal slotted grate in my drive is 25year old and past its sell by date. getting the same grate was a mammoth task until i came across VODALAND . that made AN OLD BOY HAPPY. and also the price."
"Fitted into drainage channel perfectly."
"Great product. Website easy to use. Delivery price could be cheaper?"
"Well made item."
"They fitted perfectly"
