Specifications and Downloads

• 1000mm length
• 100mm internal and 156mm external width
• Varied depth (see channel drawings in Downloads)
• External depth is specified in channel drawings in Downloads below

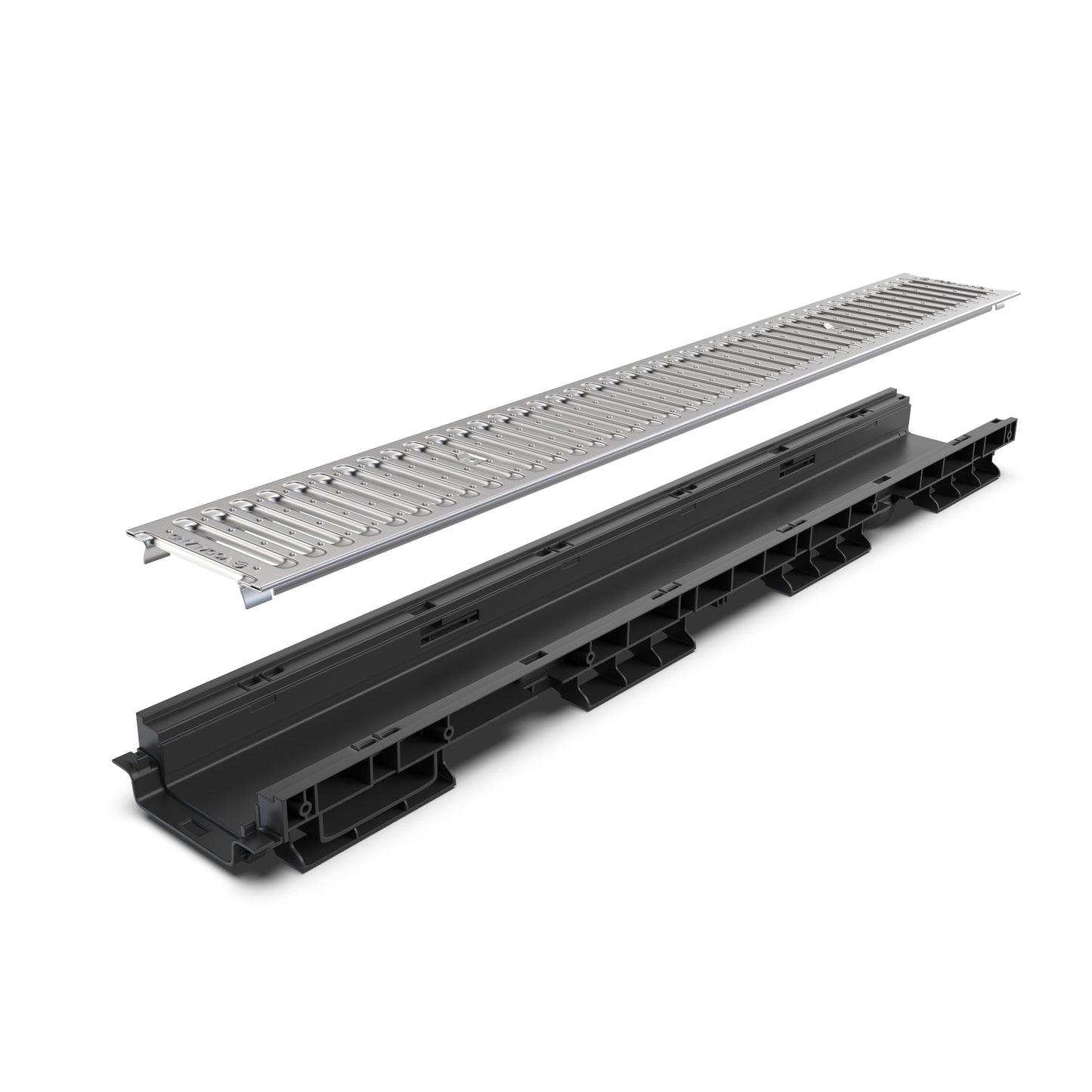

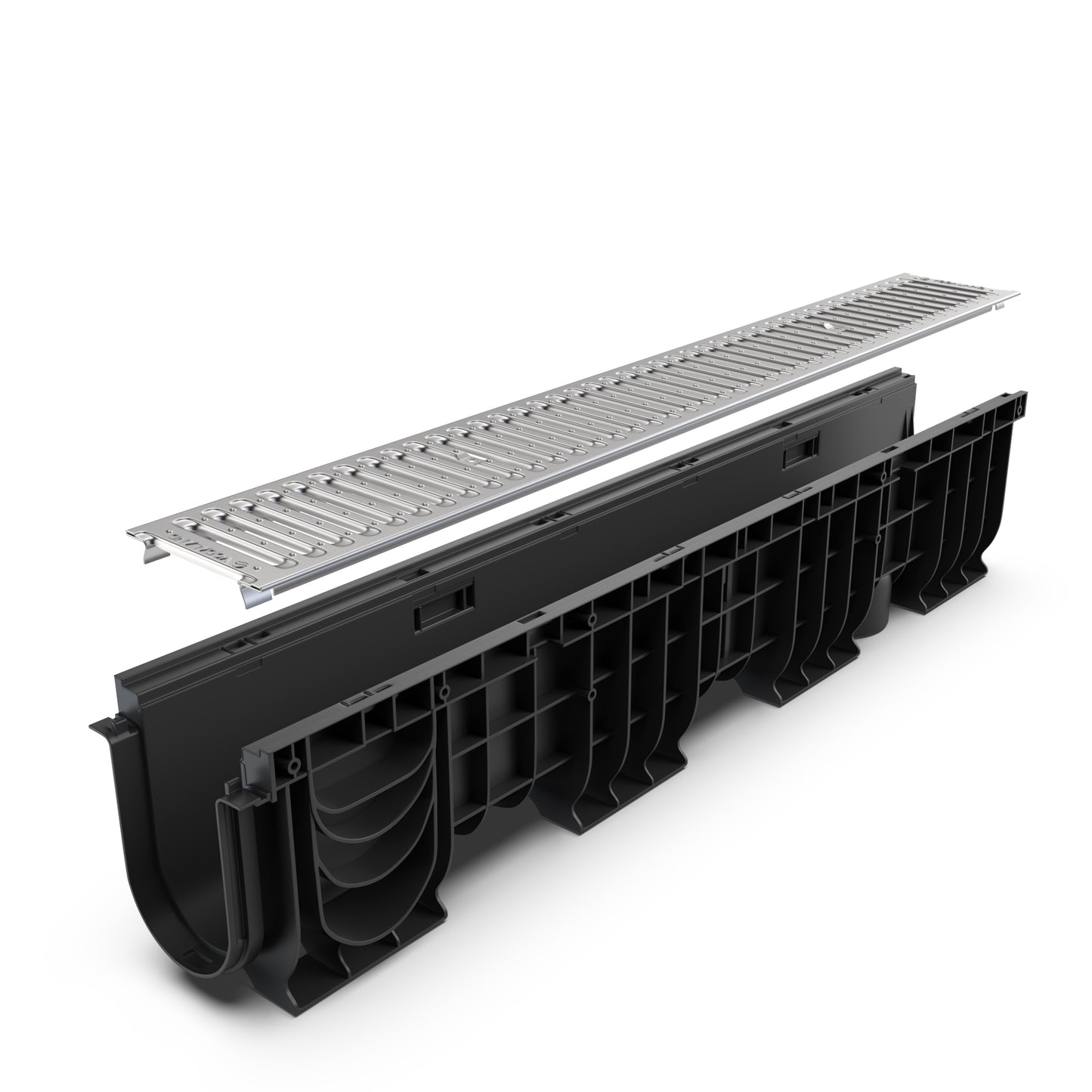

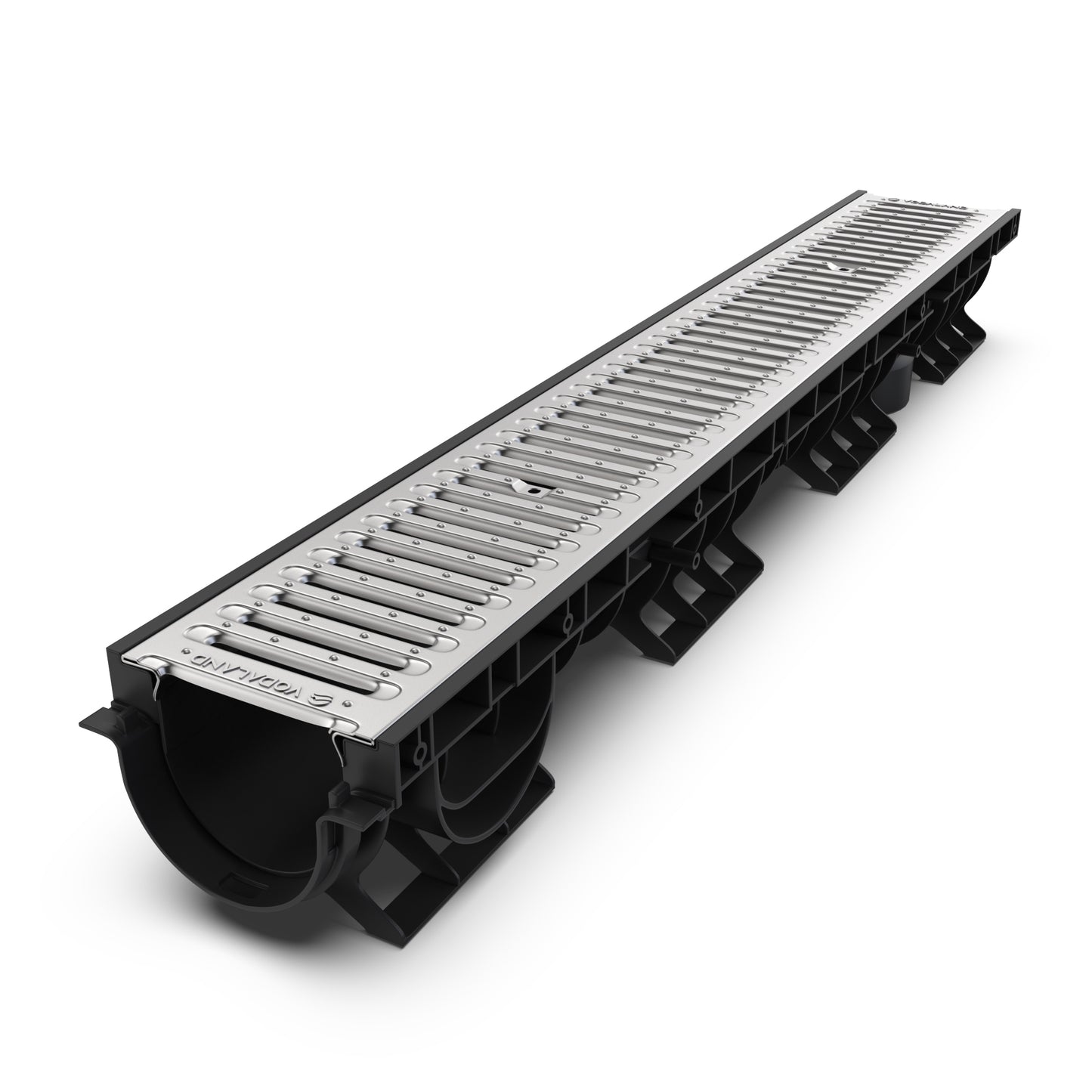

• Polypropylene plastic channel and galvanised steel grate
• Easy and secure "clip" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Pedestrian load (A15)

Included in package:

• Channel drain(s) of desired depth
• 1 slotted galvanised steel grate, A15 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)

Neutral channel drawing pdf
Neutral channel drawing cad
Sloped channel drawing pdf
Sloped channel drawing cad

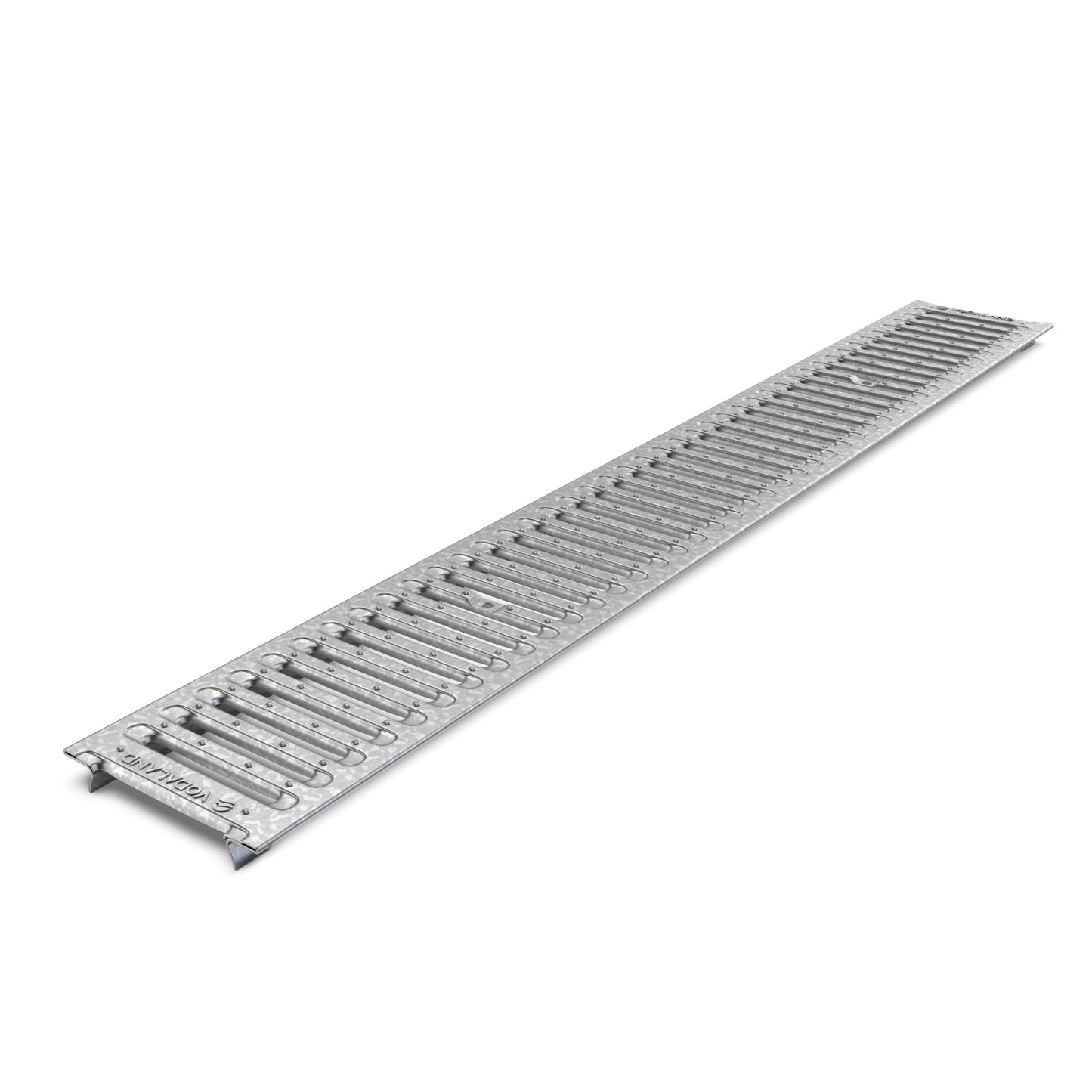

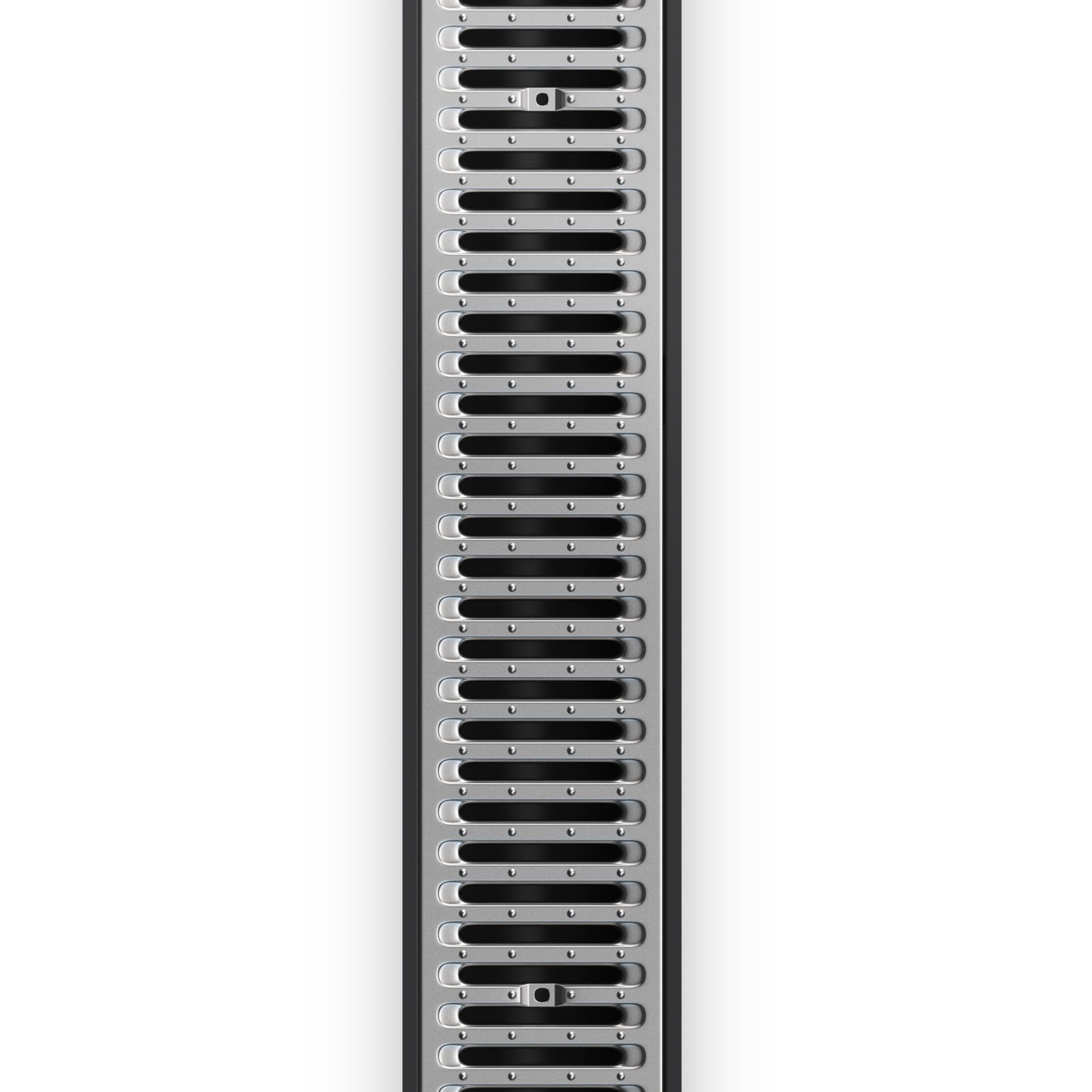

Galvanised steel slotted grate pdf
Galvanised steel slotted grate cad

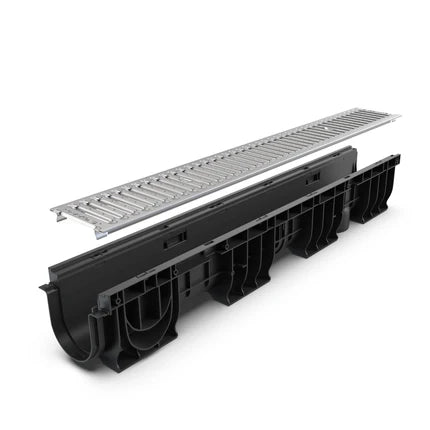

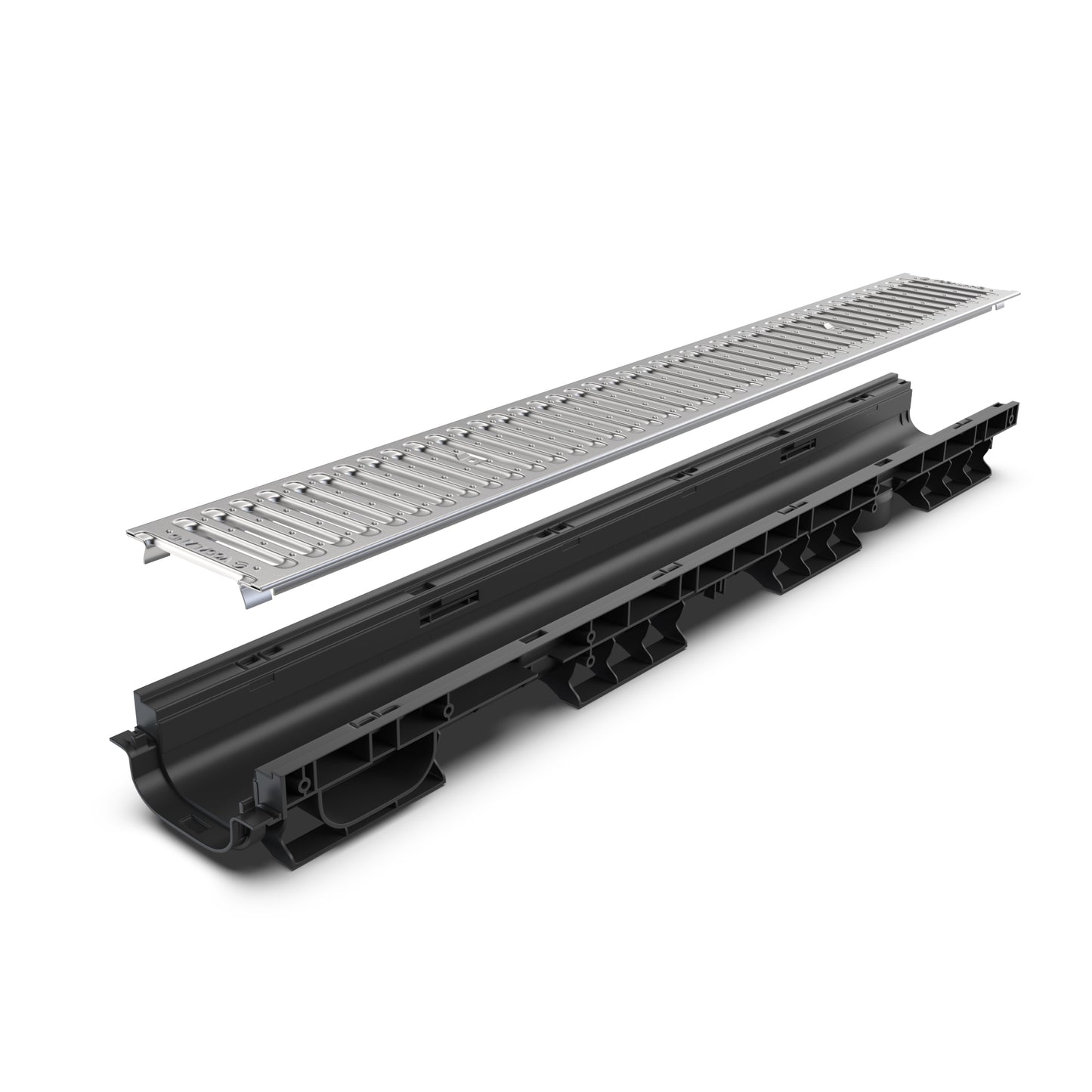

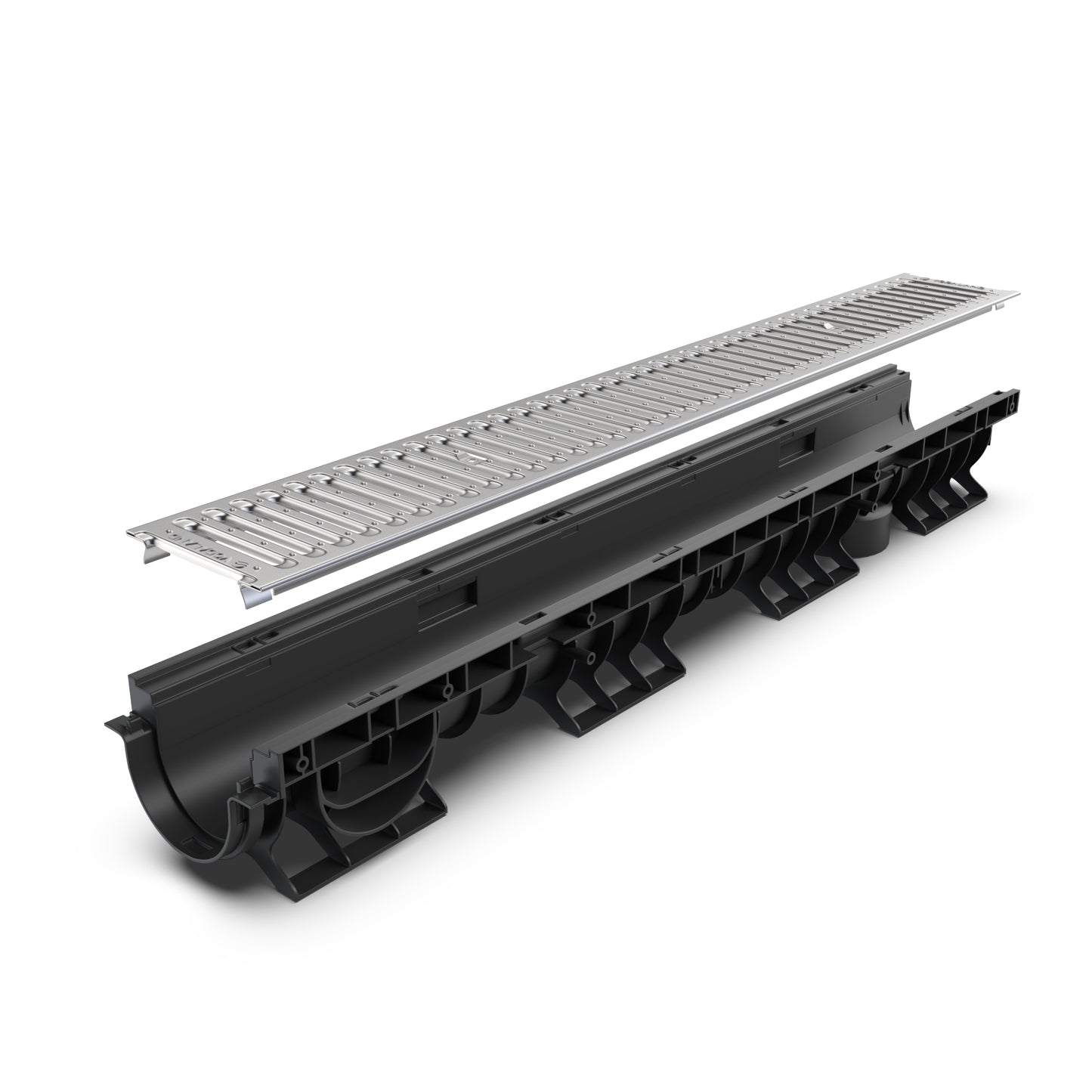

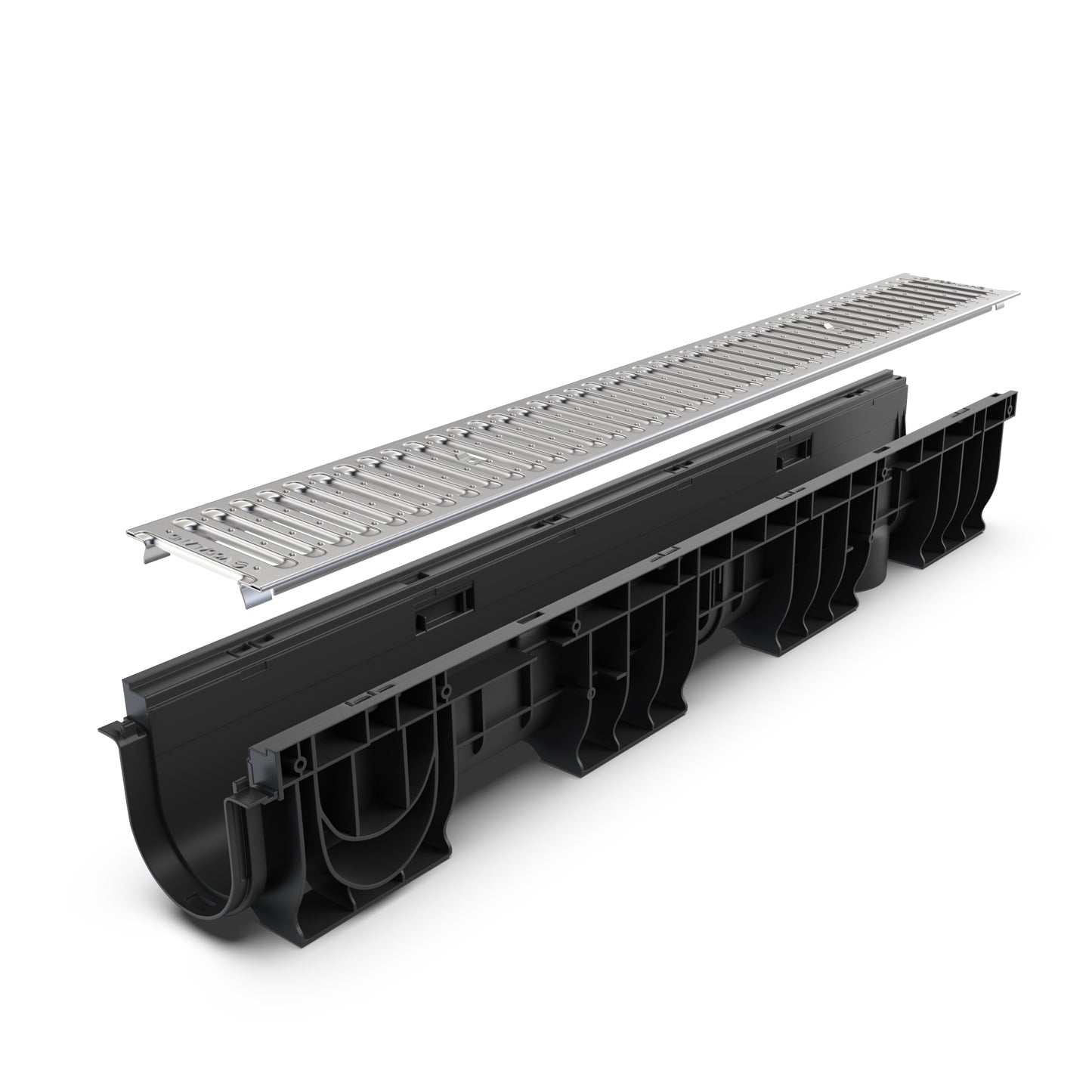

Product Description

Vodaland offers a unique channel drain option with unparalleled quality and efficiency characteristics. Our BASE DN100 channels are made of 100% recycled polypropylene plastic and come in two options: channels with 1% built in slope or neutral 0% slope.

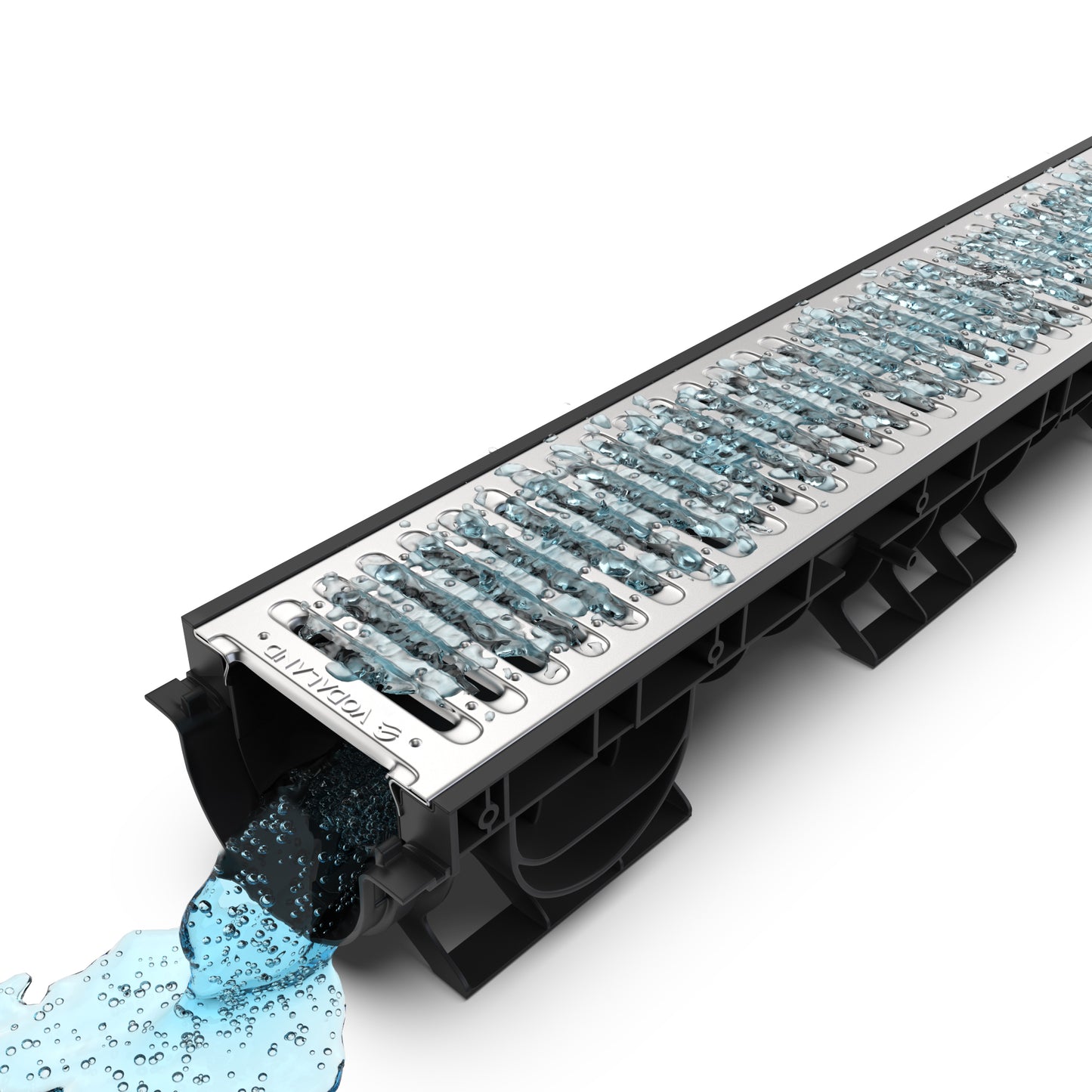

Our sloped channels will easily replace similar solutions made of plastic, polymer concrete and concrete. Due to its light weight and outstanding water flow characteristics it is one of our most versatile products. Each channel has 90-degree connection options, bottom outlet, and easy "clip" and lock connection between channels.

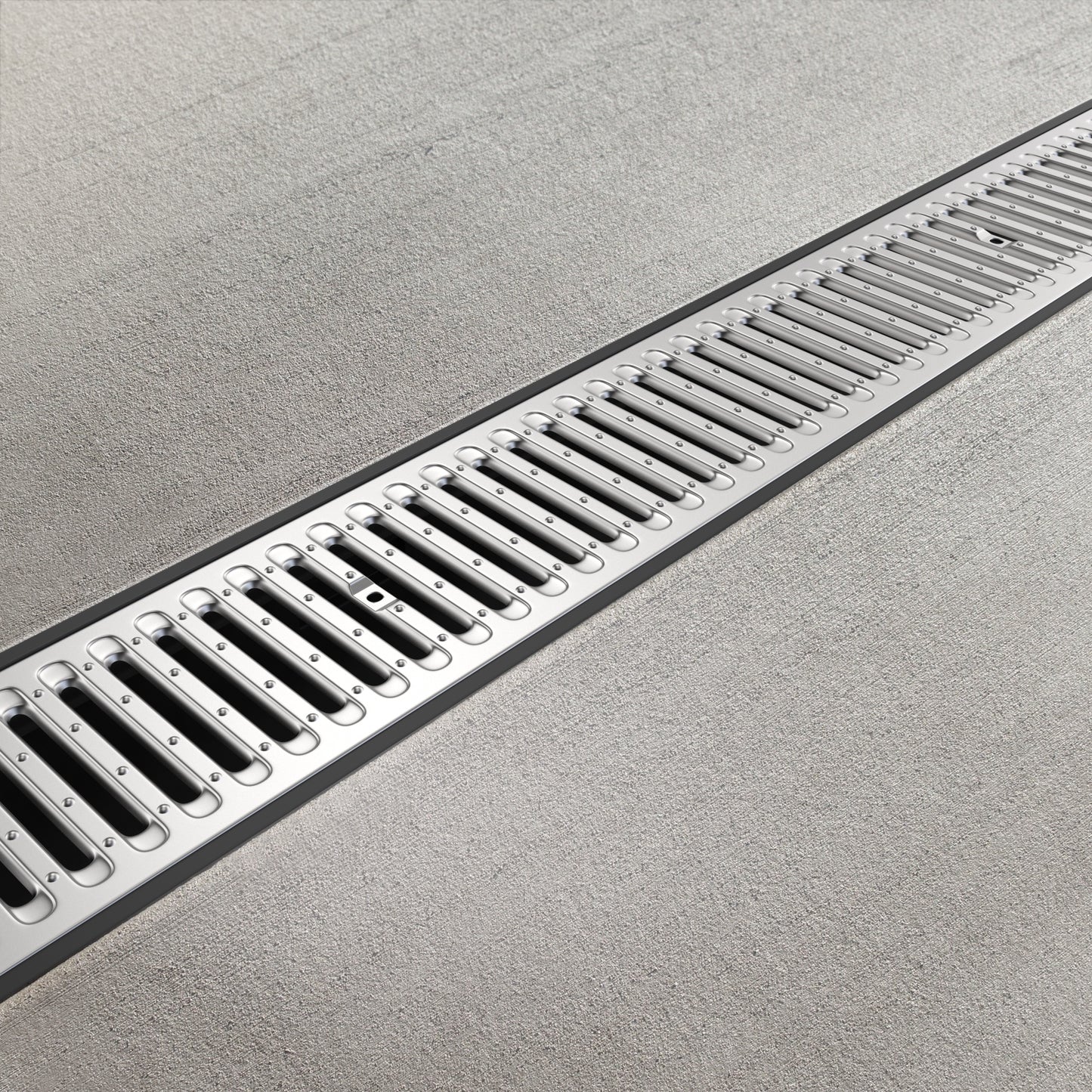

This particular channel package comes with a galvanised steel grate (Load class A15) and is perfect for pedestrian areas. End caps not included in the package.

How the sloped run works:

Each sloped channel is numbered by its position in the run (Channel 1, 2, 3...) and is a different depth, so together they create a continuous fall to the outlet while the grate stays level. Please select each channel number individually to complete your run, ordering multiples of the same number won't connect correctly or create a working slope. Contact our team if you need advice on the right combination for your run.

Installation videos

Excellent product superb customer services

"VVodaland for me was excellent. There was a problem with my order (my fault). I ordered some wrong products for the channeling. They put my order on hold. I saw this as I was sent an email. I told them what I wanted, and they amended my order and gave me a refund for products I didn't need. The order arrived two days later. Olivia was my point of contact, and the service was excellent. They saved me lots of time and returning products I didn't need and reordering products I did. I can only go on my experience. I would recommend this company if you have a job to do and are not sure DIY like me. Give them a call, tell them what you want to do, and they will give you the correct products for your job. 5 STAR"

— Paul T. (5/5)

I’m giving them a 2

"I’m giving them a 2 star because they’ve made sure to make returns as difficult as possible with the buyer paying the postage. A real shame as a lot of these products could be trial and error."

— Sana Q. (2/5)

Good product & reasonable postage

"Good product with plenty of outlet options &securable grids."

— Ian R. (4/5)
