BASE DN100 Plastic Channel Drain, Cast Iron Grate, C250
BASE DN100 Plastic Channel Drain, Cast Iron Grate, C250
- Polypropylene channel & cast iron grate
- Sloped and Neutral options
- Load Class C250
- More information below
- Polypropylene channel & cast iron grate
- Sloped and Neutral options
- Load Class C250
- More information below
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 100mm internal and 156mm external width
• Varied depth (see channel drawings in Downloads)
• Polypropylene plastic channel and cast iron grates
• Easy and secure "clip" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Anti-Slip grating
• Vehicle load (C250)
Included in package:
• Channel drain(s) of desired depth or length
• 2 slotted ductile cast iron grates, C250 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
• Please note that by selecting sloped option we will ship channels starting with the lowest depth. If you require a certain depth please contact us.
Product Description
Product Description

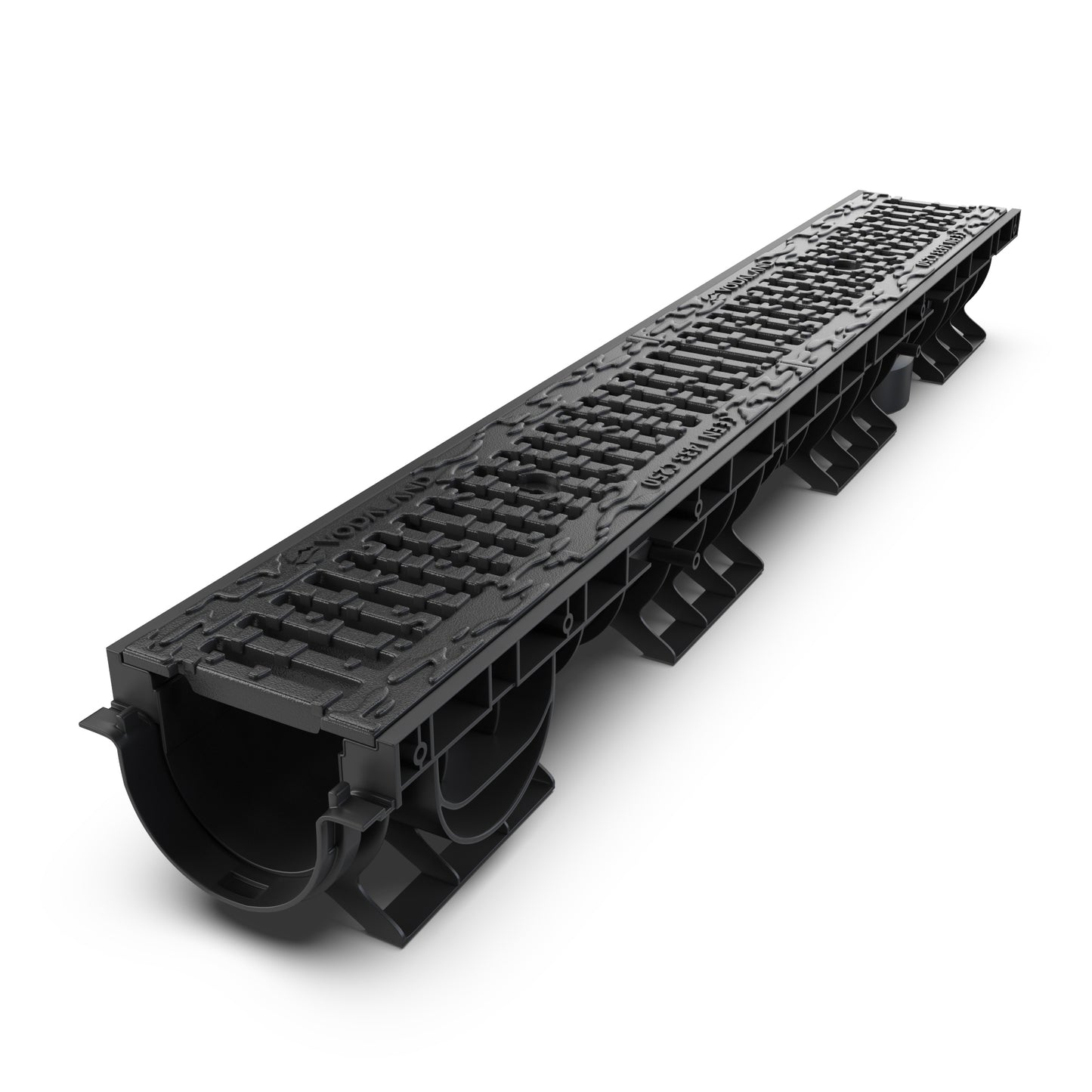

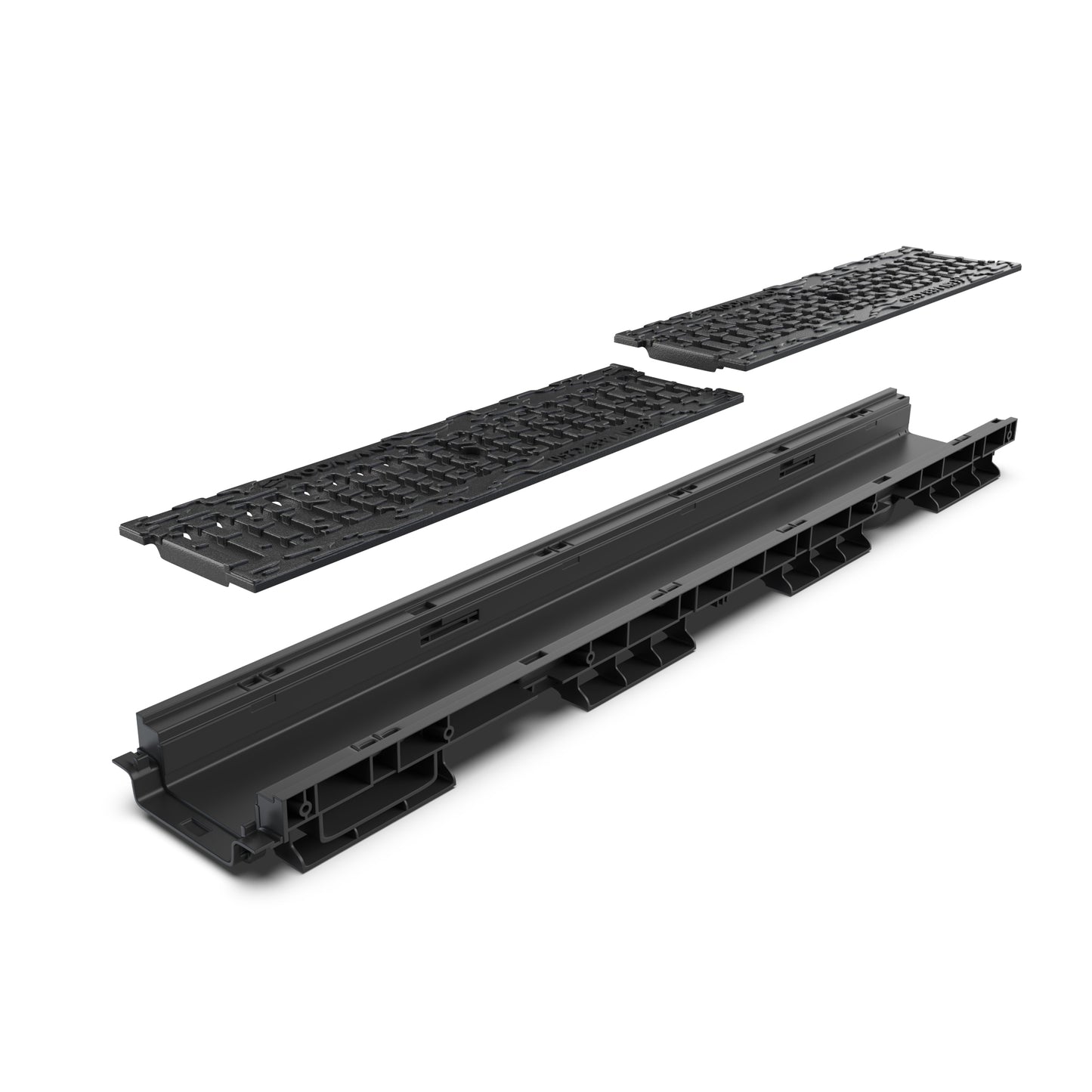

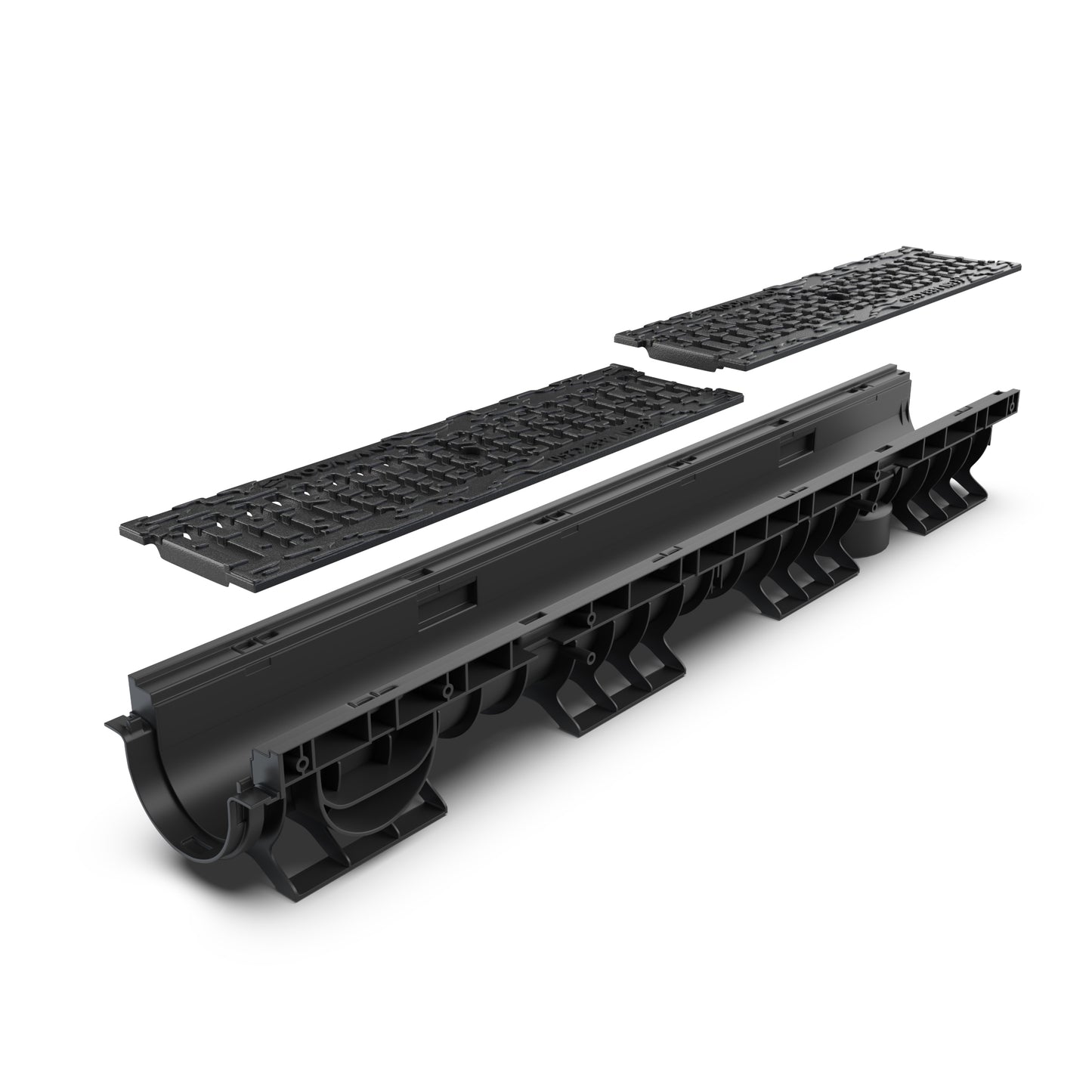

Vodaland offers a unique channel drain option with unparalleled quality and efficiency characteristics. Our BASE DN100 channels are made of 100% recycled polypropylene plastic and come in two options: channels with 1% built in slope or neutral 0% slope.
Our sloped channels will easily replace similar solutions made of plastic, polymer concrete and concrete. Due to its light weight and outstanding water flow characteristics it is one of our most versatile products. Each channel has 90-degree connection options, bottom outlet, and easy "clip" and lock connection between channels.

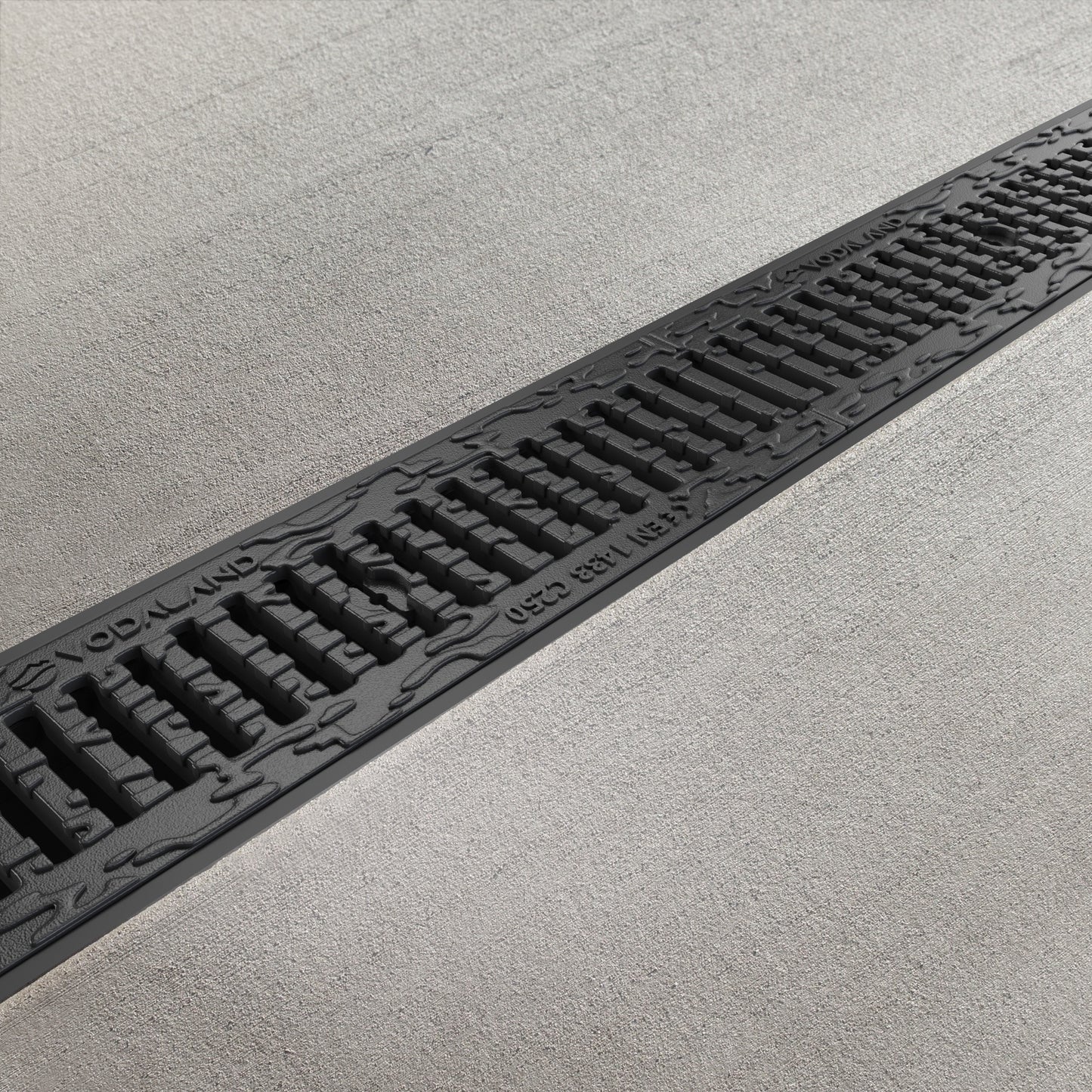

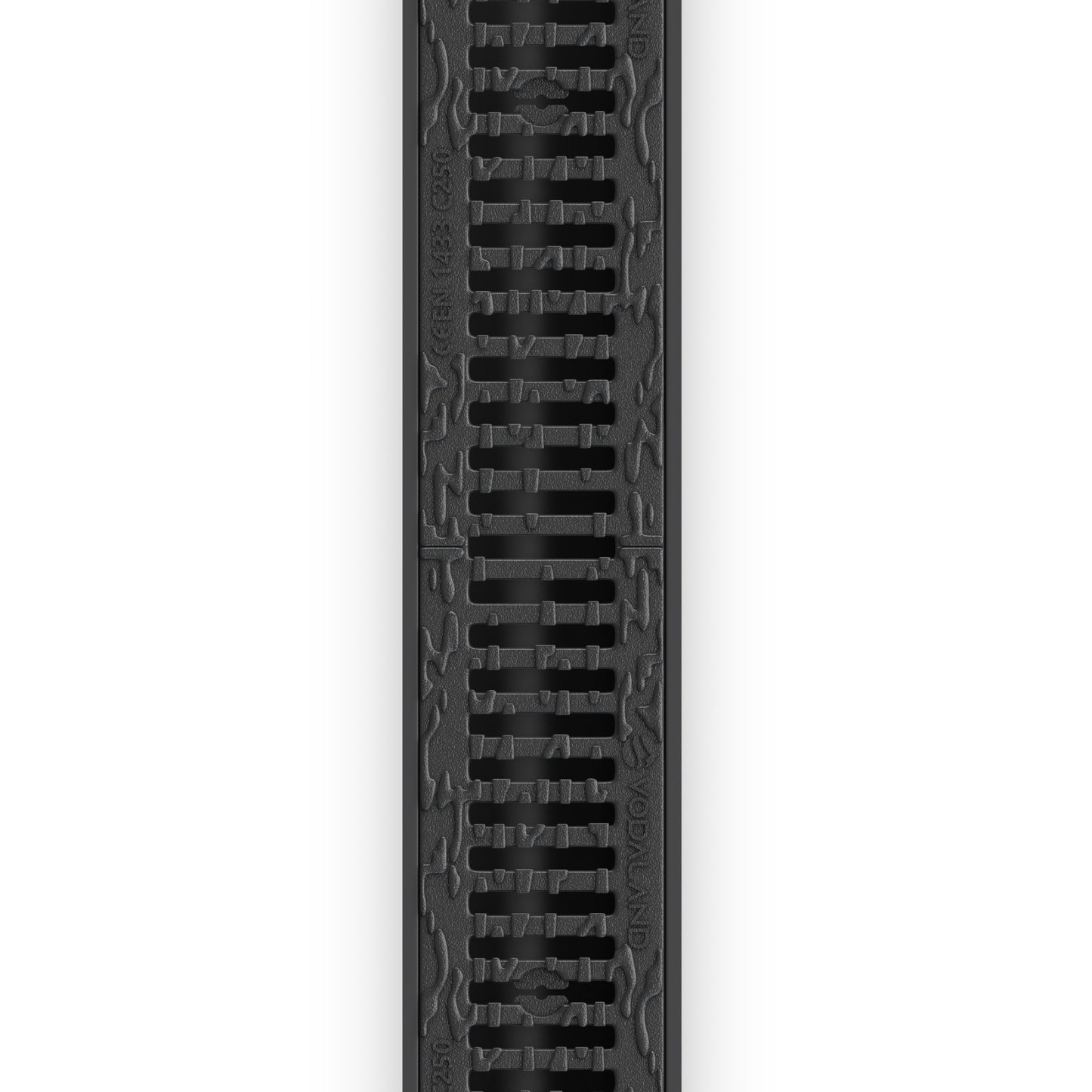

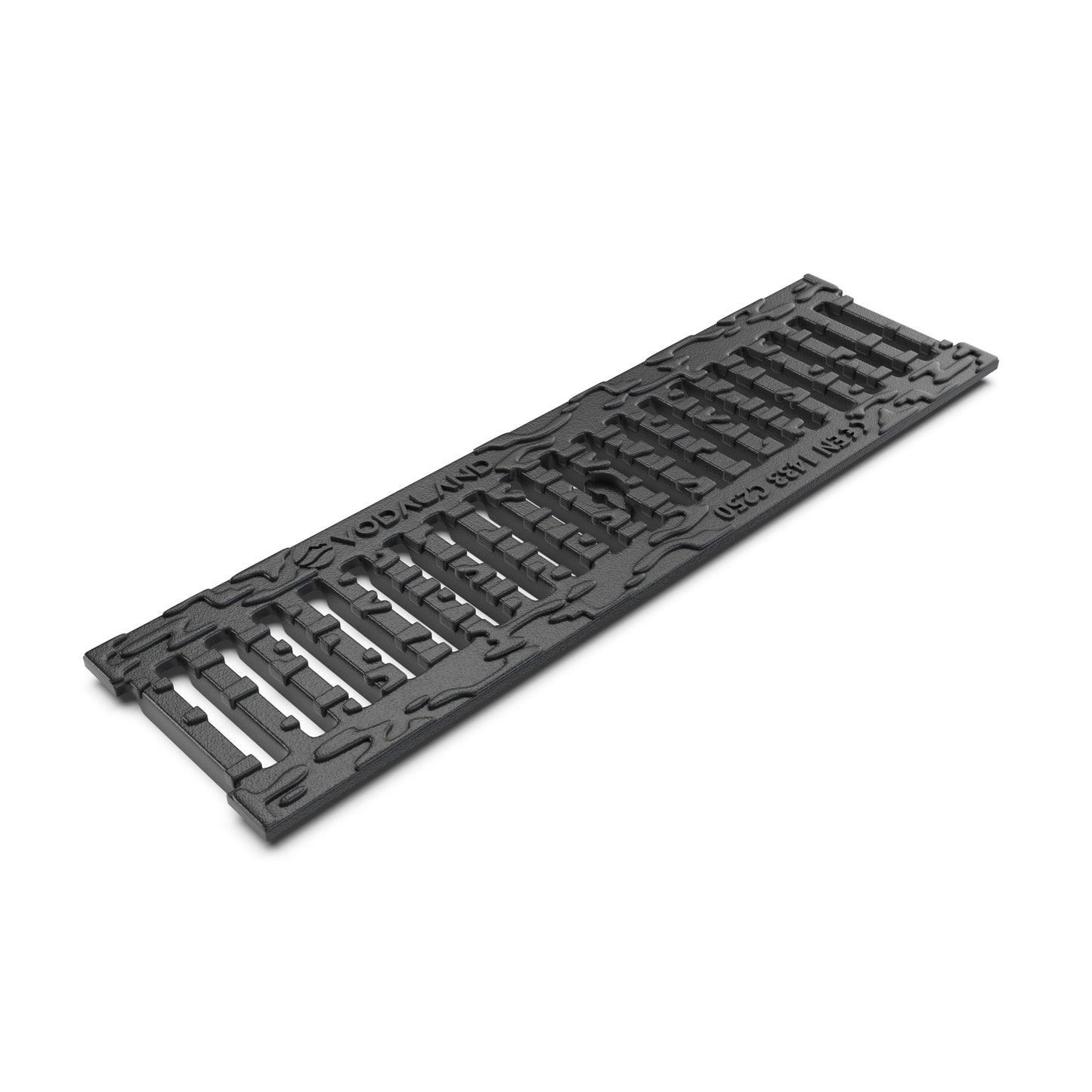

This particular channel package comes with 2 ductile cast iron grates (Load class C250) and is perfect for car parks and other areas with cars. The cast iron grate is Anti-Slip and provides good tyre grip. End caps are not included in the package.
