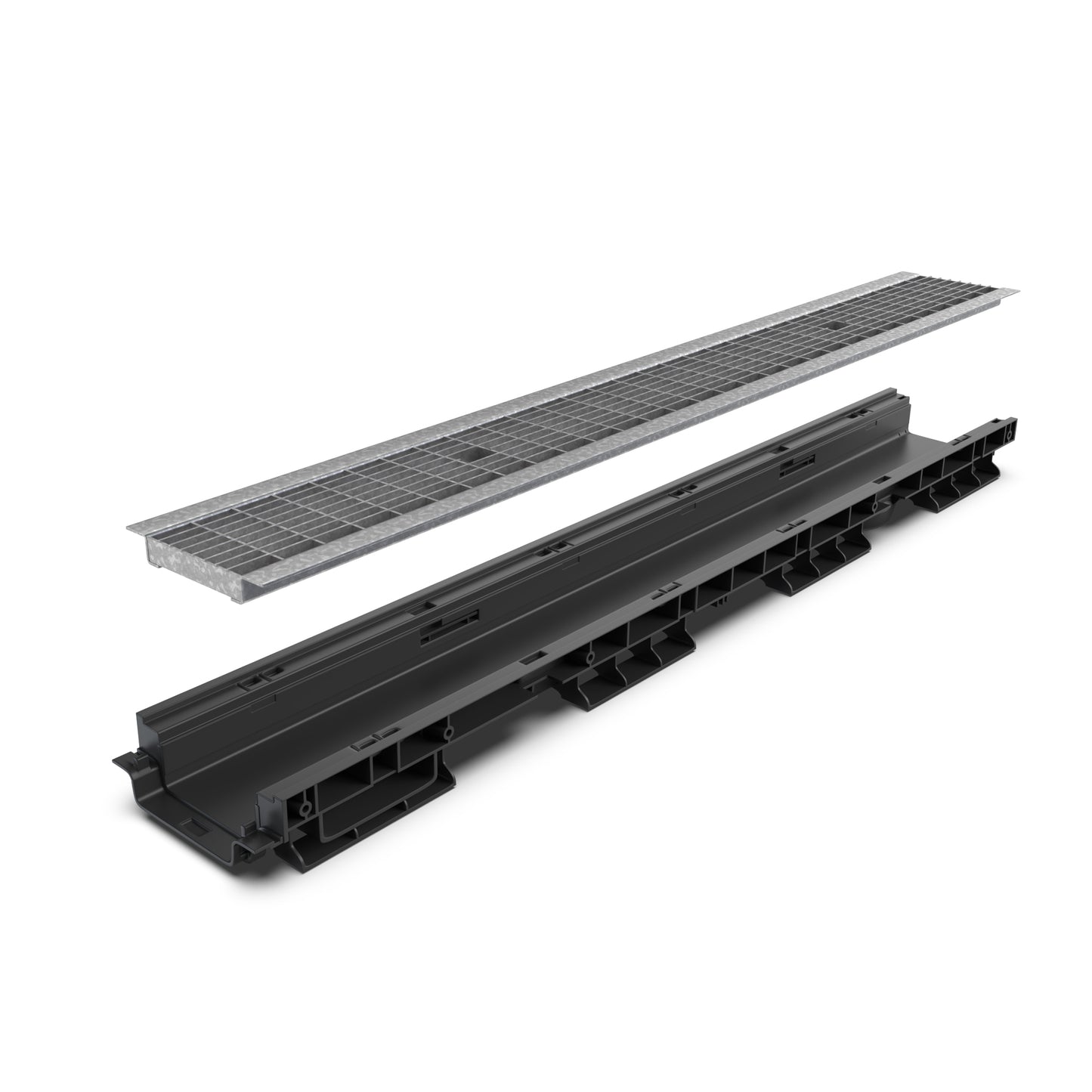

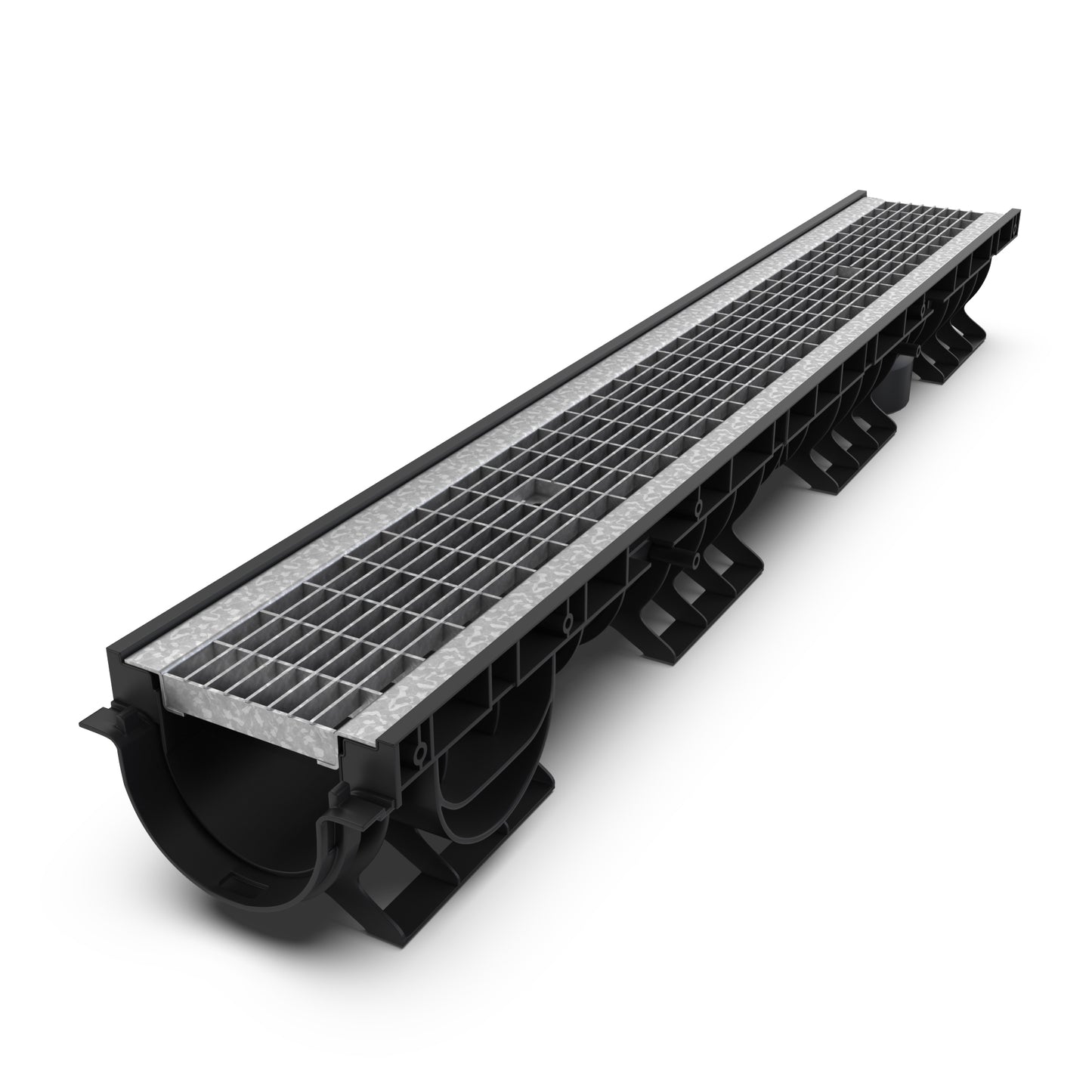

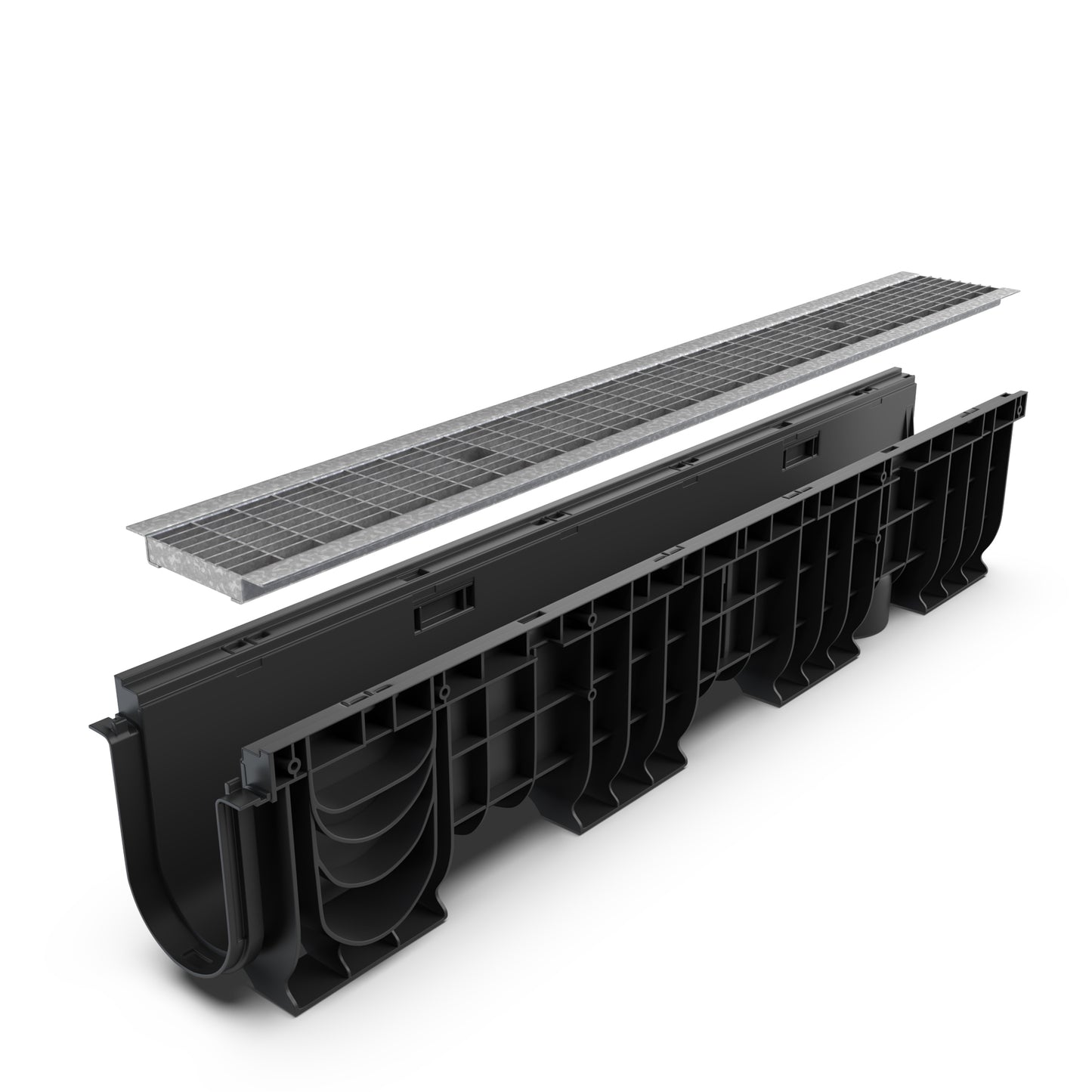

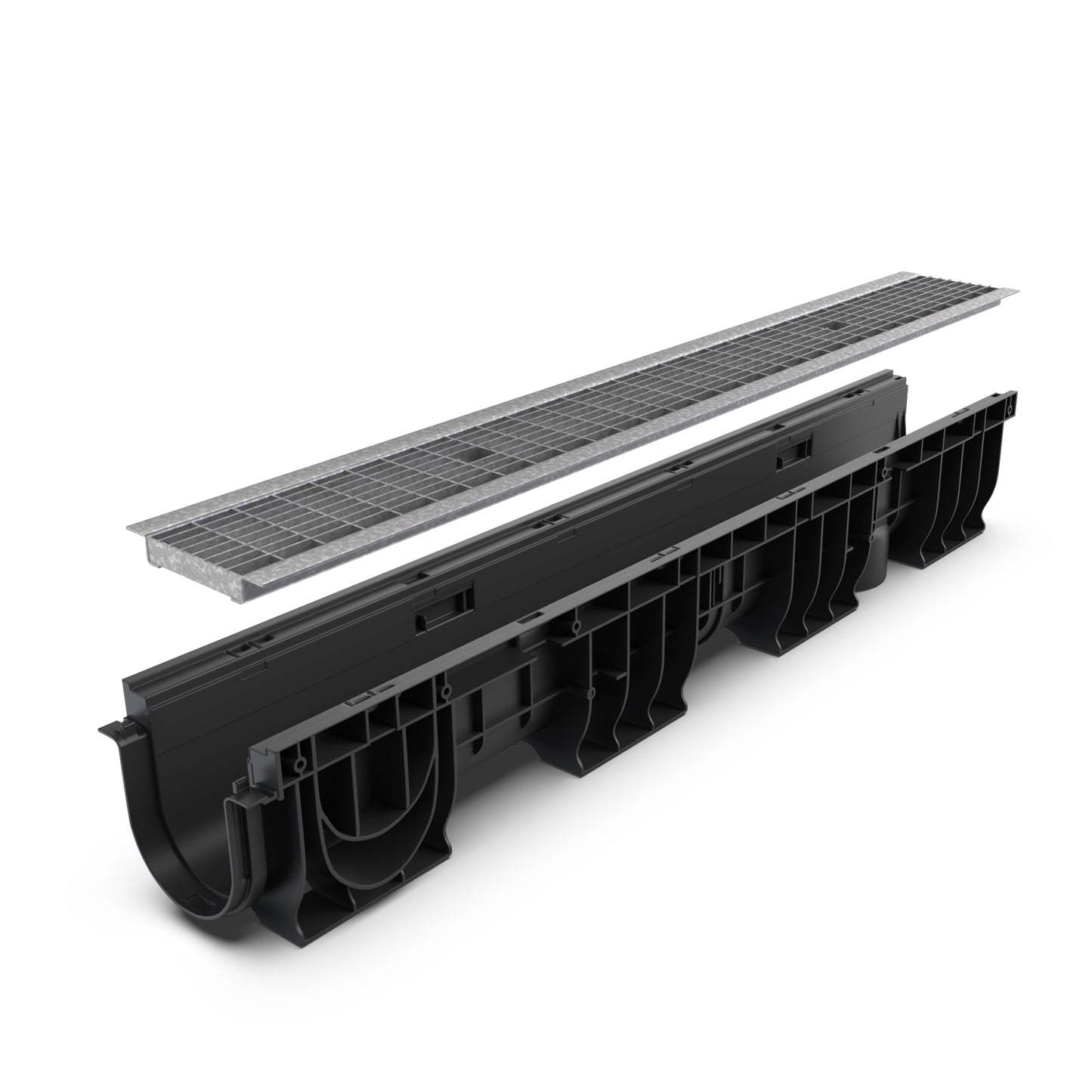

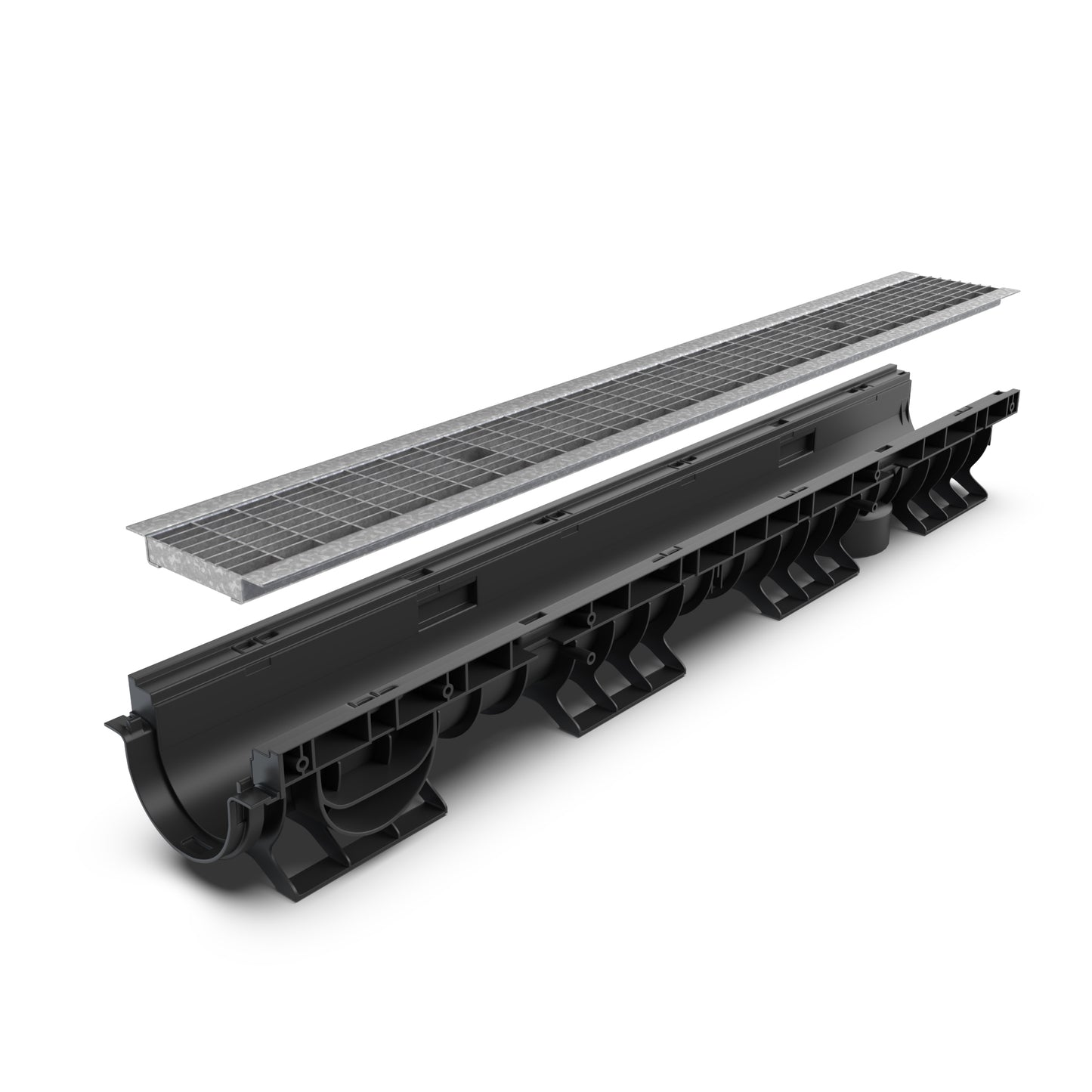

DN100 Mesh galvanised grate drainage channel package B125

DN100 Mesh galvanised grate drainage channel package B125

Regular price £106.80
Regular price Sale price £106.80
Sale Sold out
VAT included. Shipping calculated at checkout.
UK mainland delivery 1-2 days View full details
  • Specifications and Downloads
  • Product Description

Specifications and Downloads

Specifications and Downloads

• 1000mm length
• 100mm internal and 156mm external width
• Varied depth (see channel drawings in Downloads)
• External depth is specified in channel drawings in Downloads below
• Polypropylene plastic channel and galvanised steel grate
• Easy and secure "clip" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Vehicle load (B125) - suitable for cars and driveways



Included in package:

• Channel drain(s) of desired depth

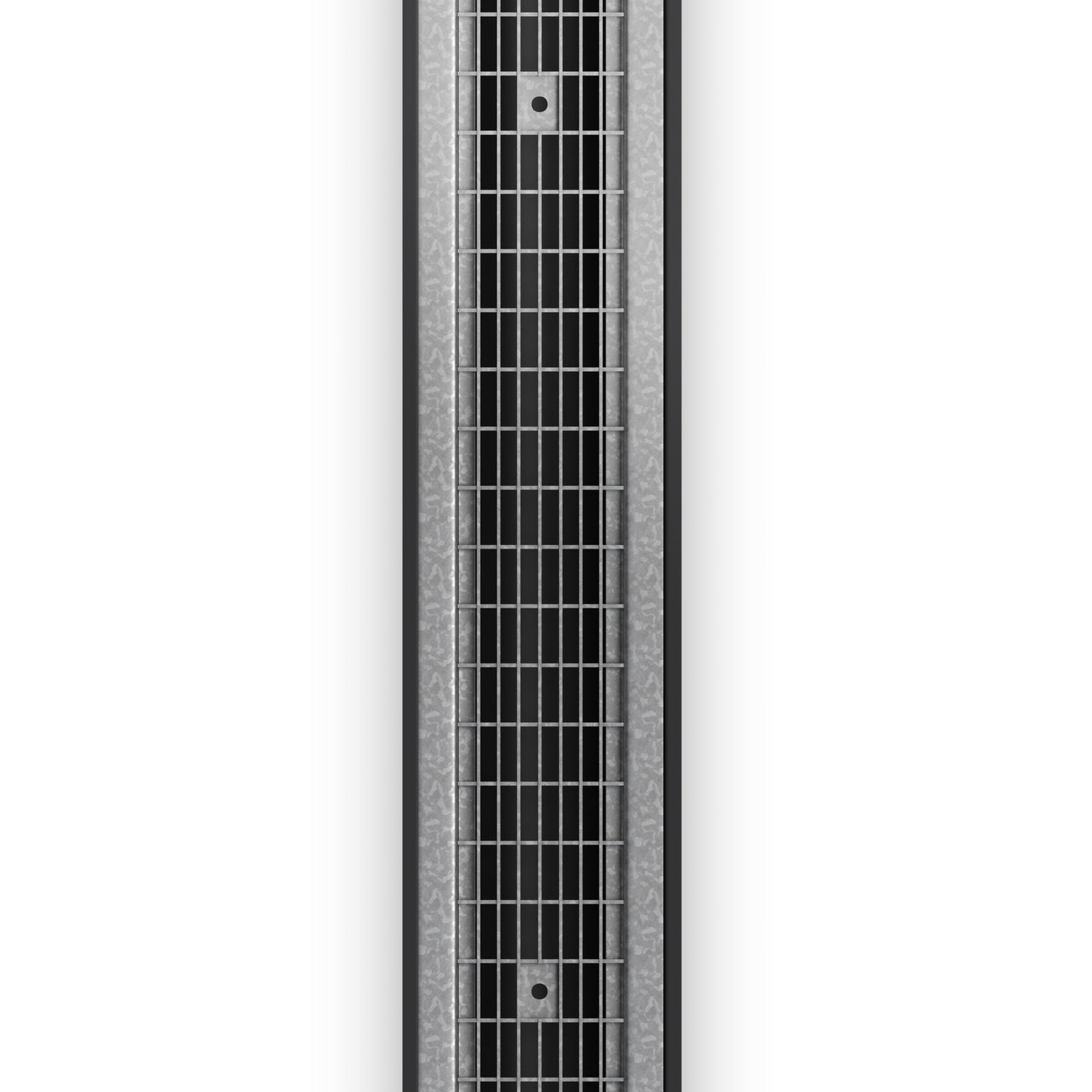

• 1 mesh galvanised steel grate, B125 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)

  • Neutral channel drawing pdf
  • Neutral channel drawing cad
  • Sloped channel drawing pdf
  • Sloped channel drawing cad
  • Mesh galvanised steel grate pdf
  • Mesh galvanised steel grate cad

Product Description

Product Description

Vodaland offers a unique channel drain option with unparalleled quality and efficiency characteristics. Our BASE DN100 channels are made of 100% recycled polypropylene plastic and come in two configurations: channels with 1% built in slope or neutral 0% slope.

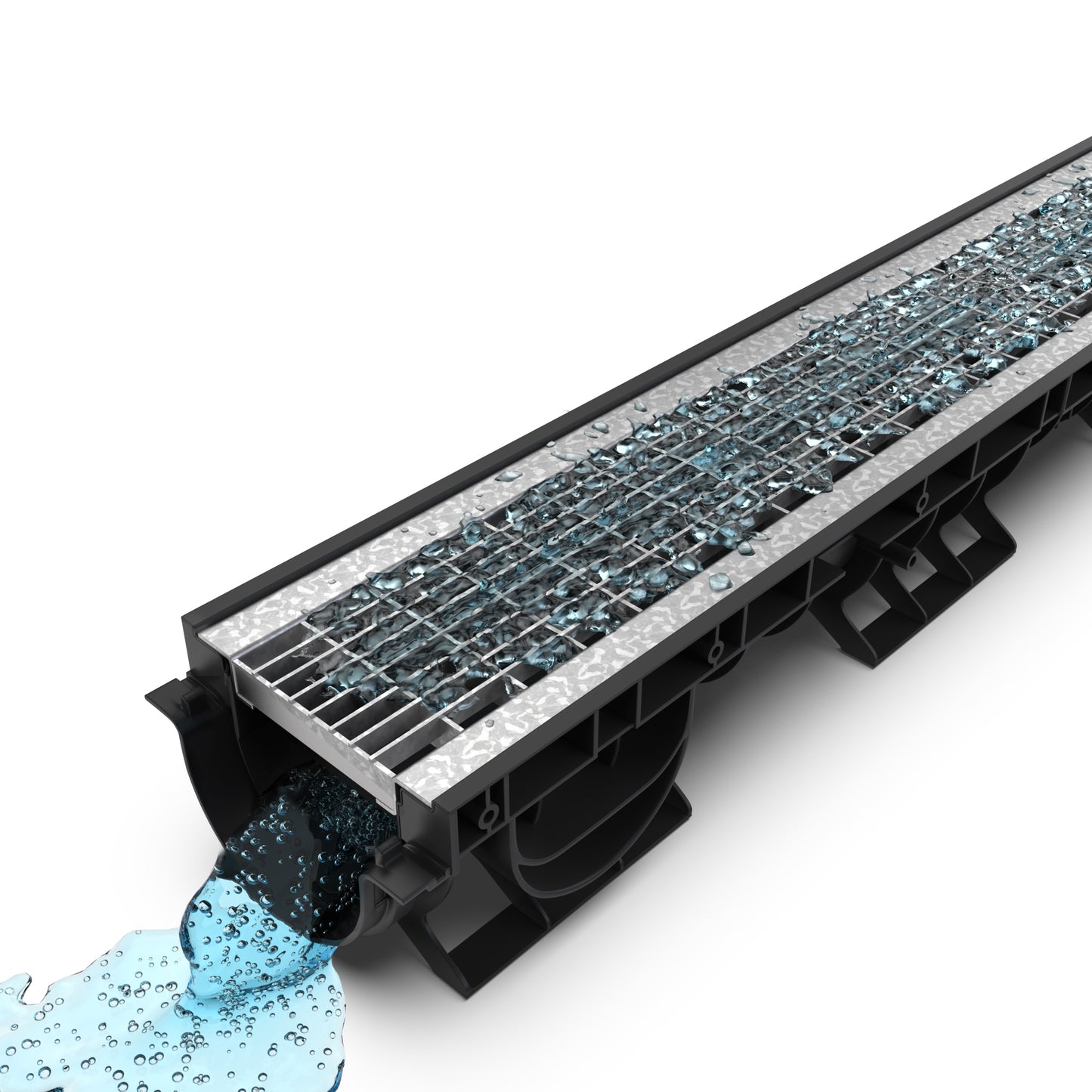

Our sloped channels will easily replace similar solutions made of plastic, polymer concrete and concrete. Due to its light weight and outstanding water flow characteristics it is one of our most versatile products. Each channel has 90-degree connection options, bottom outlet, and easy "clip" and lock connection between channels.

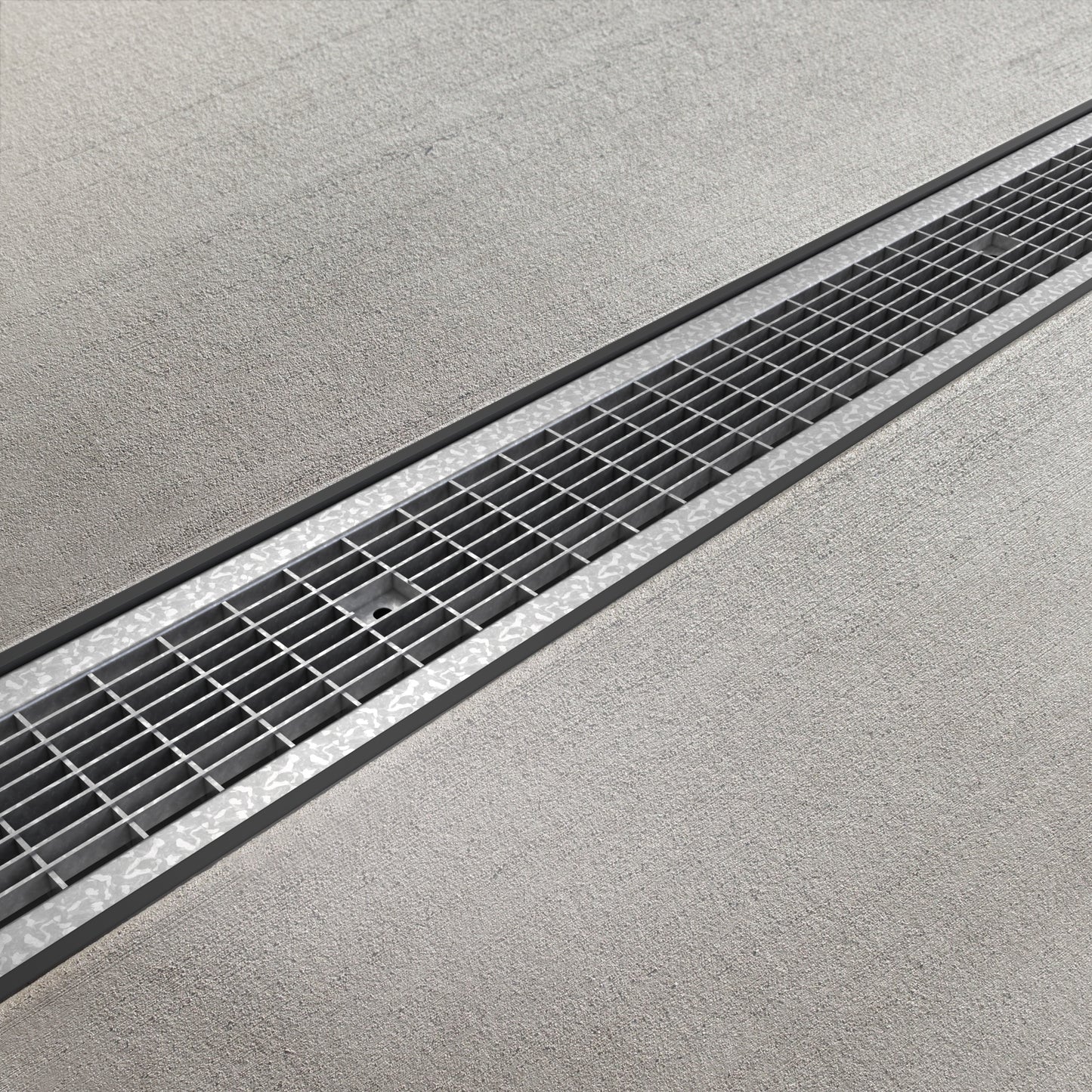

This particular channel package comes with a galvanised steel mesh grate (Load class B125) and is perfect for light vehicle loads, driveways, garages and more. End caps are not included in the package.
