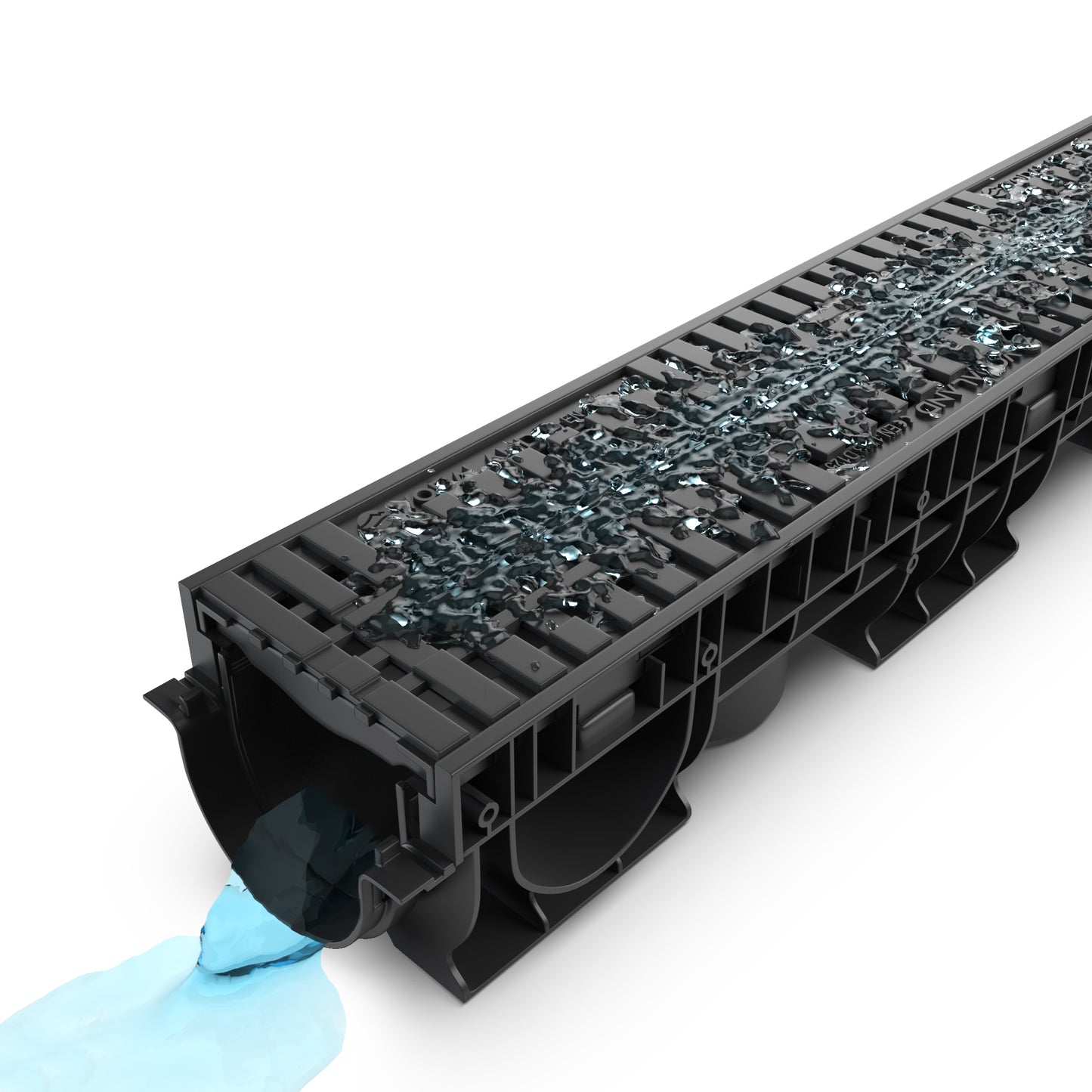

DN100 HeelSafe plastic grate B125 drainage channel
DN100 HeelSafe plastic grate B125 drainage channel
- Modern HeelSafe plastic grate
- B125 - for driveways, garages and more
- 135mm external depth
- More information below
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 100mm internal and 156mm external width
• 86mm internal and 135 external depth (see channel drawings in Downloads)
• Polypropylene plastic channel and plastic HeelSafe grate
• Easy and secure "clip" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Light vehicle load - B125. Suitable for driveways, garages, and light car traffic
Included in package:
• Channel drain(s)

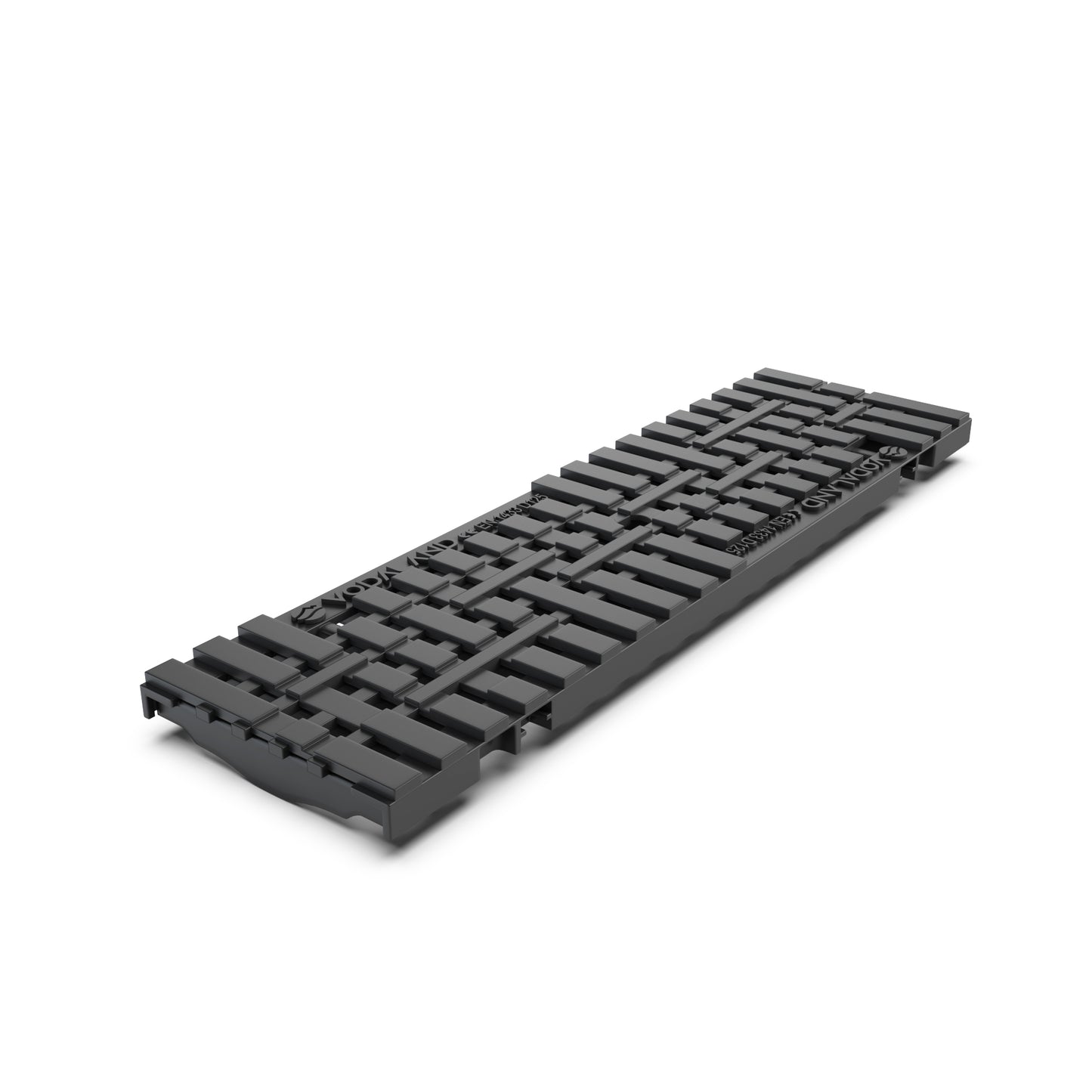

• 2 plastic HeelSafe grate, B125 per channel
• 4 bolt-less clips per channel
• End caps are NOT included(add to cart from list below or in DN100 channel accessories in menu)
• For 135mm deep channel use 120mm end cap
Product Description
Product Description

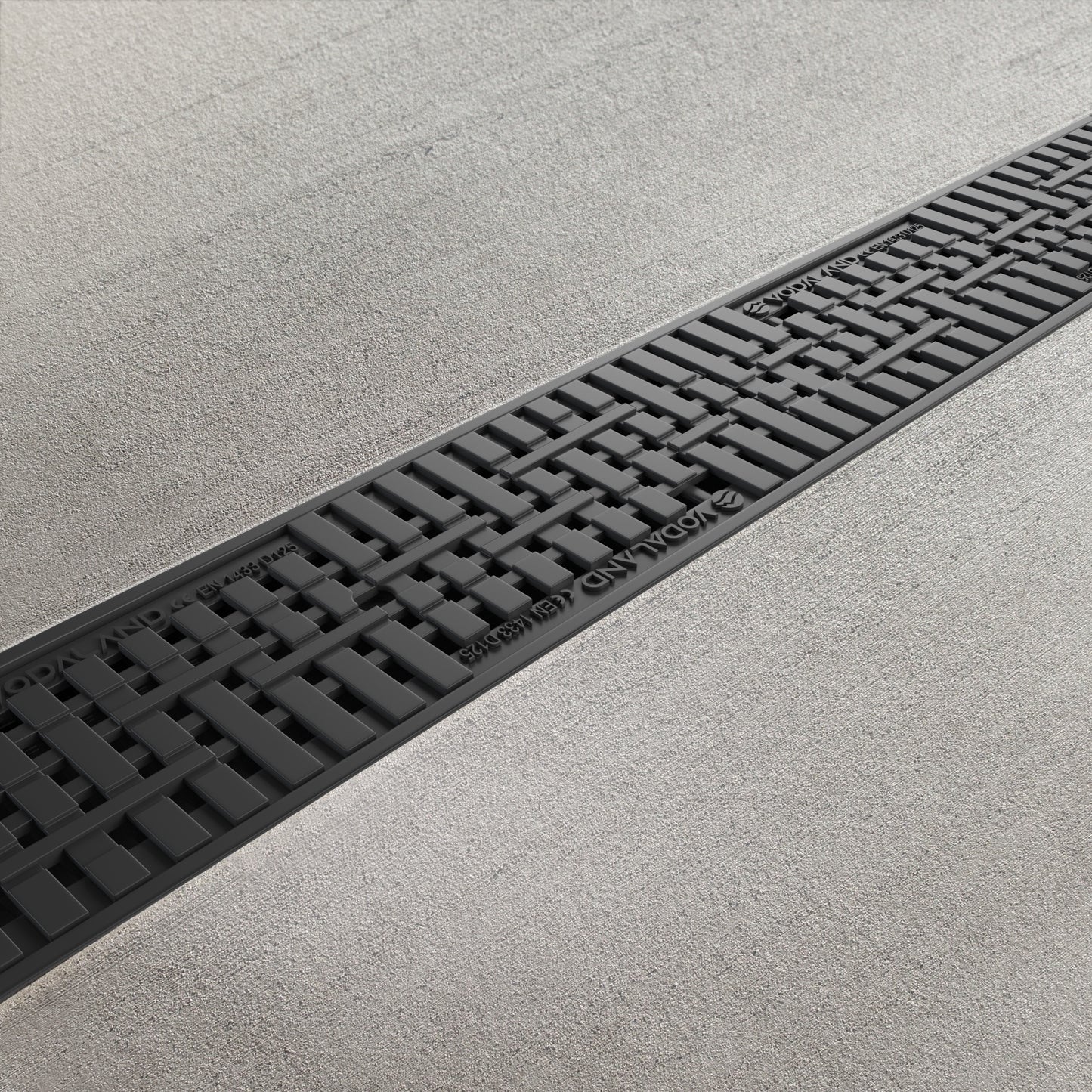

Vodaland's state of the art DN100 channel drain with HeelSafe plastic grate designed for driveway and light car traffic. This drainage channel features a unique & modern design and offers unparalleled quality and technical features. This is one of the highest quality and most versatile B125 plastic drainage channel system in the UK.

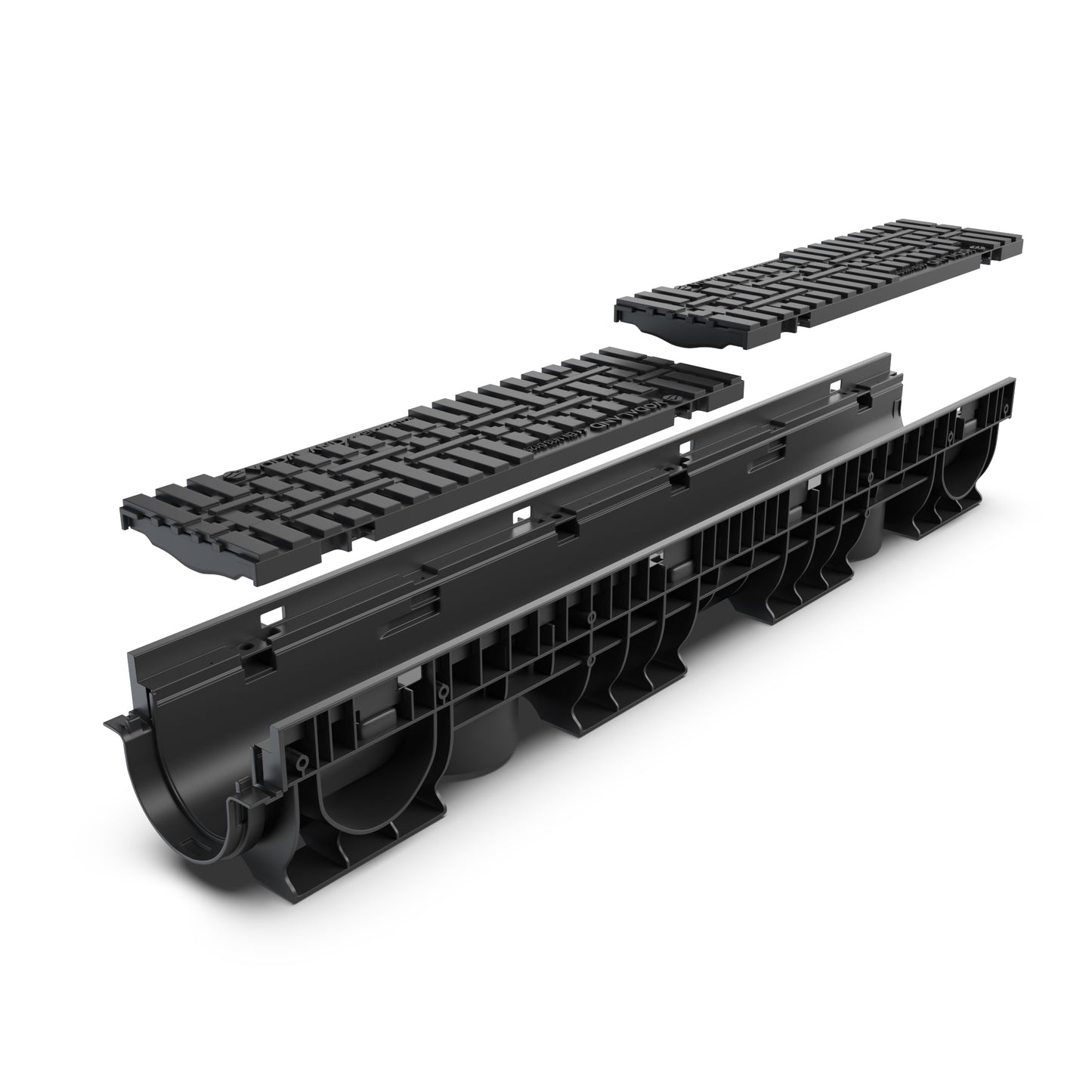

The channel has a 120mm internal depth and several 90-degree connection options, bottom outlets, and easy "clip" and lock connection between channels. Grates are secured via bolt-less connection and present a seamless look.
This particular channel package comes with 2 HeelSafe plastic grates (Load class B125) and is perfect for driveways and light car traffic. The grates are secure but can be removed for maintenance. End caps are not included in the package.
