Ideal choice for food processing and storage areas, breweries, distilleries, chemical and food handling.
Made from 304 grade stainless steel and can be manufactured from 316 grade steel upon request (contact us to learn more)
Highly resistant to corrosion and chemicals

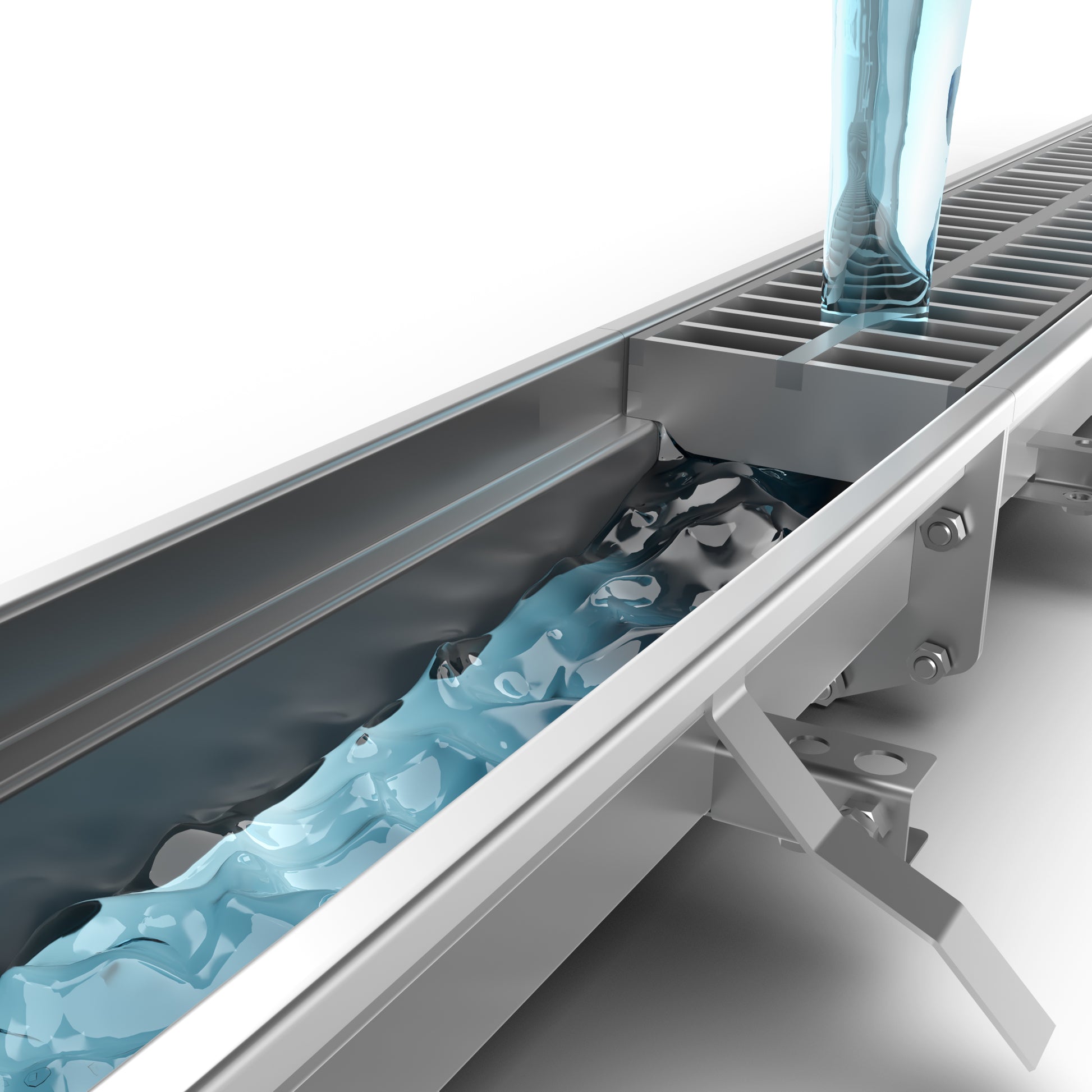

Built in slope of 0.5% and V-shaped bottom features significantly improve water flow
Channel drain is self cleaning
This system is rated load class B125

INCLUDED IN YOUR PURCHASE:

Stainless steel modular channel - your chosen quantity
Stainless steel slotted grates - 1x per 1 unit of channel
Stainless steel bolts and nuts
Please note that we will ship channels starting with the shallowest ones (see drawings in specifications tab). If you have a need for a different configuration please contact us and we will do our best to accommodate you.

RECOMMENDED PARTS:

Stainless steel end cap (closed)
Stainless steel end cap with outlet

Channel drawing PDF
Channel drawing DWG

Product Description

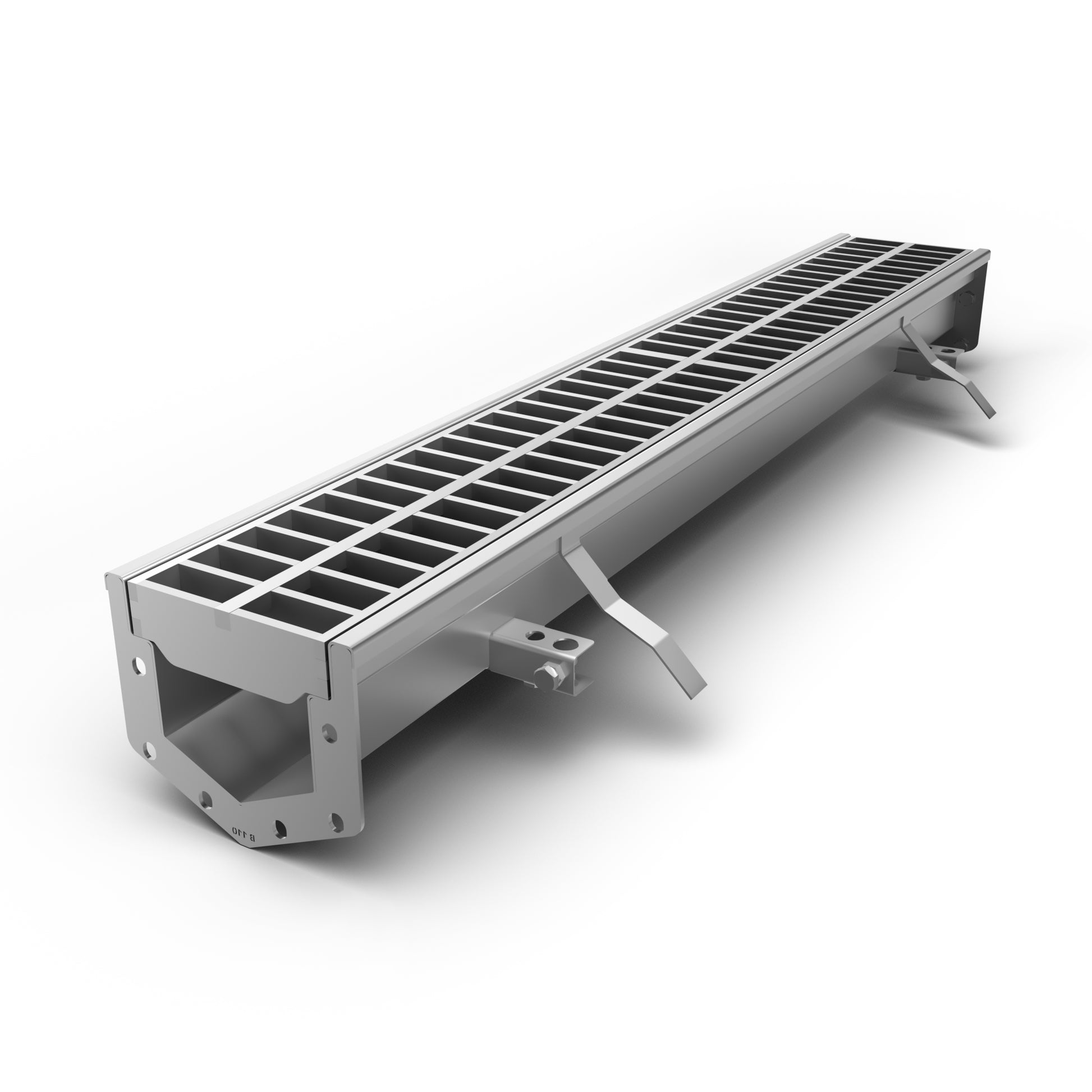

Vodaland Modular LD100 STAINLESS channel drain system is made of 304 stainless steel and is designed for applications such as breweries, distilleries, food processing, and much more. Each channel comes with slotted, anti-slip, stainless steel grating, the system is rated load class B125 and can safely handle medium to heavy-duty loads. Each channel features a built-in fall-slope of 0.5%, which greatly improves the flow of water and efficiency of our modular system.

The entire system can be manufactured from 316 stainless steel upon request. Contact us if you need any assistance or a bespoke solution for your project.

Your cart is empty

My Bag 0 item

Subtotal

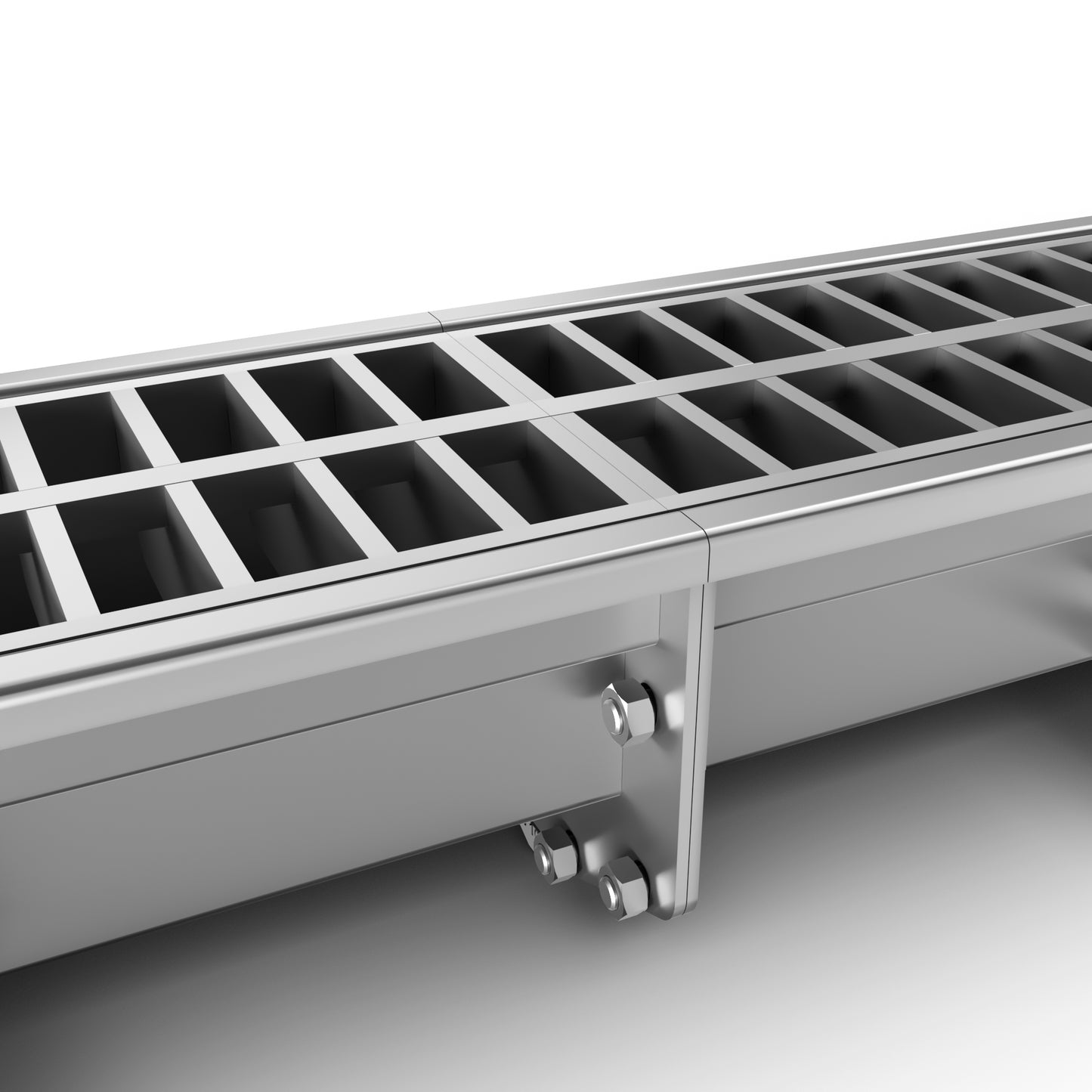

Modular LD100 stainless steel channel drain with slotted grate
