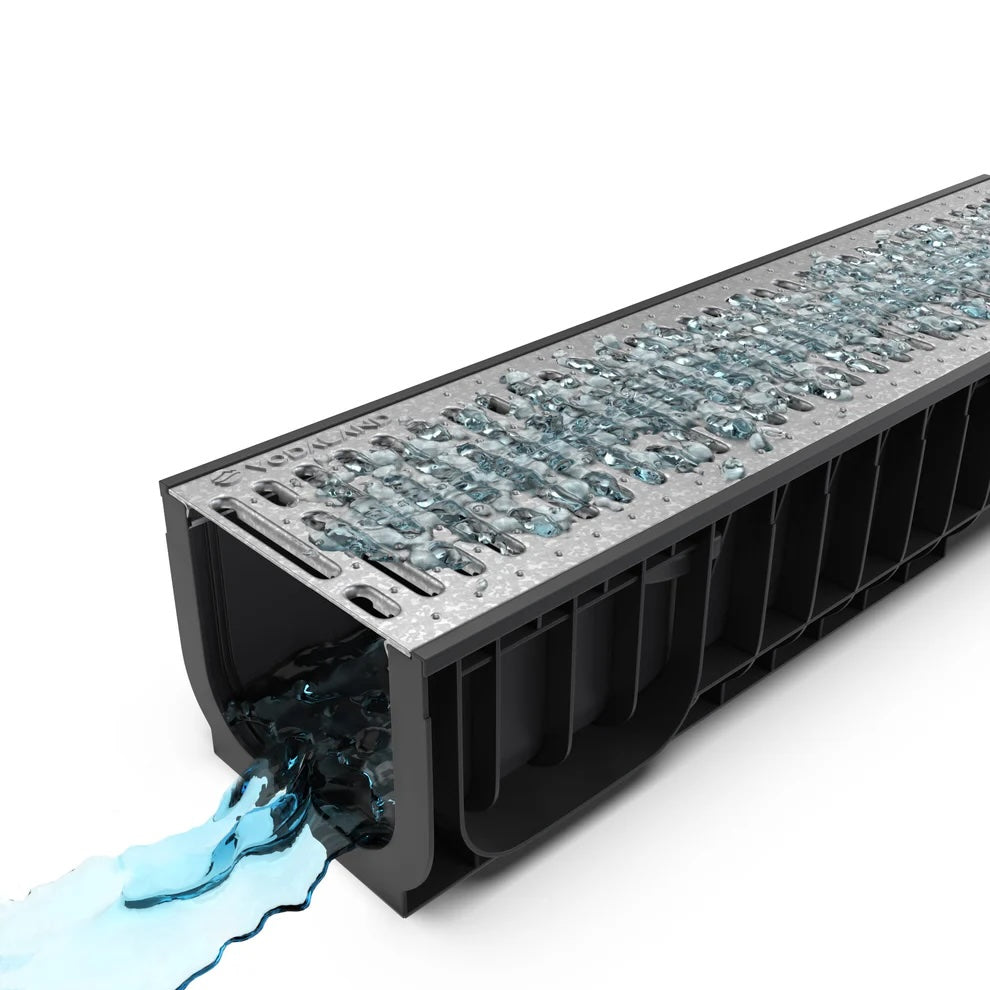

DN200 Galvanised steel grate drainage channel package
DN200 Galvanised steel grate drainage channel package
- Polypropylene channel & galvanised grate
- High capacity 200mm (8 inch) wide channel
- 1000mm length
- Load class A15
- See more information below
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 200mm internal and 260mm external width
• 200mm depth (see channel drawing in Downloads)

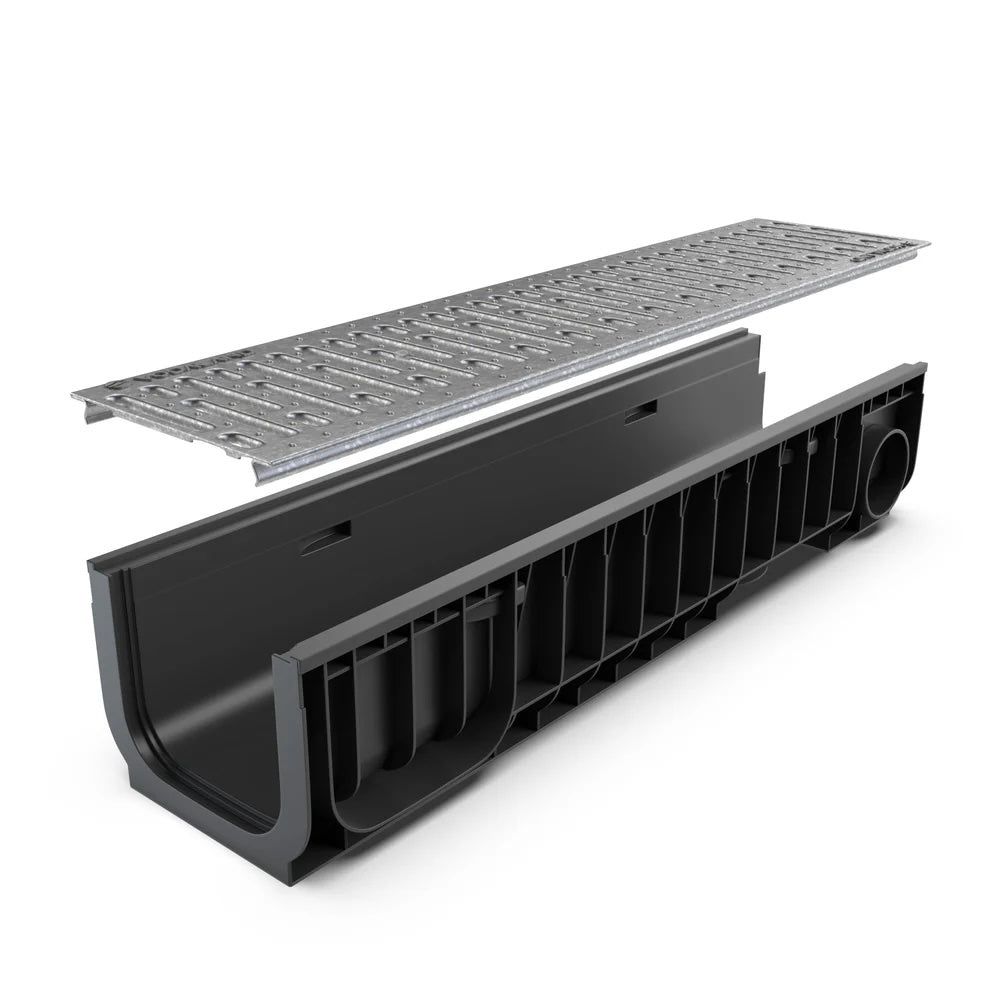

• Polypropylene plastic channel and galvanised steel grate

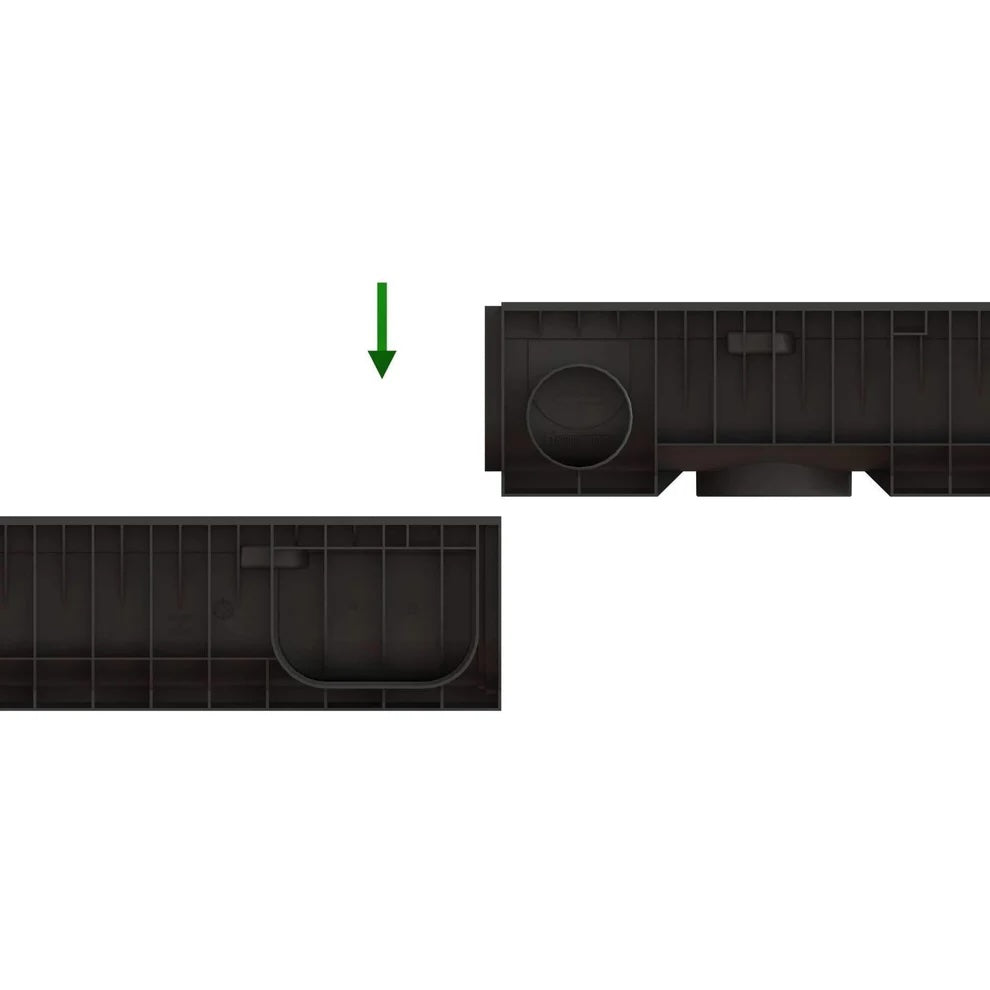

• Easy and secure "clip" connection between channels

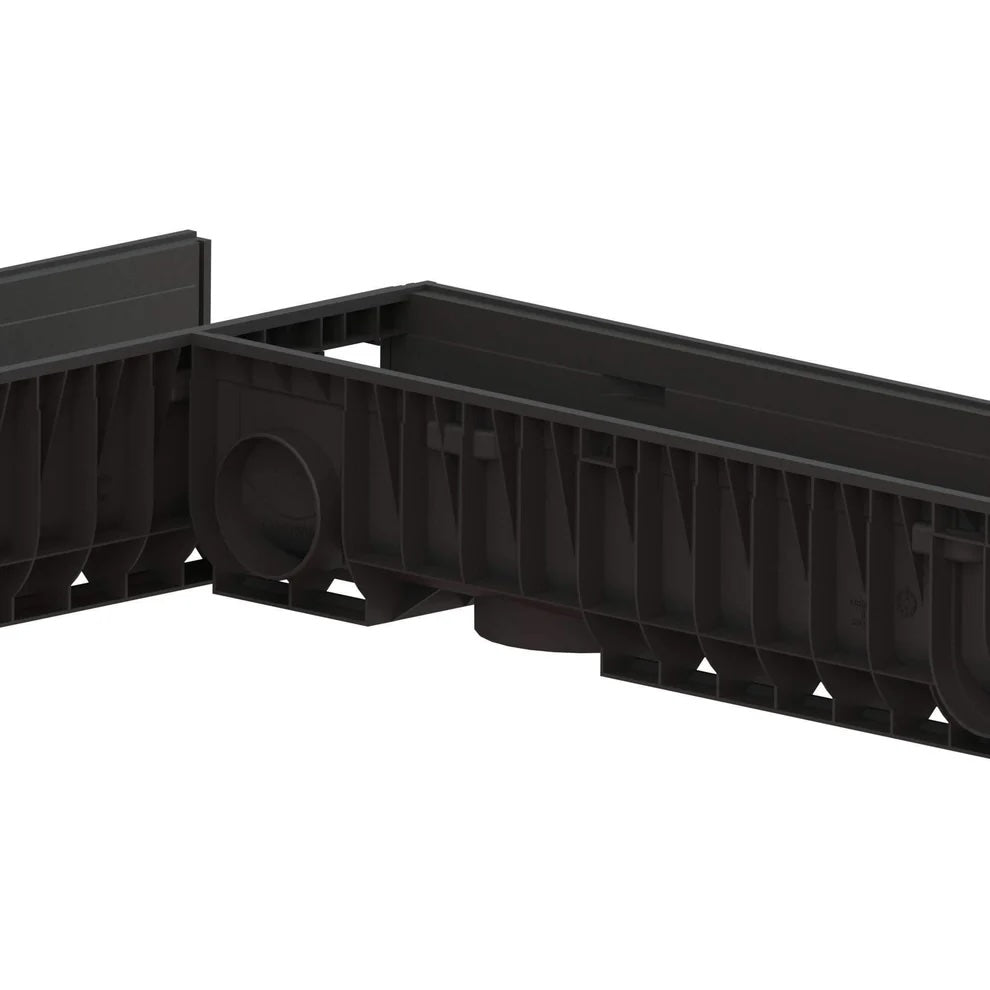

• 90-degree connection available
• Each channel has a 110mm and 160mm vertical outlets
• Pedestrian load (A15)
Included in package:
• Channel drain(s)
• 1 Galvanised steel slotted grate, A15 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN200 channel accessories in menu)
Product Description
Product Description
Vodaland BASE DN200 channels are made of 100% recycled polypropylene plastic. These are sturdy and lightweight making them easier to work with than polymer concrete counterparts which means more savings.
Each channel has 90-degree connection options, bottom outlet, and easy "click" and lock connection between channels.

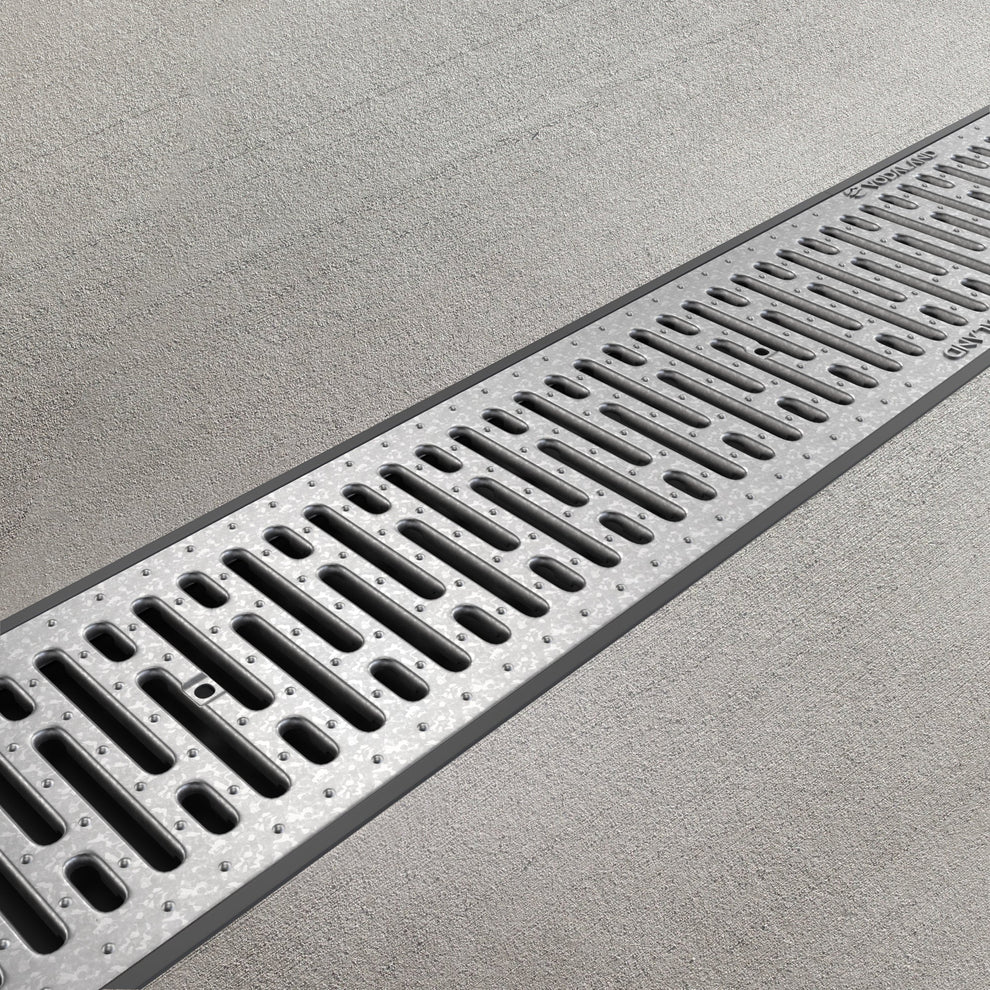

This particular channel drain package comes with galvanised steel slotted grate (Load class A15) and is perfect for pedestrian areas, pavements, parks and other light duty areas. End caps are not included in this package.
