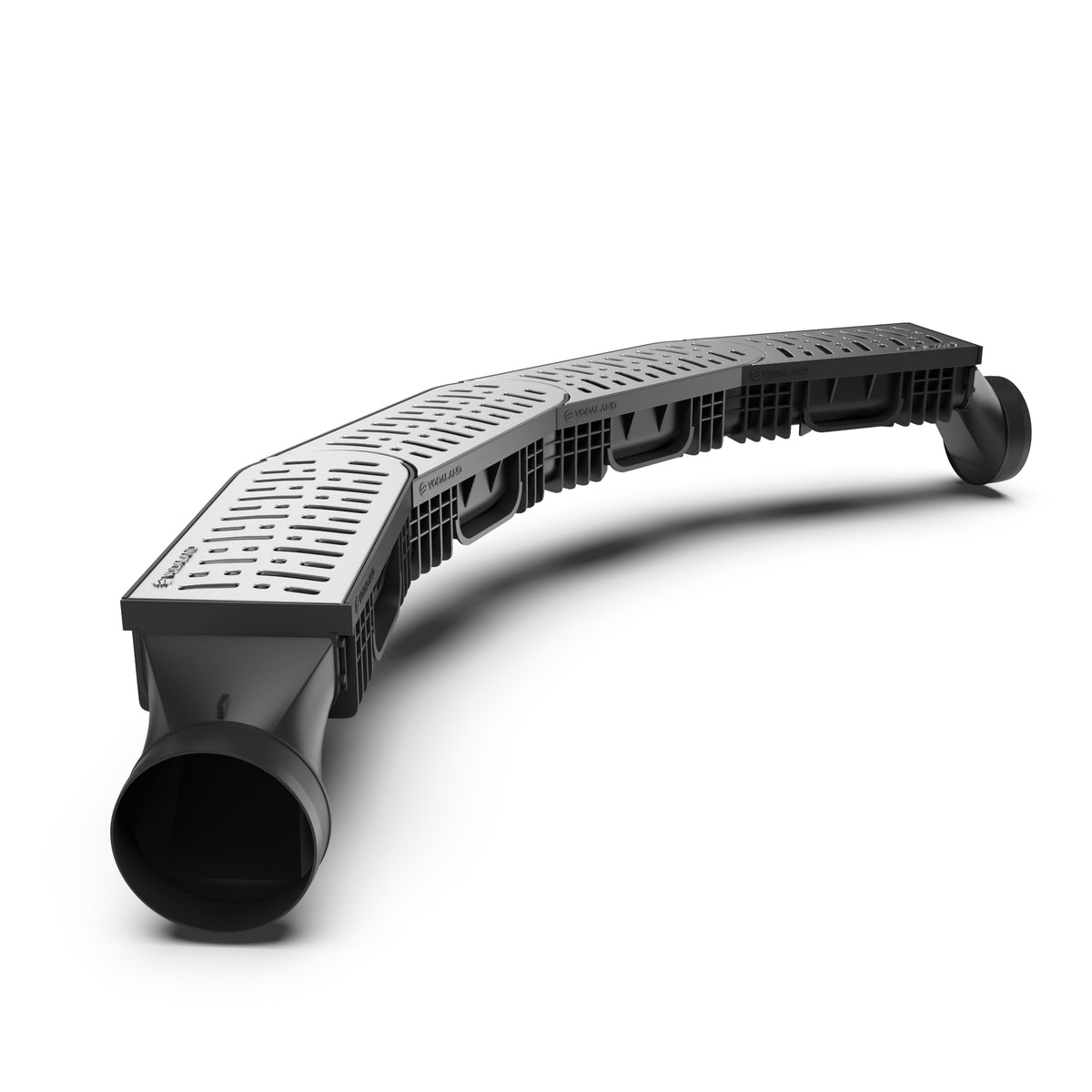

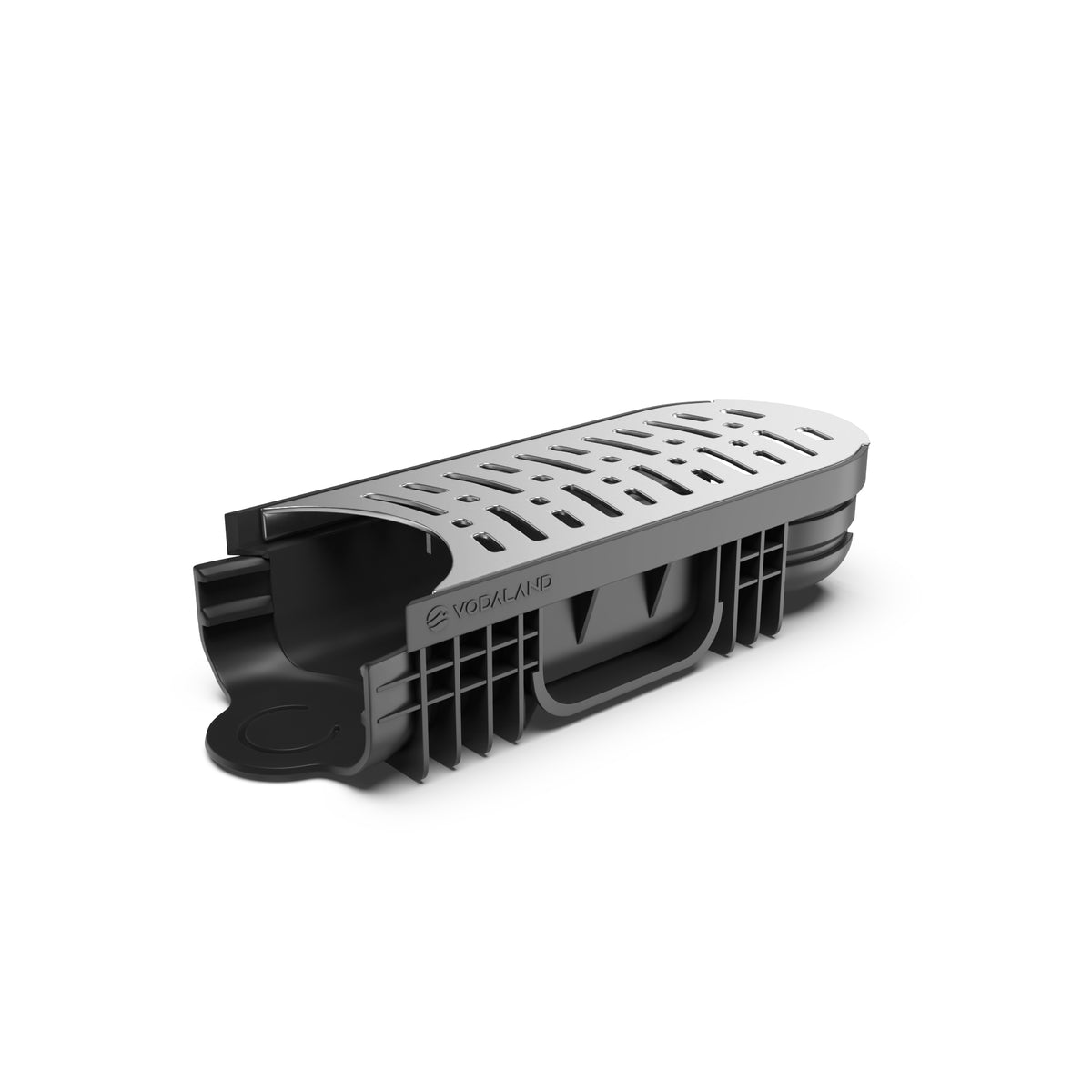

EASY 2 Radius Channel Drain Stainless Steel Grate
EASY 2 Radius Channel Drain Stainless Steel Grate
- Up to 22 degree turns with each unit
- Polypropylene plastic with Stainless Steel grate
- Load class A15
- Compatible with EASY 2 channel drain
- To extend 1 metre set, add R2 extension units, not additional 1 metre sets
- Up to 22 degree turns with each unit
- Polypropylene plastic with Stainless Steel grate
- Load class A15
- Compatible with EASY 2 channel drain
- To extend 1 metre set, add R2 extension units, not additional 1 metre sets
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- 100mm internal and 125mm external width
- 75mm external depth
- Polypropylene plastic channel and 304 stainless steel grate
- Easy and secure "clip" connection between channels and units
- Can create up to 22-degree turns with each unit. Four units (1 metre) - 66 degrees turns
- 110mm vertical outlet connector available
- Pedestrian load only (A15)
- Every run must start with R1 channel unit and end with R3 channel unit. Can have as many R2 units in between as needed.
- It's highly recommended to apply sealant to every unit (between R1, R2, and R3) to ensure watertight solution
- Great for curved spaces, fountains, gardens, patios, bay windows and much more
Included in 1 metre package:
- Complete set of (1x R1 unit, 2x R2 unit, 1x R3 unit)
- Removable stainless steel gratings are included with purchase
- Note that connecting multiple 1 metre sets will not create a continuous curve when connecting R3 to R1. If you require a continuous curve choose only one 1m set and add extension units to extend the run.
- End caps and outlet connectors are not included. If you require extra end caps or outlets you may add them on this page below, in cart or in EASY accessories
Included in extension unit package:
- 1x R2 - chosen qty. Connect with other R2 units to create longer runs.
- Removable stainless steel gratings are included with purchase.
- End caps and outlet connectors are not included. If you require extra end caps or outlets you may add them on this page below, in cart or in EASY accessories
Product Description
Product Description
Introducing the NEW EASY 2 Radius channel drain with stainless steel grate, for custom curves!

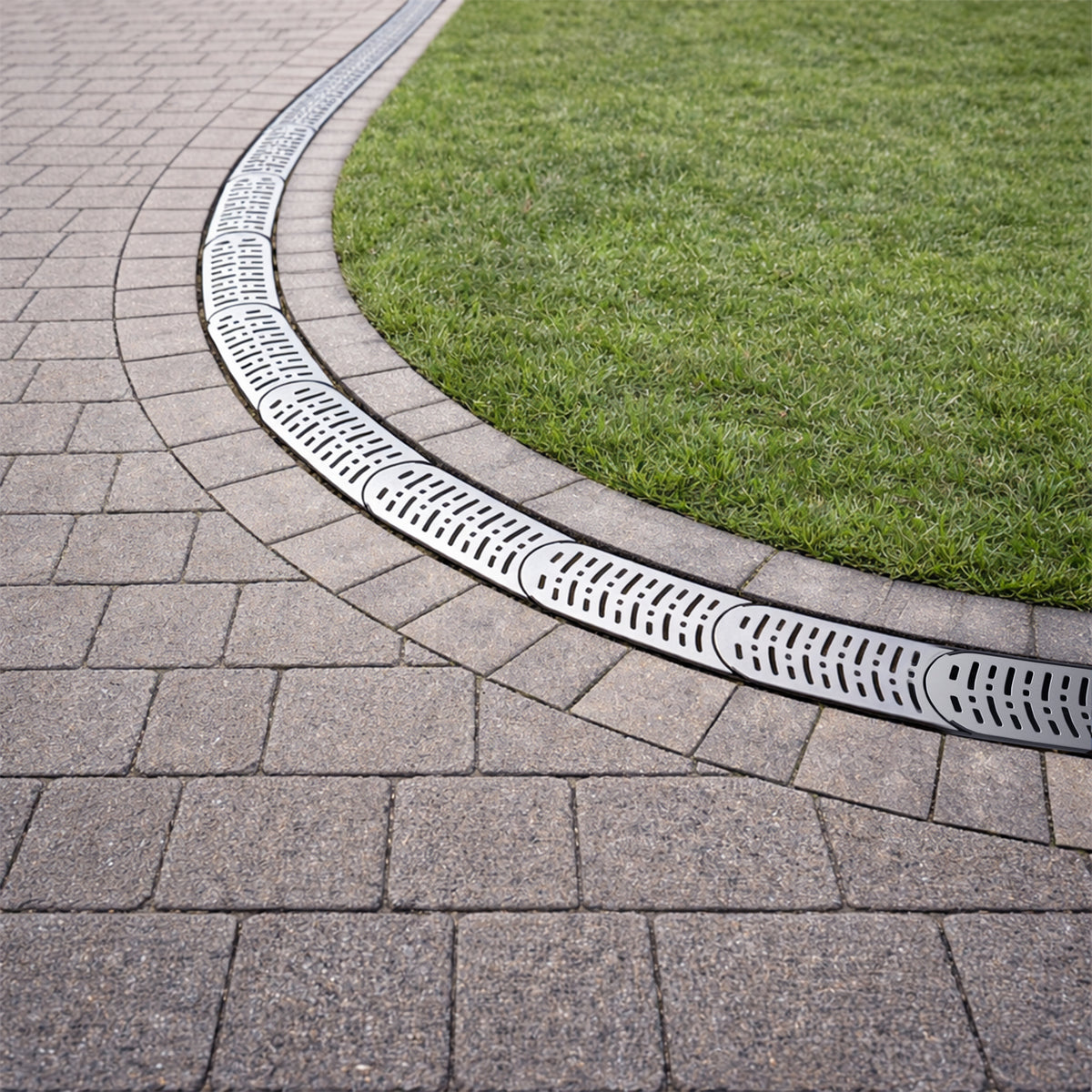

Designed and engineered with precision, the EASY 2 Radius makes curved drainage channel installation easy. Now finished with a sleek, heelsafe stainless steel grate, it brings a premium, modern look to landscaping projects, curved patios, gardens, bay windows and much more.

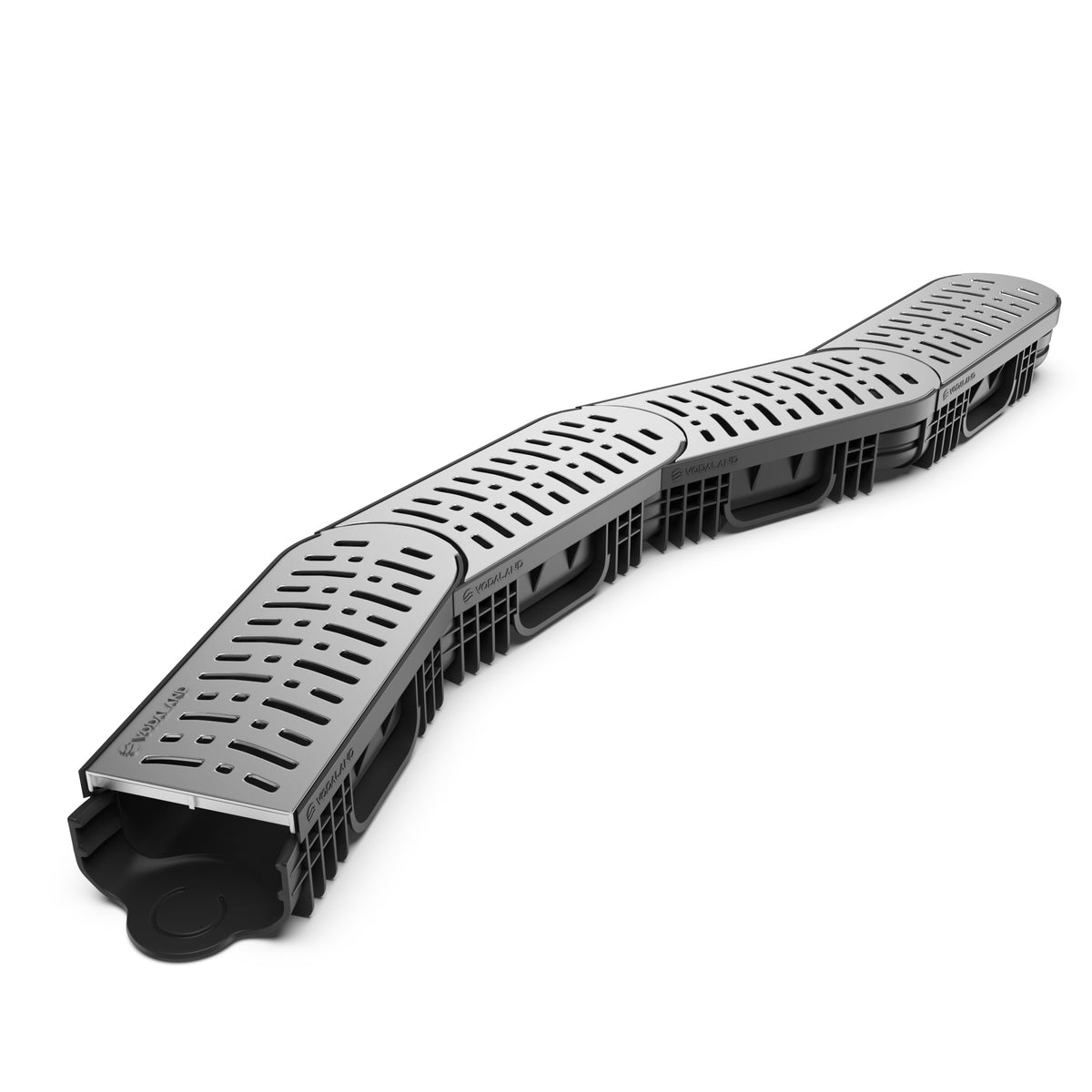

Each section turns 22 degrees in either direction, so you can create curved runs that haven't been possible before. The first of its kind in the UK, the EASY 2 Radius channel drain can be used on its own or alongside Vodaland EASY 2 channel drains. Each curved section has a 90-degree connection and a bottom outlet. It's also compatible with every EASY 2 part: end caps with and without an outlet, and the vertical outlet connector.
Load class A15: suitable for pedestrian and cycle areas.
Why stainless steel?
The stainless steel grate is durable and corrosion resistant, and its clean finish complements contemporary paving and stonework. It's ideal where the drain is on show and you want it to look as good as it performs.
Easy to assemble

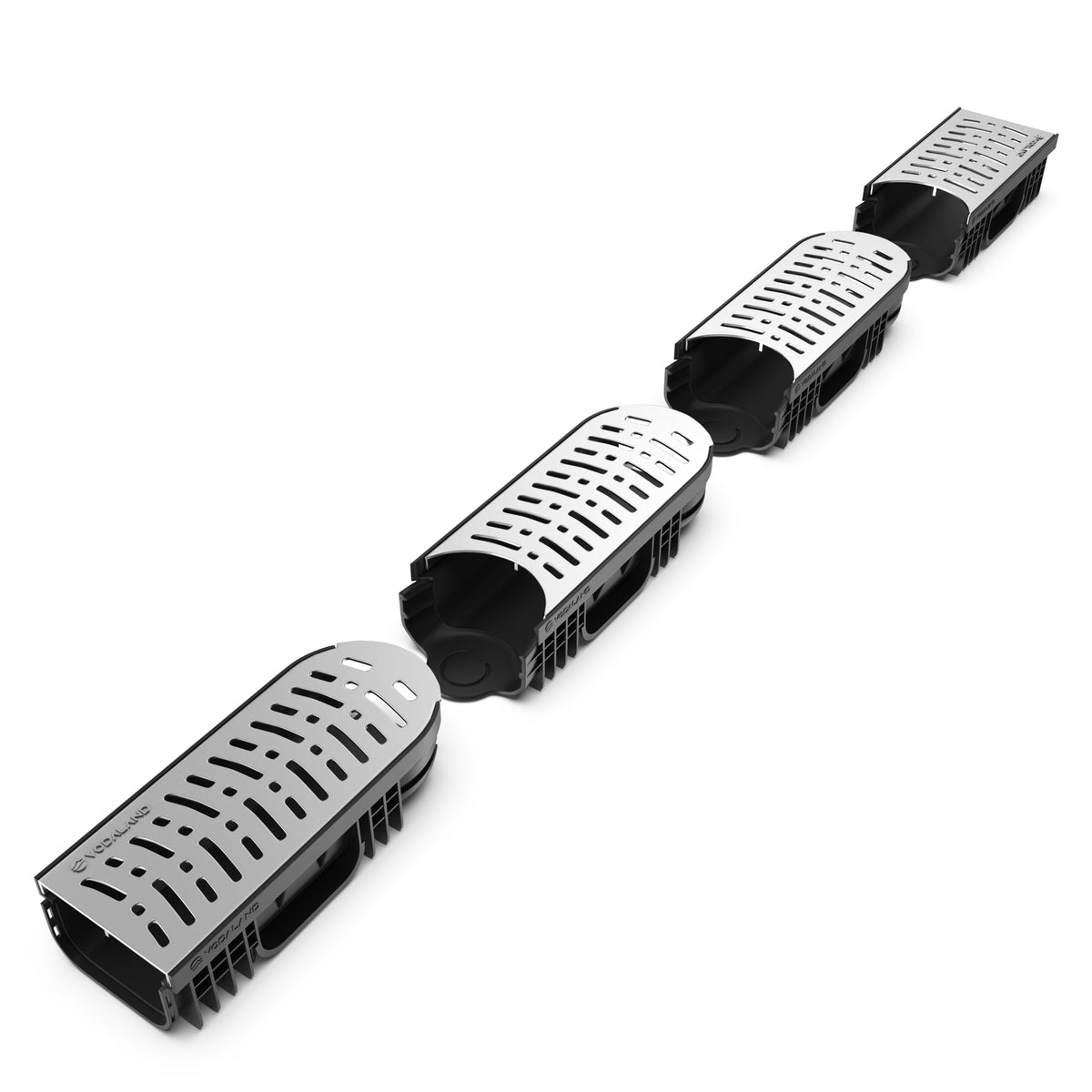

Simply snap units R1, R2 and R3 together to form a continuous run. A standard 1 metre length is made up of 1x R1, 2x R2 and 1x R3 unit.
To extend the run, add extra R2 units (sold separately).
With Vodaland's unique EASY 2 Radius channel drain, you can shape your space exactly as you imagine it.
