EASY Low plastic slot drain with 20mm upstand

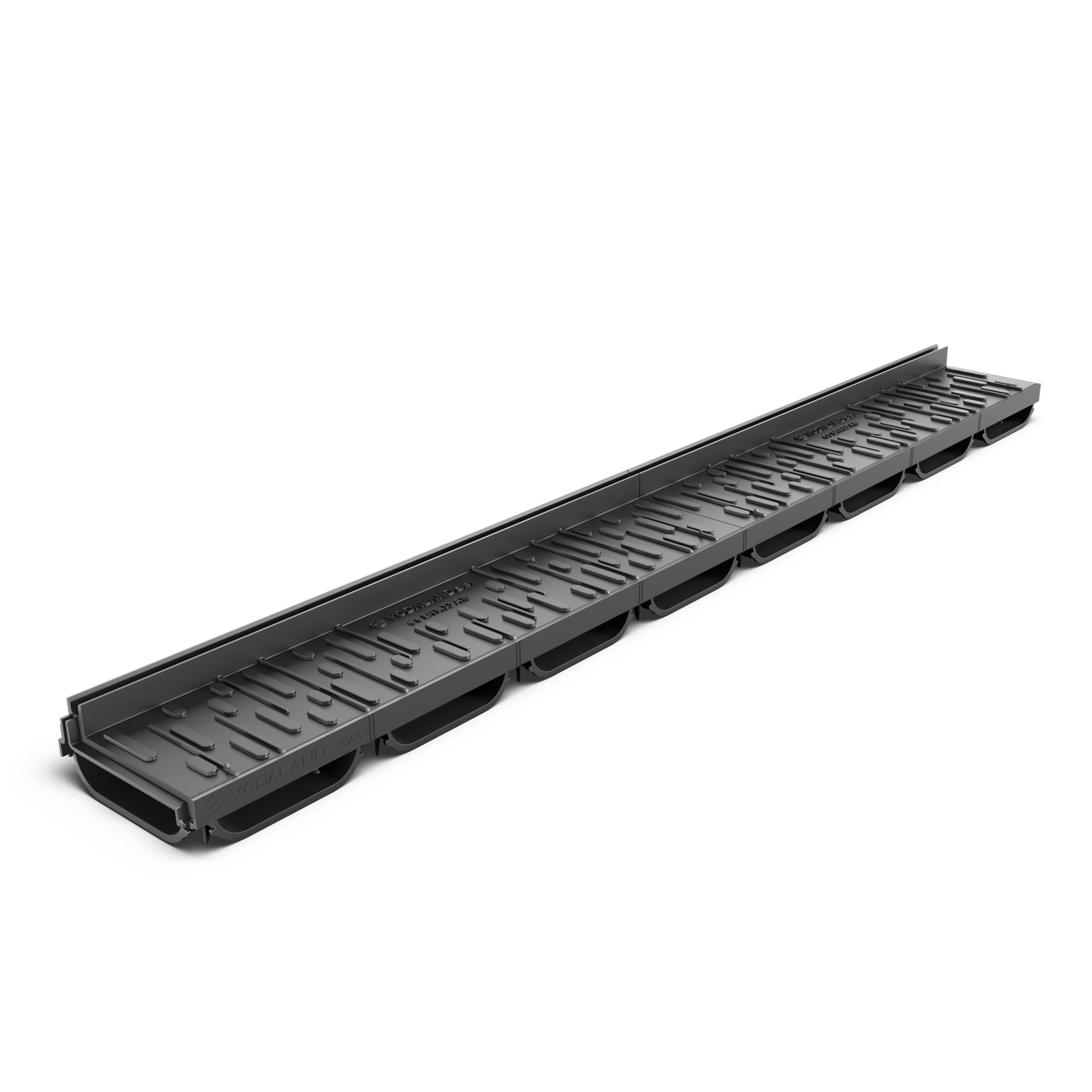

EASY Low plastic slot drain with 20mm upstand
- 20mm upstand height
- Suitable for tile and paving up to 20mm
- Load class A15
- For patios, pedestrian areas, pavements and thresholds
- Polypropylene channel & plastic slot
2-3 working days delivery
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- 1000mm length
- 100mm internal and 100mm external width
- 7mm slot width
- 18mm internal and 40mm external channel depth
- 20mm upstand height
- Polypropylene plastic channel and upstand
- Easy and secure "click" connection between channels

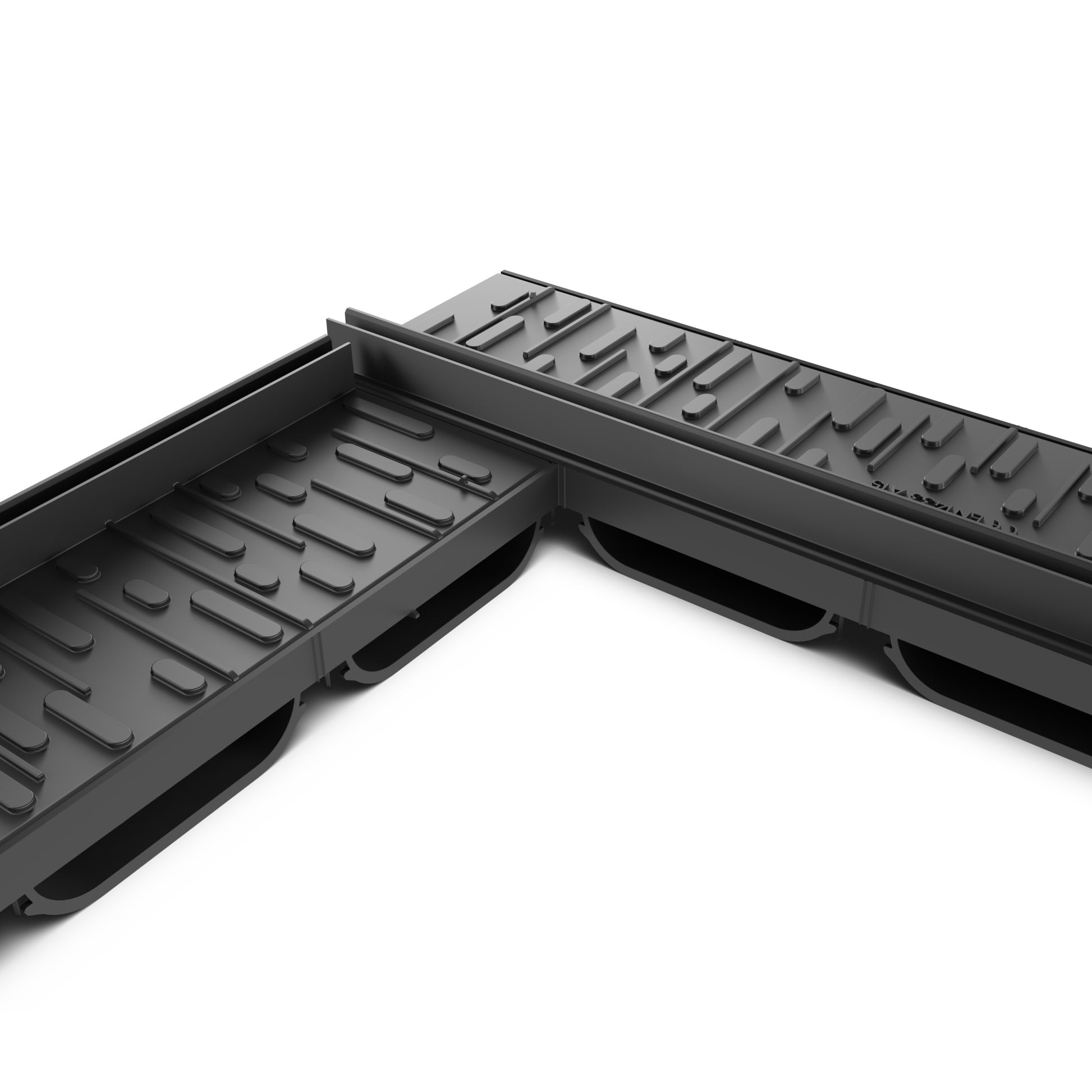

- Features built in 90-degree turn options on both sides of the channel. No need for a separate corner unit.
- Pedestrian load (A15)
Included with purchase:
- Channel and 20mm plastic upstand
- If you require extra end caps or outlets you may add them on this page below, in cart or in EASY accessories
Product Description
Product Description

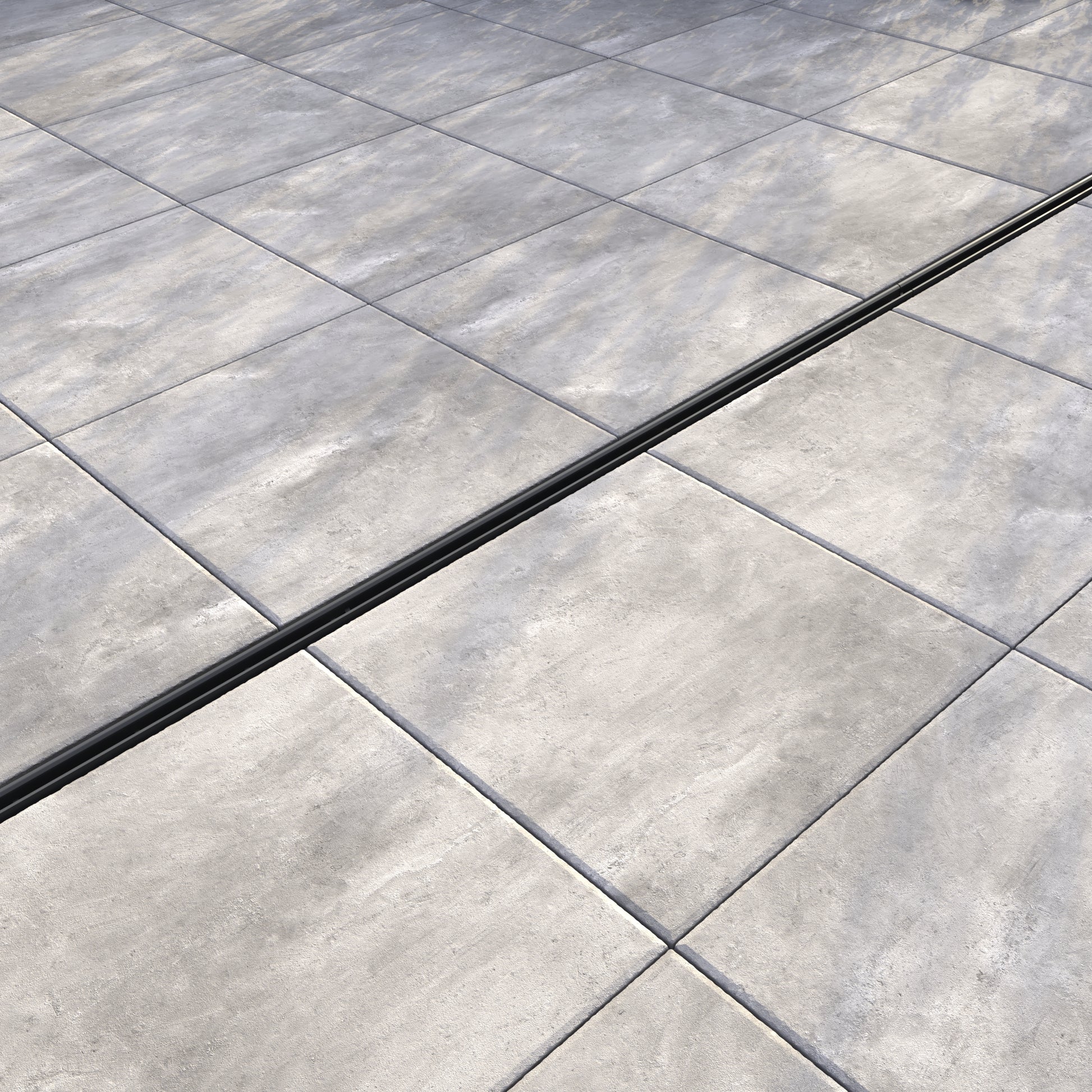

The Vodaland Easy Low slot drain provides you with a minimal, low-profile design ideal for thresholds, doorways, pools, gardens, patios, terraces and more. Featuring 8 built in 90-degree connections on either side and designed with snap-fit mechanisms for making connections, installing slot drains has never been easier (or more affordable)!
This product features a plastic, 20mm upstand, suitable for up to 20mm tile / paving, and a 40mm deep plastic channel, rated load class A15 - suitable for pedestrian traffic (refer to our load class page for clarifications). The slot drain opening width is 7mm, making it safe for heels and bare foot traffic.
