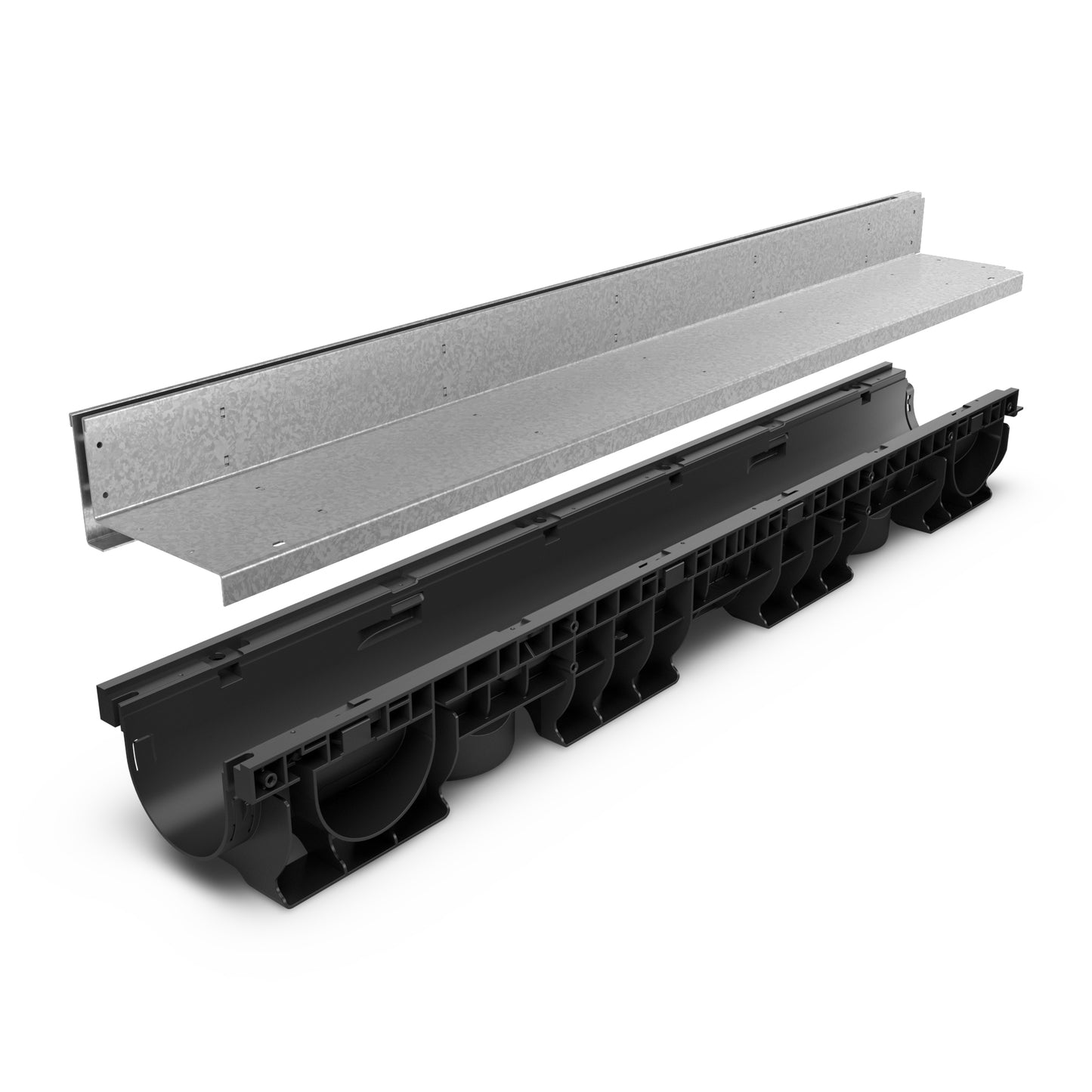

Galvanised slot drain L-Type H65, Class B125

Galvanised slot drain L-Type H65, Class B125

Regular price £54.96
Regular price Sale price £54.96
Sale Sold out
VAT included. Shipping calculated at checkout.

2-3 working days delivery

View full details
  • Specifications and Downloads
  • Product Description

Specifications and Downloads

Specifications and Downloads

• 1000mm length
• 100mm internal and 156mm external width
• HeelSafe - 10mm slot width
• 65mm upstand height
• Varied channel depth (see channel drawings in Downloads)
• External depth is specified in channel drawings in Downloads
• Up to 3x flow capacity when selecting a sloped channel
• Polypropylene plastic channel and galvanised steel slot upstand
• Easy and secure "click" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Load class B125 (when fully encased in concrete)



Included in package:

• Channel drain(s) of desired depth
• Galvanised steel slot upstand, B125
• Channel end caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
• Access units and other accessories are available in SLOT Drain accessories in menu

  • Neutral channel drawing pdf
  • Neutral channel drawing dwg
  • Sloped channel drawing pdf
  • Sloped channel drawing dwg
  • Slot drain drawing pdf
  • Slot drain drawing dwg

Product Description

Product Description

Vodaland's SLOT Drain systems are designed to look discreet while maintaining high efficiency and water flow capacity. Our SLOT Drains come in bundles and customers may choose between a sloped channel (1% slope) or neutral (no slope) option. Sloped option is recommended for longer channel drain sections or for areas where more capacity is needed. Each channel has 90-degree connection options, bottom outlet, and easy "clip" and lock connection between channels.

This particular kit features a galvanised steel L-Type (offset) slot upstand and is rated load class B125* - suitable for anything from pedestrian to light car traffic (refer to our load class page for clarifications). Slot upstand height is 65mm and is suitable for block paving up to 60mm. This slot drain is heelsafe; slot width is 10mm.

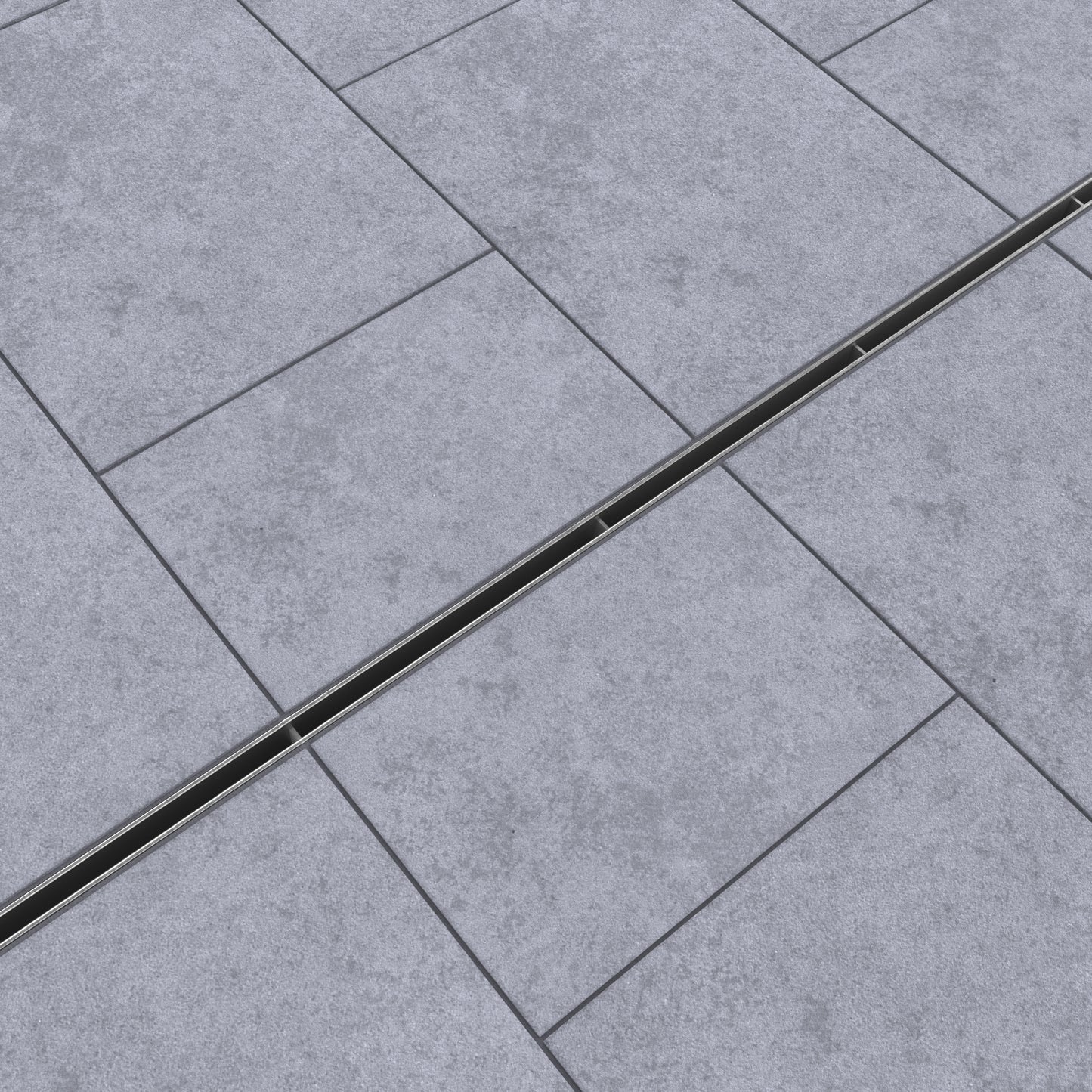

Slot drains service a wide range of areas including but not limited to driveways, patios, thresholds, public pedestrian areas, pavements.

*Note that slot drain must be fully encased in concrete to be rated B125.

Customer Reviews

Overall rating: 1.0 / 5 from 1 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Sent wrong item which delayed project

"Have just finished setting 4. 5 of these channels into the ground with a sump unit. I was sent the wrong items initially which meant I had a gap in the middle. This was after customer services changed my order, and I needed to change the drainage layout to suit. I was then sent channels which were not in series and could not be connected together. A 6,7 and 2x 9s. I could have made my original order work because I had to modify the channels anyway by angle grinder since my run is not exactly 4. 5 metres long and the channels come in 1 meter lengths. On delivery, it isn’t practical to set these out and check the correct items work together until you try and install them. Therefore relying on being sent the right items in the order. I could not practically set out the two ends with a gap in the middle with compounded the issue. This delayed my progress and I could not use the hired wacker plate to compact all of the stone. I needed to contact Vodaland to explain the error. Then there was no urgency to send the correct item. This was sent as though I had just made the order then. This further delayed my project and cost me in hiring equipment. Vodaland supply construction industry hardware and mistakes cost time, money and stress. They are not the cheapest. I was relying on them being a professional construction industry supplier. I recommend to use a cheaper supplier unless you can afford to wait longer than the 2-3 days delivery time, and are flexible with your time. I would not have used them if the actual time of delivery and their response to their own errors was known before ordering."

Order 1. (1/5)
