PRO 150PC Channel drain with cast iron grate D400
PRO 150PC Channel drain with cast iron grate D400
- Made of polymer concrete
- Reinforced with steel edges
- Comes fitted with cast iron grates
- Load class D400
- 150mm internal and 196mm external width
- Made of polymer concrete
- Reinforced with steel edges
- Comes fitted with cast iron grates
- Load class D400
- 150mm internal and 196mm external width
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- 1000mm length
- 150mm internal and 196mm external width
- 150mm depth
- Made of polymer concrete
- Channel comes equipped with reinforced edges and cast iron grates
- Suitable for commercial and industrial settings: retail car pars, trading estate, warehouses, roads, distribution centres, petrol stations and more
Please note all cast iron grates are naturally prone to rusting due to the metal’s inherent properties. To help prevent rust, we apply a protective KTL coating which offers temporary resistance. However, the rate at which rust develops depends on several factors including humidity, traffic exposure, cleaning frequency, and maintenance practices.
Surface rust does not affect the strength or functionality of the grates. For customers wishing to maintain the original appearance, we recommend using a black coating spray as an additional protective measure.
Product Description
Product Description

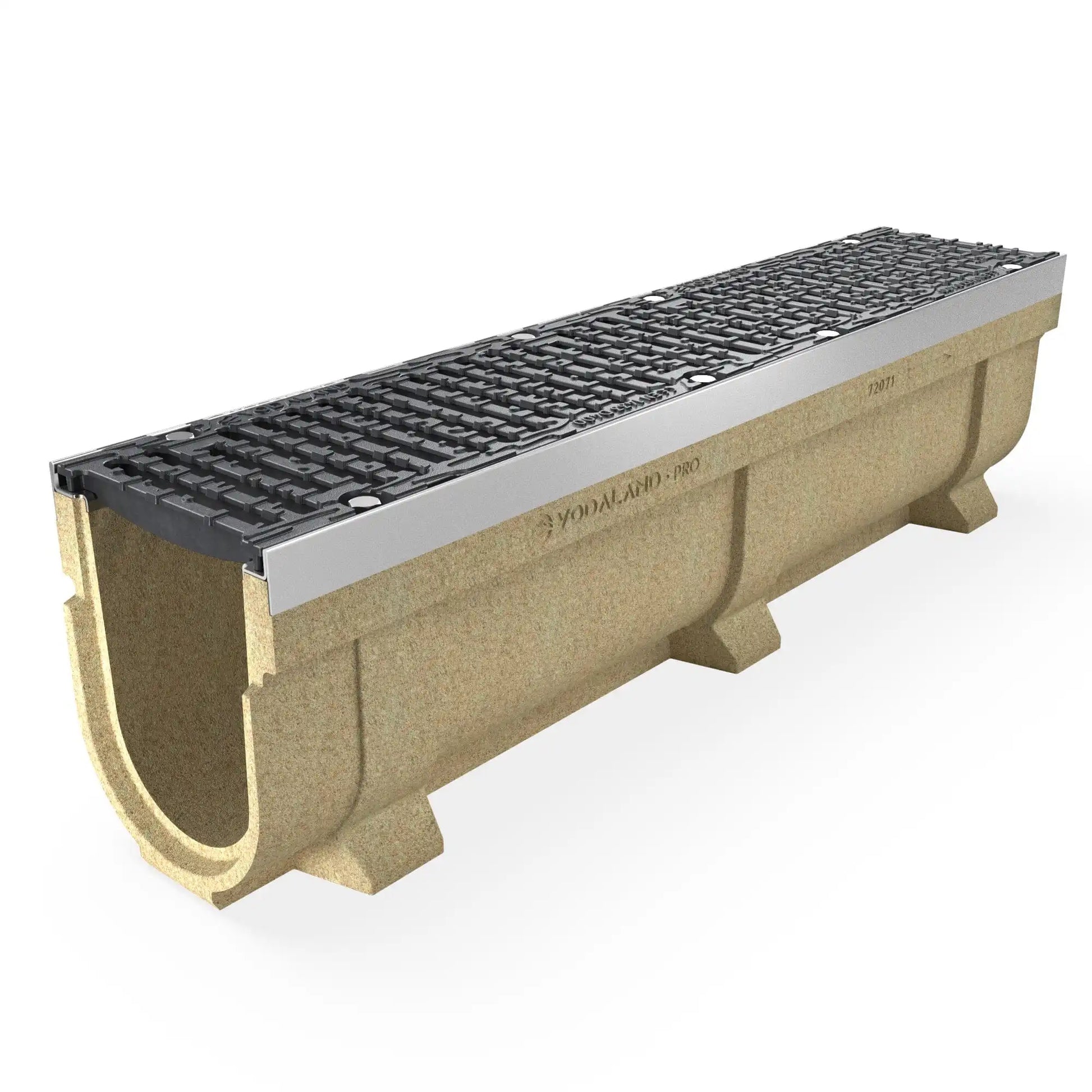

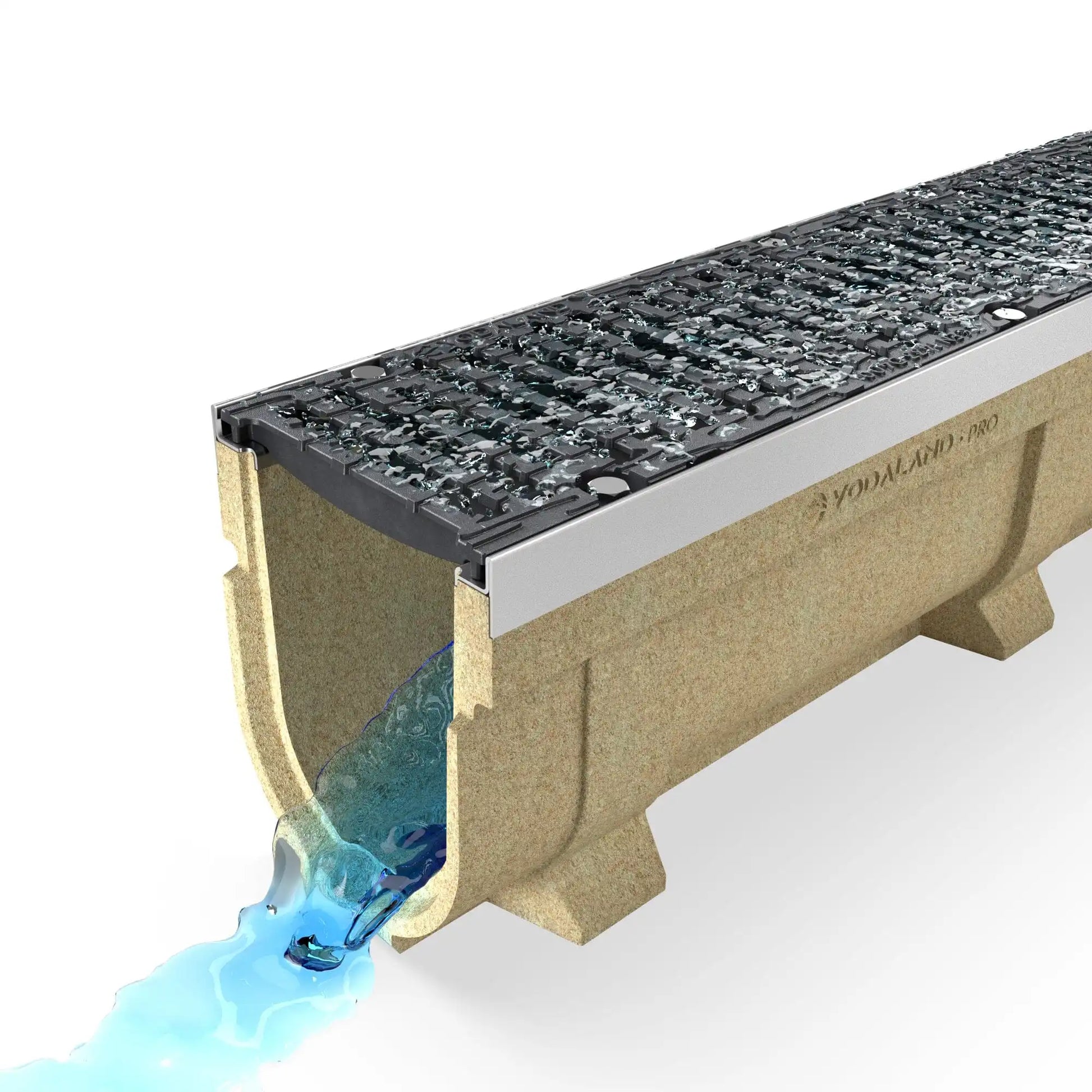

The PRO 150PC is a heavy-duty polymer concrete channel built from high-strength polymer concrete with reinforced galvanised steel edge rails, designed to resist cracking, chipping, and edge damage under repeated heavy traffic.

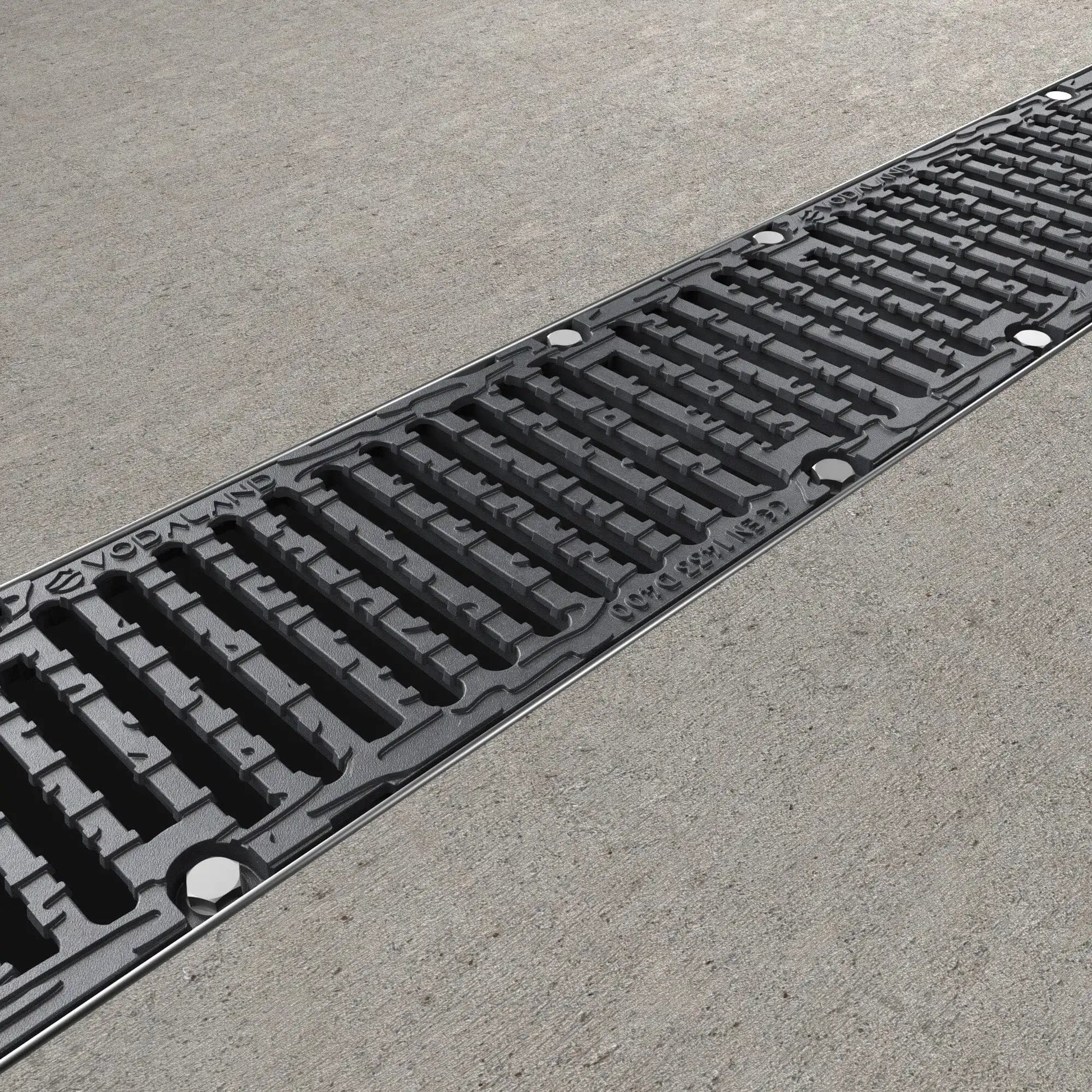

Each 1-metre channel section is complete with two half-metre cast iron slotted grates, rated Class D400, certified for loads up to 40 tonnes. That makes it well suited to HGV routes, loading bays, forecourts, industrial yards, and commercial hardstanding taking regular vehicle traffic.
Whether it's a large commercial project, a trade order, or a single job, the PRO 150PC gives certified D400 performance backed by a straightforward, durable build. Get in touch with the Vodaland team for a quote.
