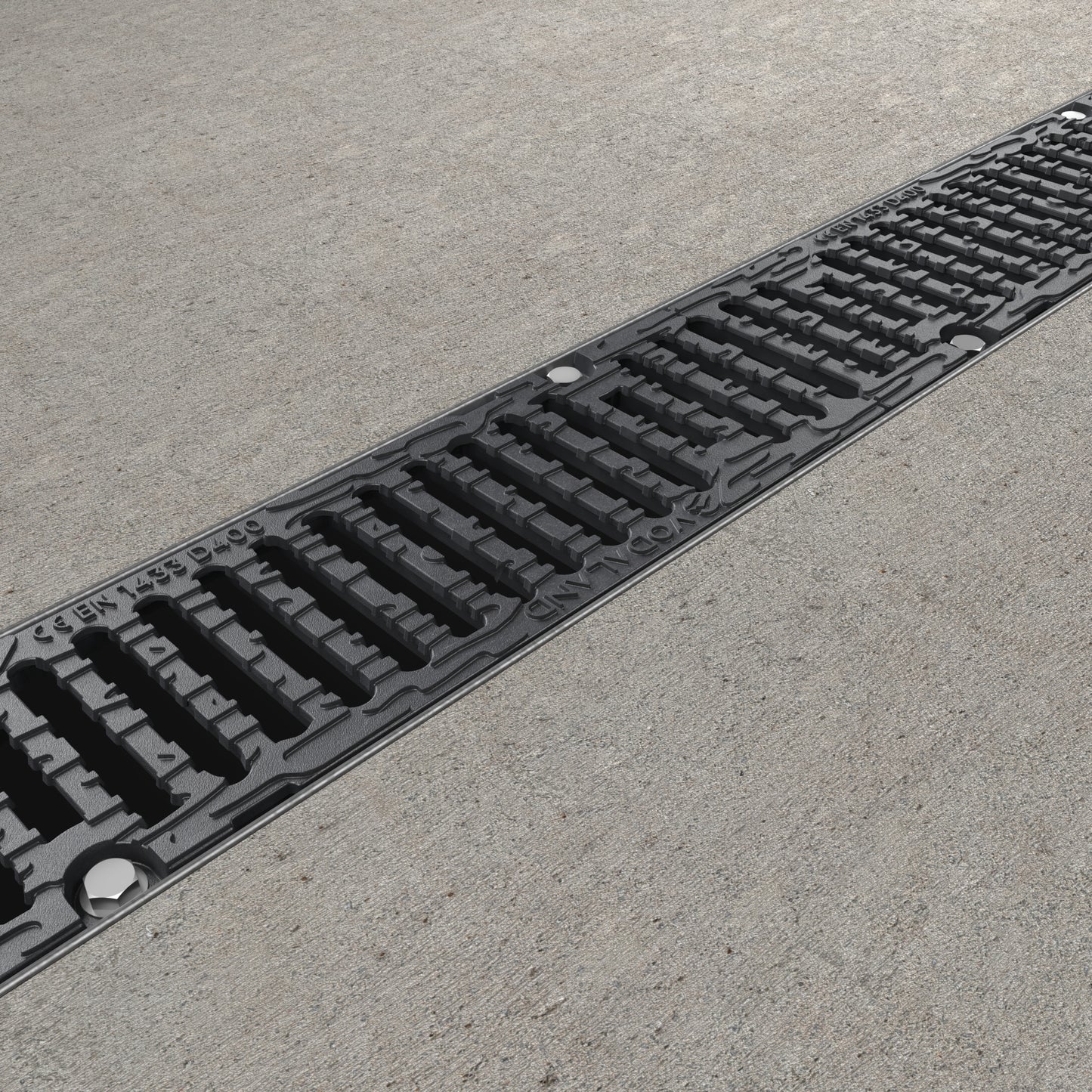

PRO DN100 Industrial heavy duty channel drain with cast iron grate, D400
PRO DN100 Industrial heavy duty channel drain with cast iron grate, D400
Regular price
£99.00
Regular price
Sale price
£99.00
Unit price
per
VAT included.
Shipping calculated at checkout.
- Load Class D400
- Reinforced with steel edges
- Ductile cast iron grates
- Polypropylene channel
- More information below
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- 1000mm length
- 100mm internal and 160mm external width
- 165mm overall depth
- Polypropylene plastic channel features reinforcing steel edges
- Channel features one 110mm bottom outlet
- Cut out 90 degree connection is built into the channel
- Extra heavy duty design - load class D400
- Suitable for industrial areas, roads, petrol stations, truck stops and more
Included in the packages:
- 1 channel with reinforcing steel edges
- 2 cast iron grates and bolts
Product Description
Product Description
Vodaland PRO Series drainage is carefully designed for demanding and heavy duty environments including but not limited to industrial parks, depots, truck stops, and petrol stations. PRO DN100 plastic channel drain is reinforced with steel edge rails and comes with two cast iron grates featuring a modern pattern. This drainage channel and grates are rated load class D400 as per EN1433 and can safely support loads up to 40 tonnes.
The channel is made of high quality 100% recycled polypropylene which is a cost efficient and durable material. Polypropylene is resistant to a wide range of low and high temperatures and is much lighter than concrete or polymer concrete counterparts.
