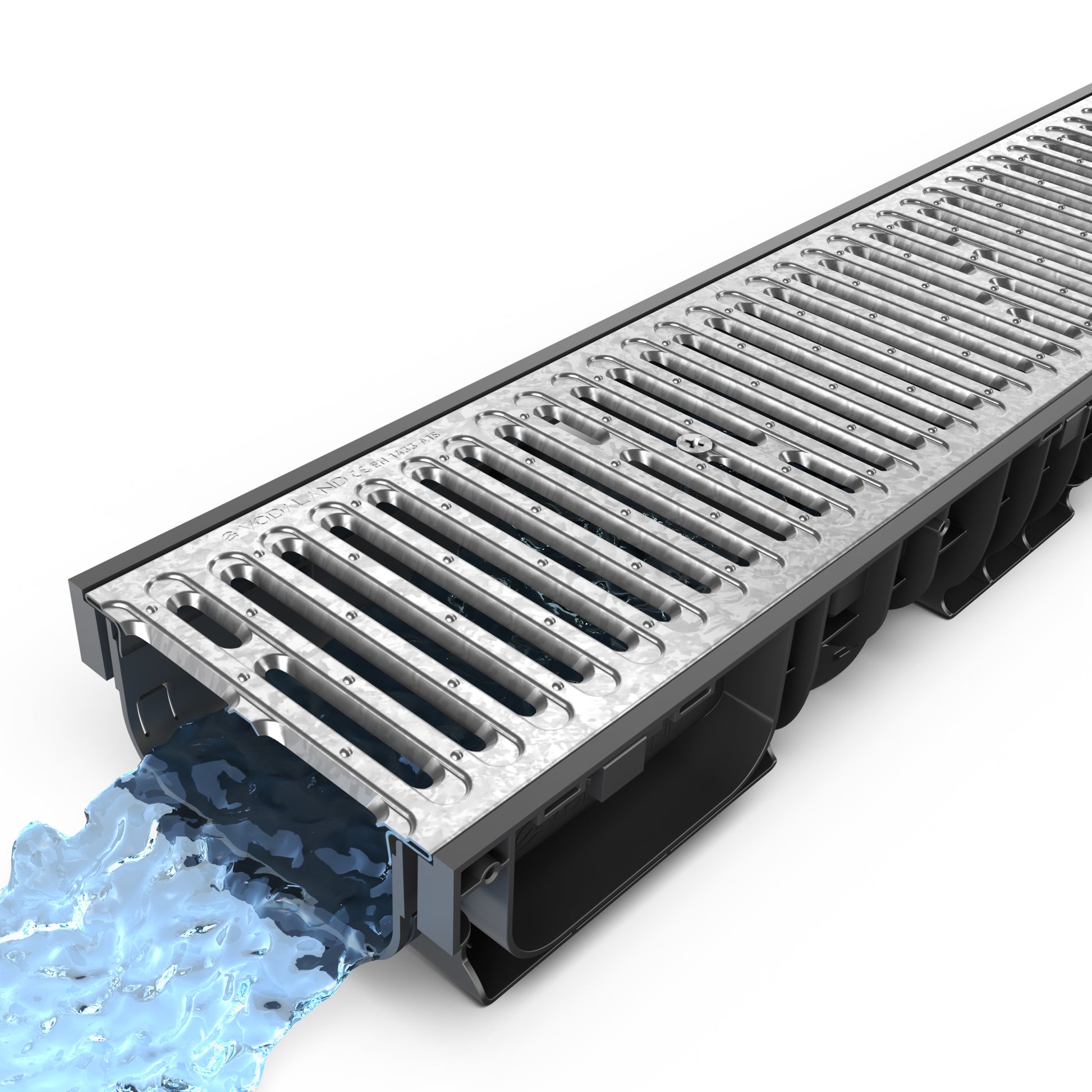

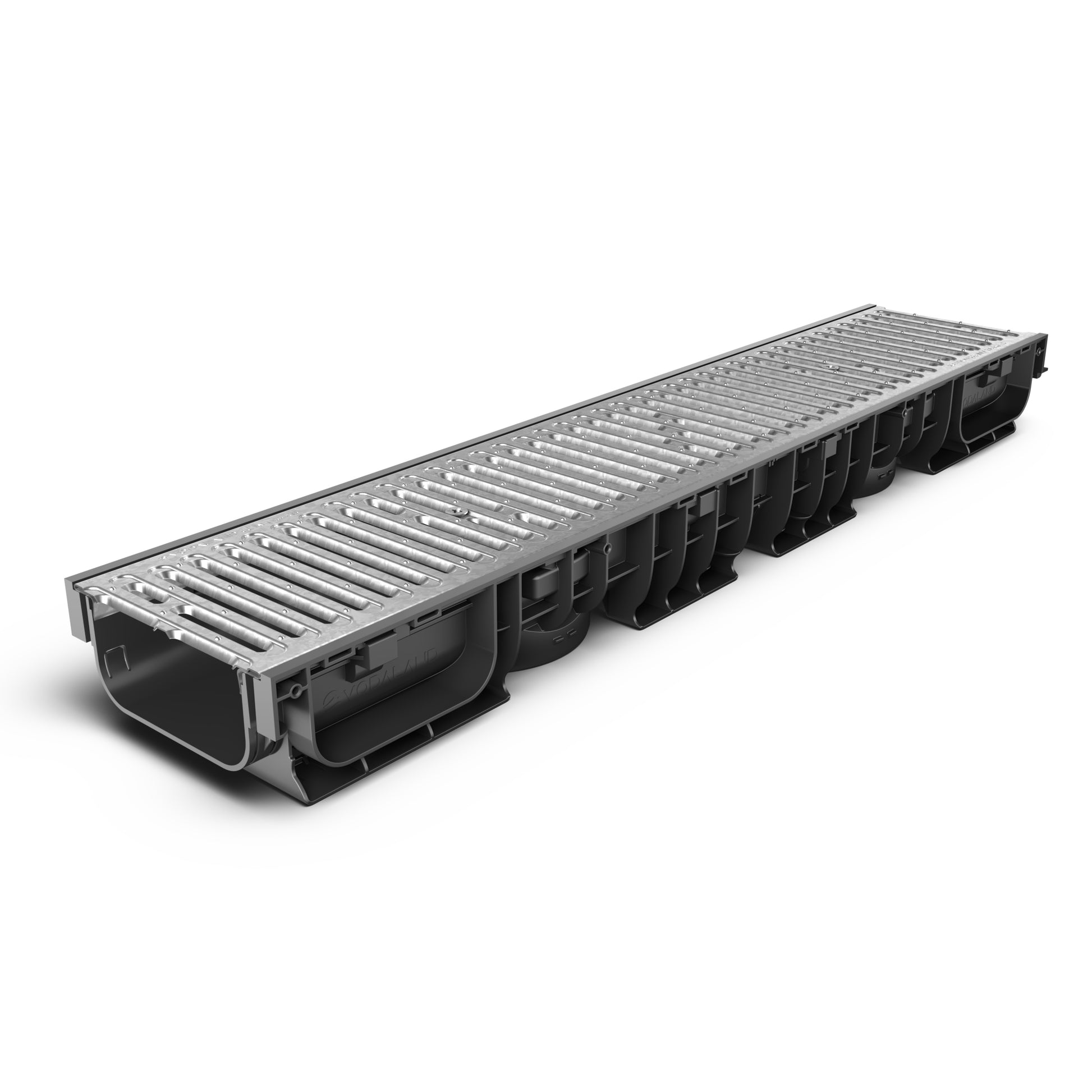

DN150 Galvanised steel grate drainage channel package
DN150 Galvanised steel grate drainage channel package
- Polypropylene channel & galvanised grate
- High capacity 150mm (6 inch) wide channel
- 1000mm length
- Load class A15
- More information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 150mm internal and 206mm external width
• 100mm overall depth (see channel drawing in Downloads)
• Polypropylene plastic channel and galvanised steel grate
• Easy and secure "clip" connection between channels
• Built in 90-degree connection
• Each channel has 75mm, 110mm and 160mm vertical outlets
• Pedestrian load (A15)
Included in package:
• Channel drain(s)

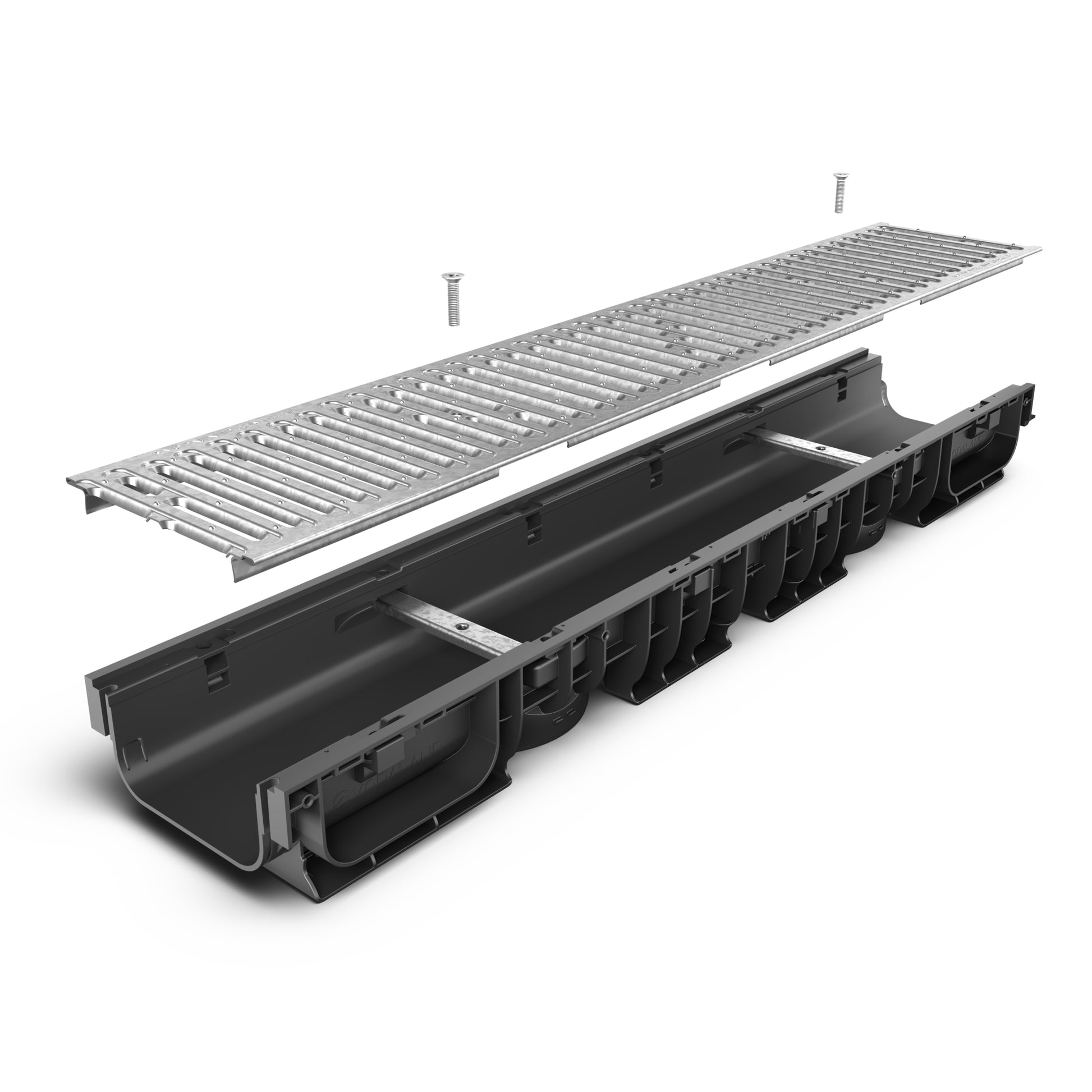

• 1 Galvanised steel slotted grate, A15 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN150 channel accessories in menu)
Product Description
Product Description
Each channel has 90-degree connection options, bottom outlet, and easy "click" and lock connection between channels. 150mm internal width of the channel makes it better equiped than the 100mm channel to deal with intense rainfall and surface runoff.

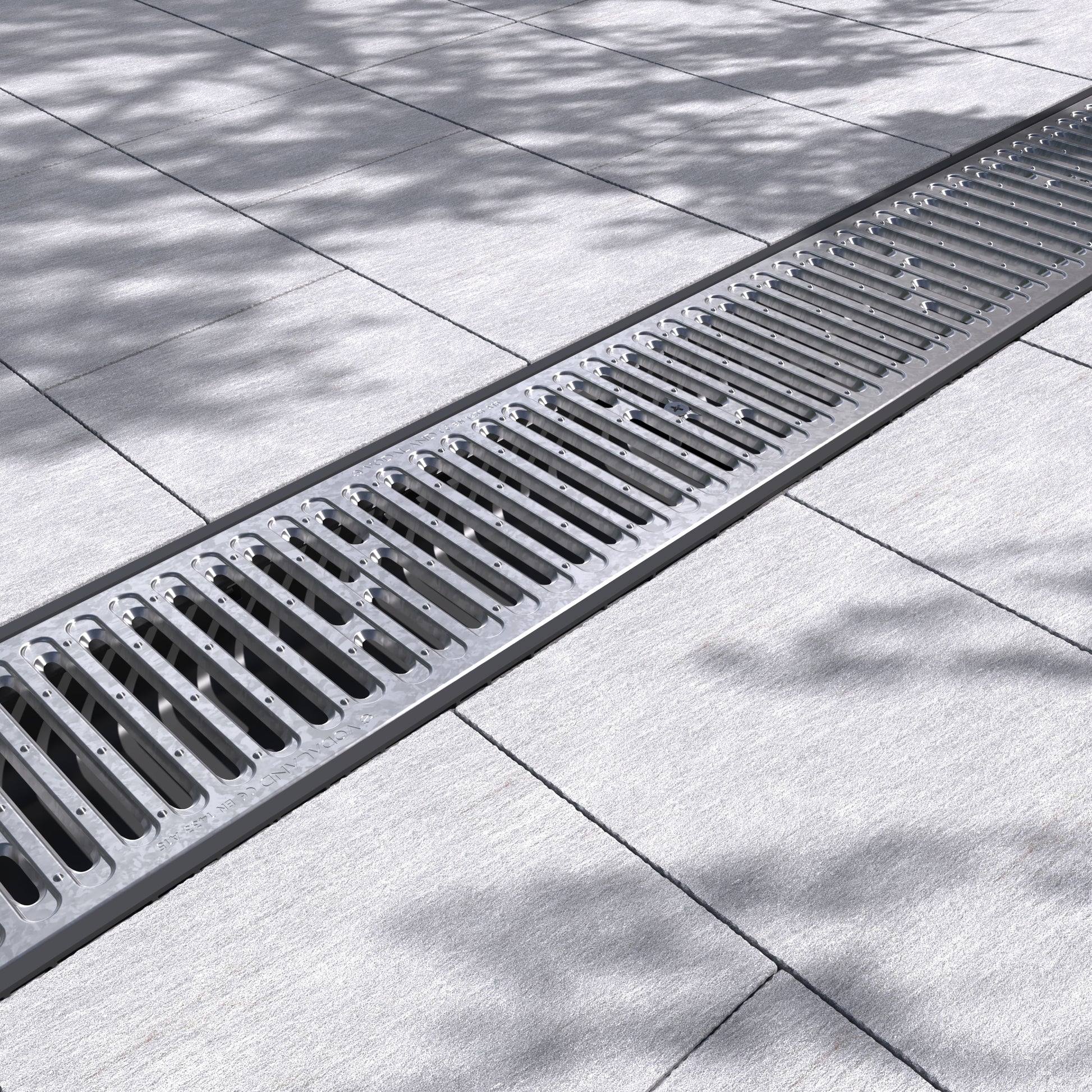

This particular channel drain package comes with galvanised steel slotted grate (Load class A15) and is perfect for pedestrian areas, pavements, parks and other light duty areas. End caps are not included in this package.
