HEXpave Gravel & Grass Paving Grid
HEXpave Gravel & Grass Paving Grid
- 580mm x 505mm x 30mm
- Unique design and high quality
- Perfect for patios, shed bases, walking paths, and light vehicle domestic parking
- Axle weight up to 12,500 kg when filled with gravel
- Compressive strength up to 330 tonnes / m2
- 580mm x 505mm x 30mm
- Unique design and high quality
- Perfect for patios, shed bases, walking paths, and light vehicle domestic parking
- Axle weight up to 12,500 kg when filled with gravel
- Compressive strength up to 330 tonnes / m2
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
A system unlike any other

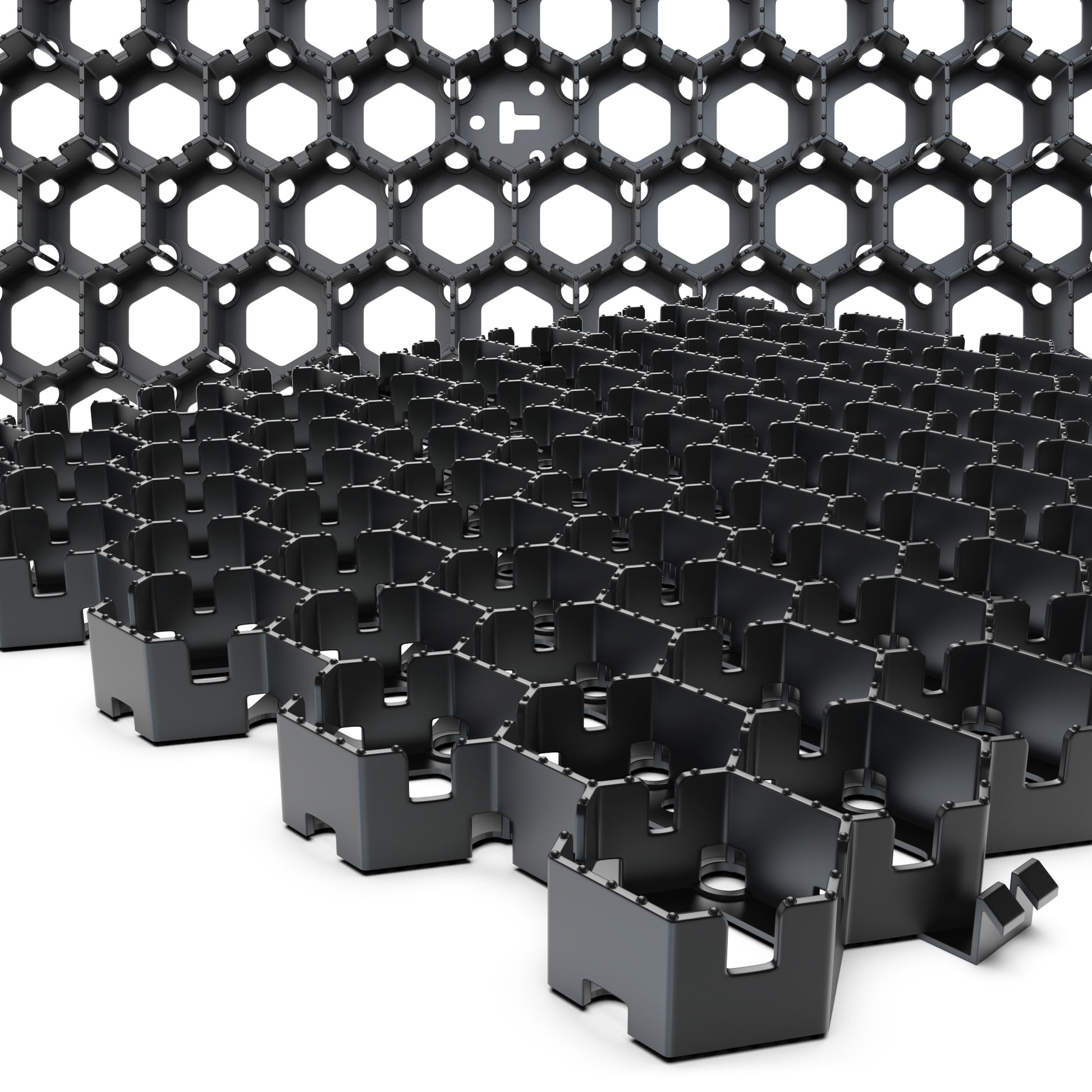

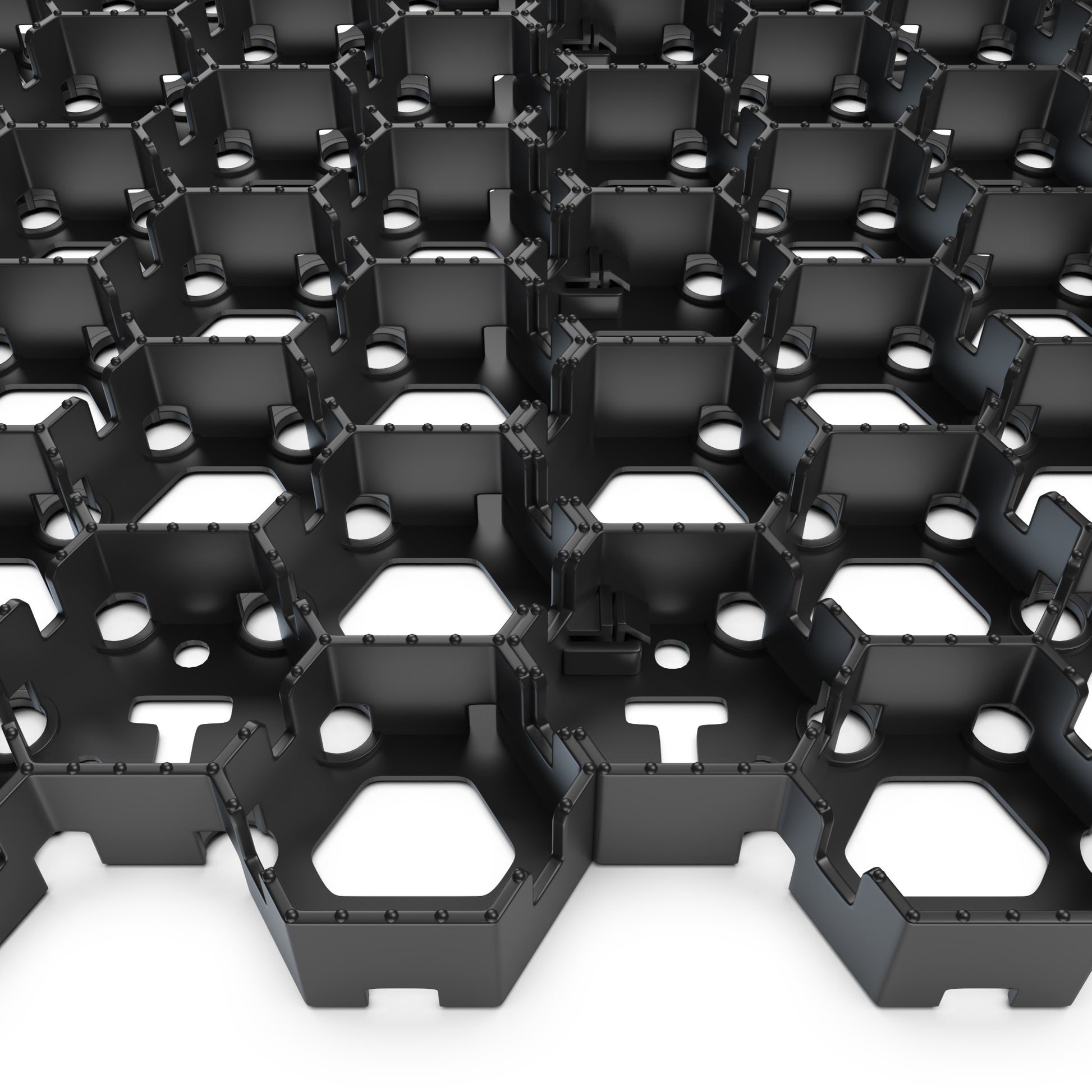

Unlike most other grids on the market, HEXpave features a hexagon design - a shape frequently found in nature and one of the strongest known to mankind. In its shape lies its strength as hexagons use the least amount of material to hold the most weight. With seriously high strength ranking HEXpave grid is also aesthetically pleasing and offers a break from familiar square shaped designs.
Specifications

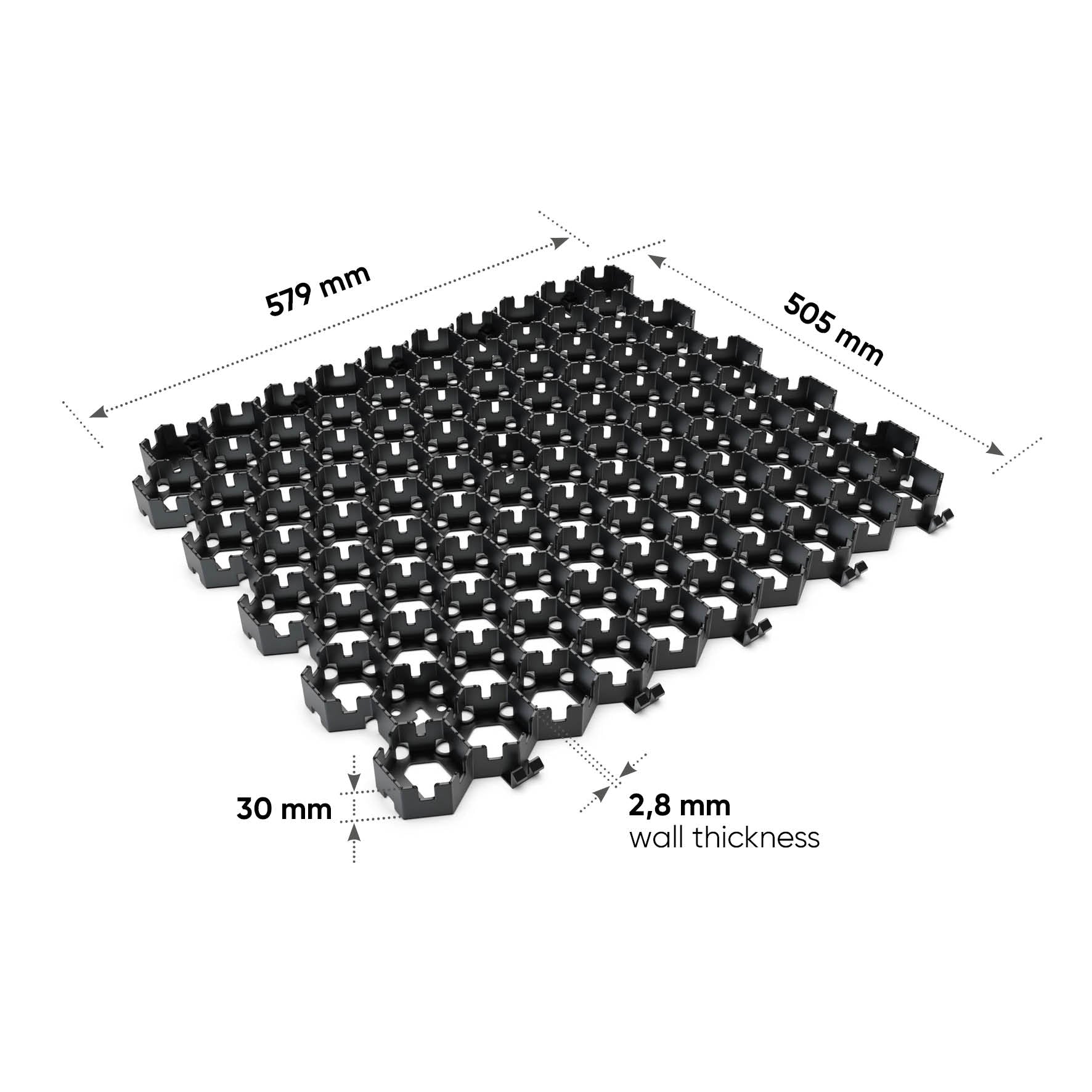

- Overall dimensions: 580mm x 505mm x 30mm
- Useful area of each grid: 552mm x 477mm
- 1 square meter is 3.8 grids
- Weight: 1.96kg
- Compressive strength when filled with gravel up to 3250 kN/m2 (331,407 kgf/m2)
- Used for walking paths, patios, shed bases, light vehicle domestic driveways

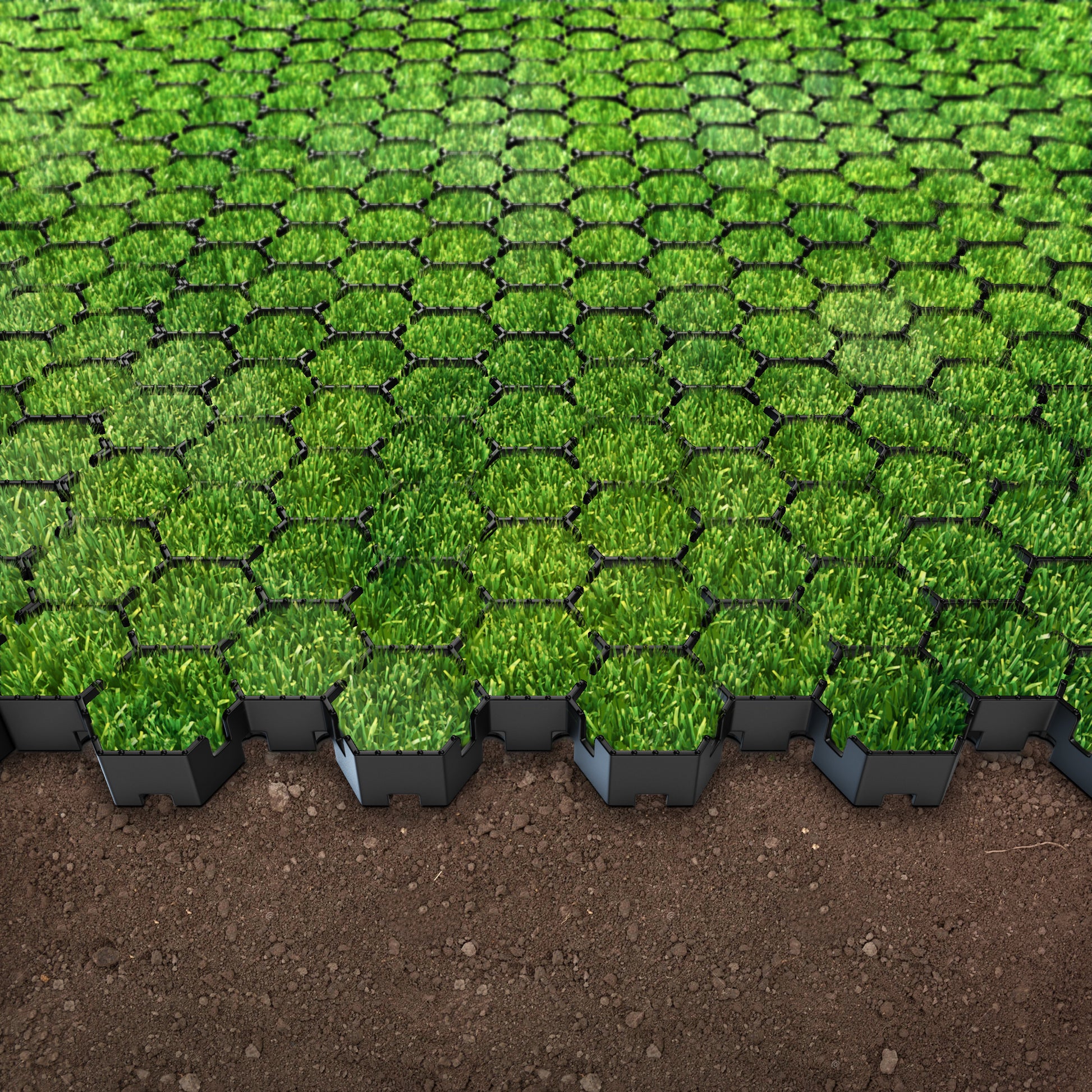

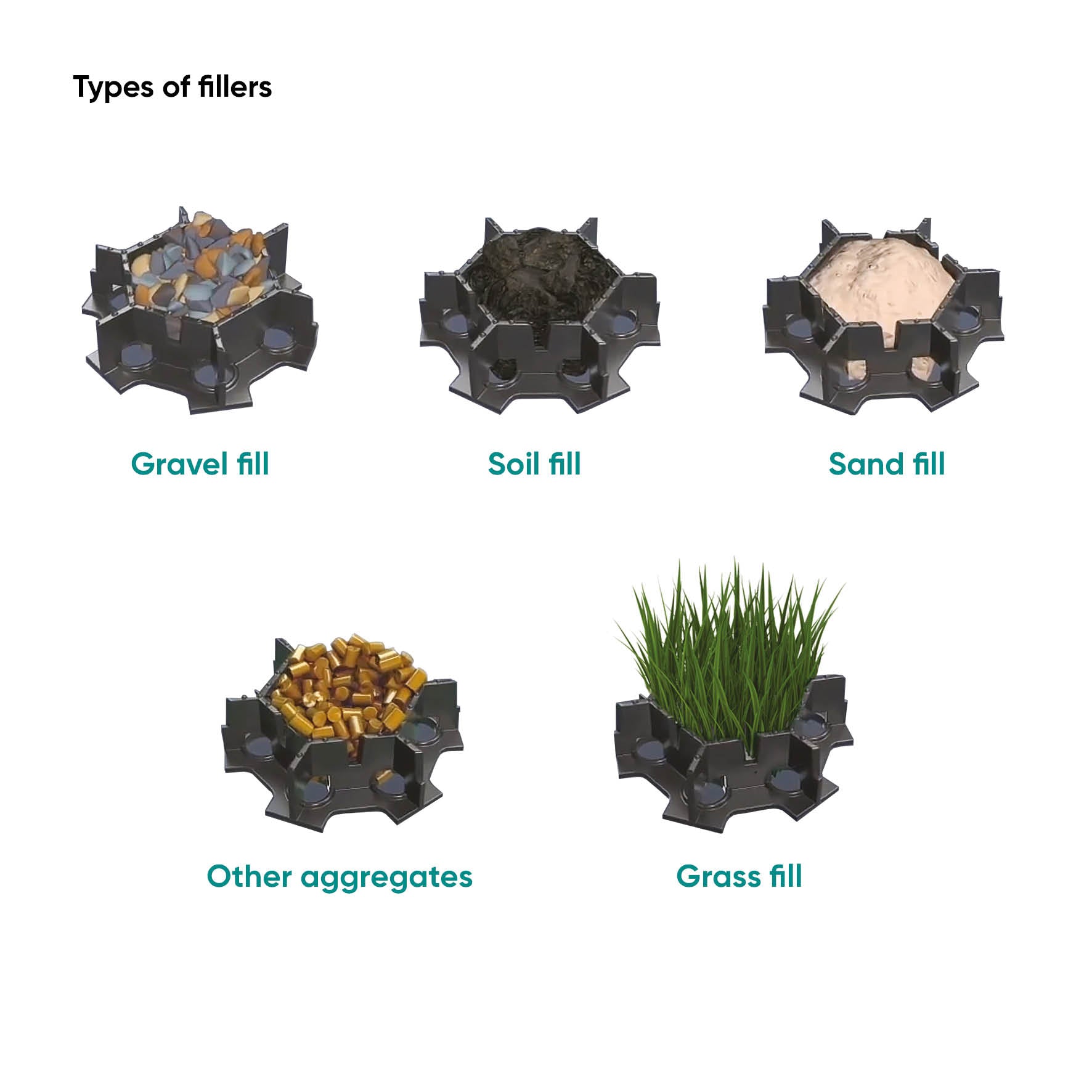

- Fill with gravel or grass
- Save time during installation with snap & lock connection

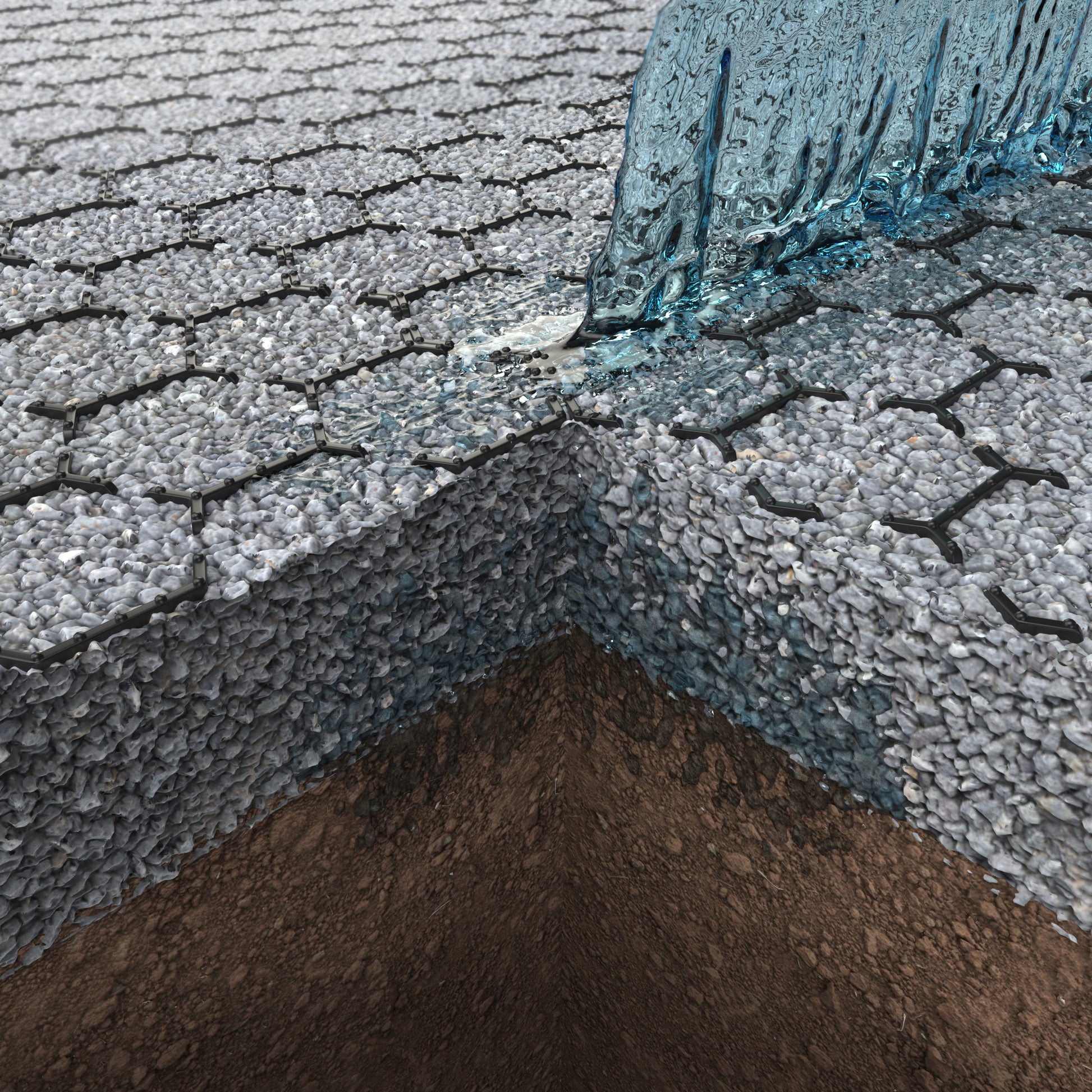

- 100% permeable
- Maximum 5% slope for vehicles and 10% for pedestrians.
- Compliant with SuDS and Flood and Water Management Act 2010
- We recommend using 2 anchors per grid. Use of anchors is encouraged especially for sloped installations.
Contact us to see if you qualify for special pricing on bulk quantities (3 or more pallets) or if you would like to place an order for quantities other than listed on this page.
Product Description
Product Description

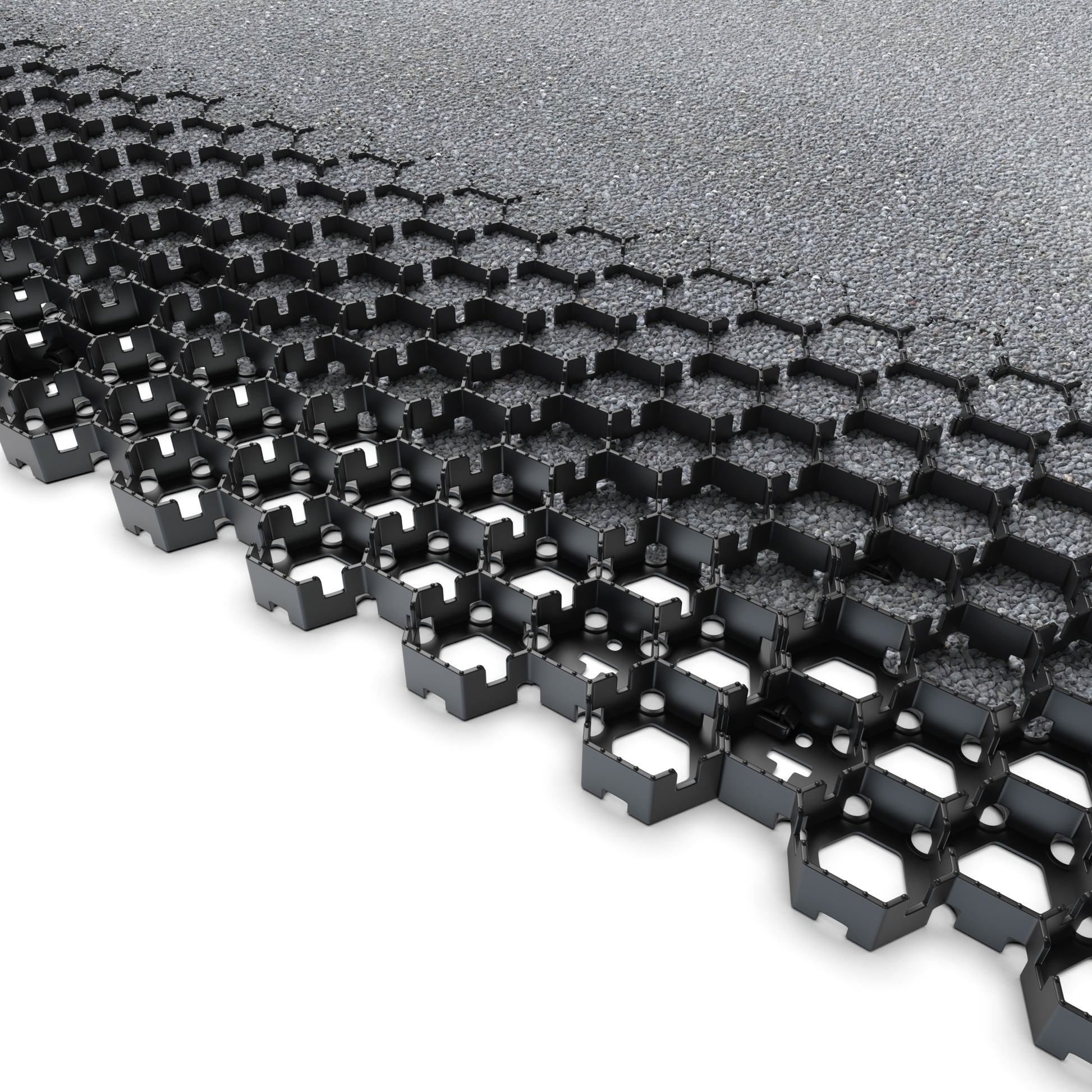

Efficient Plastic Gravel Stabilisation Grid
Vodaland's HEXpave permeable ground reinforcement grid is the perfect balance between utility, quality and price. This lightweight yet strong gravel grid system can support loads up to 12,500 kg per 0.04 m2 (or B125 load class equivalent) when filled with aggregate. Here are some highlights:

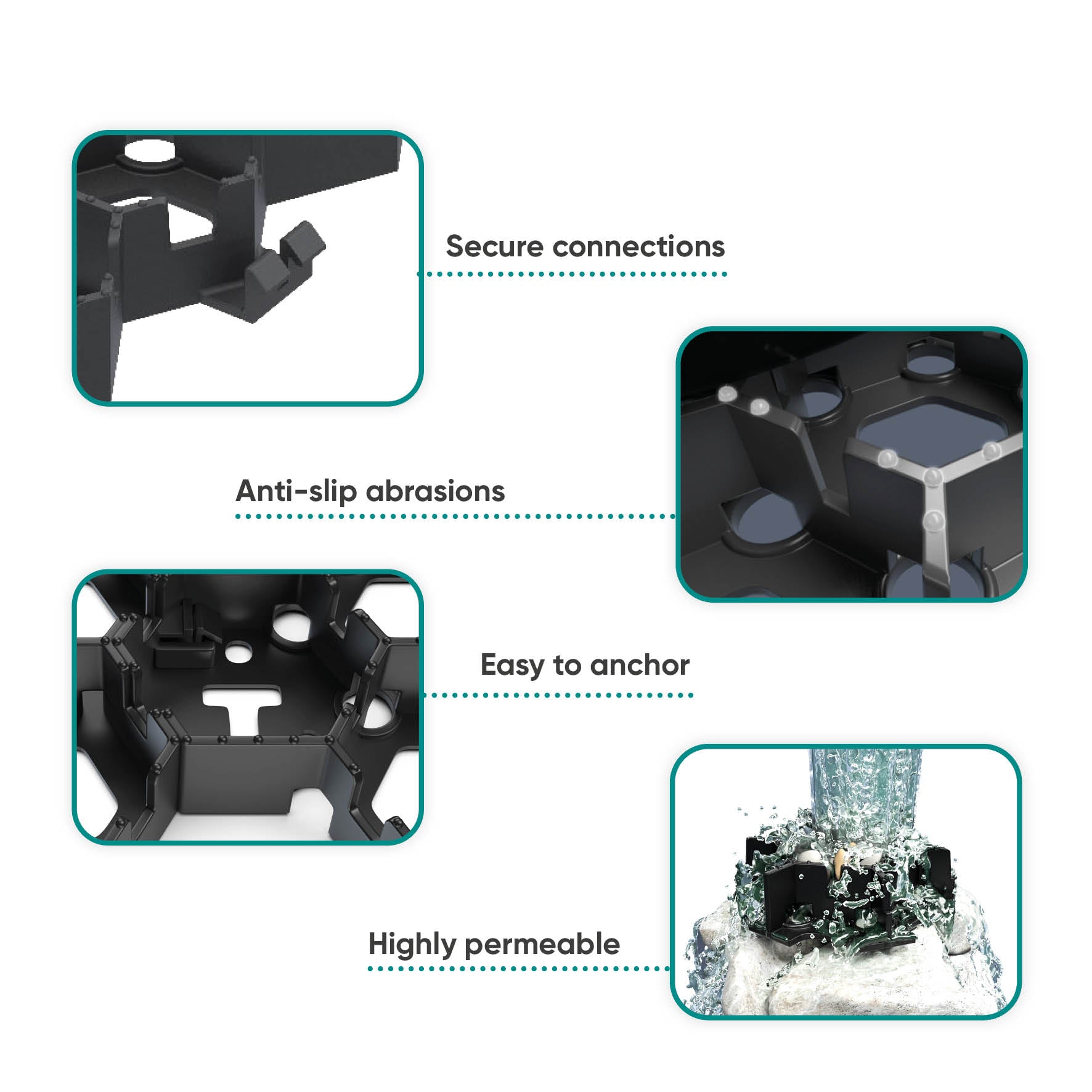

CONNECTION
HEXpave grids are incredibly easy to connect with our TRUE Lock mechanism. Snap and click the grids together. Grids stay secure in place.
GRIP
Our system was designed with safety in mind. HEXpave grids feature traction and anti slip abrasions on top of the grid making them very safe for walking and great for tyre grip.
ANCHORS AND INSTALLATION

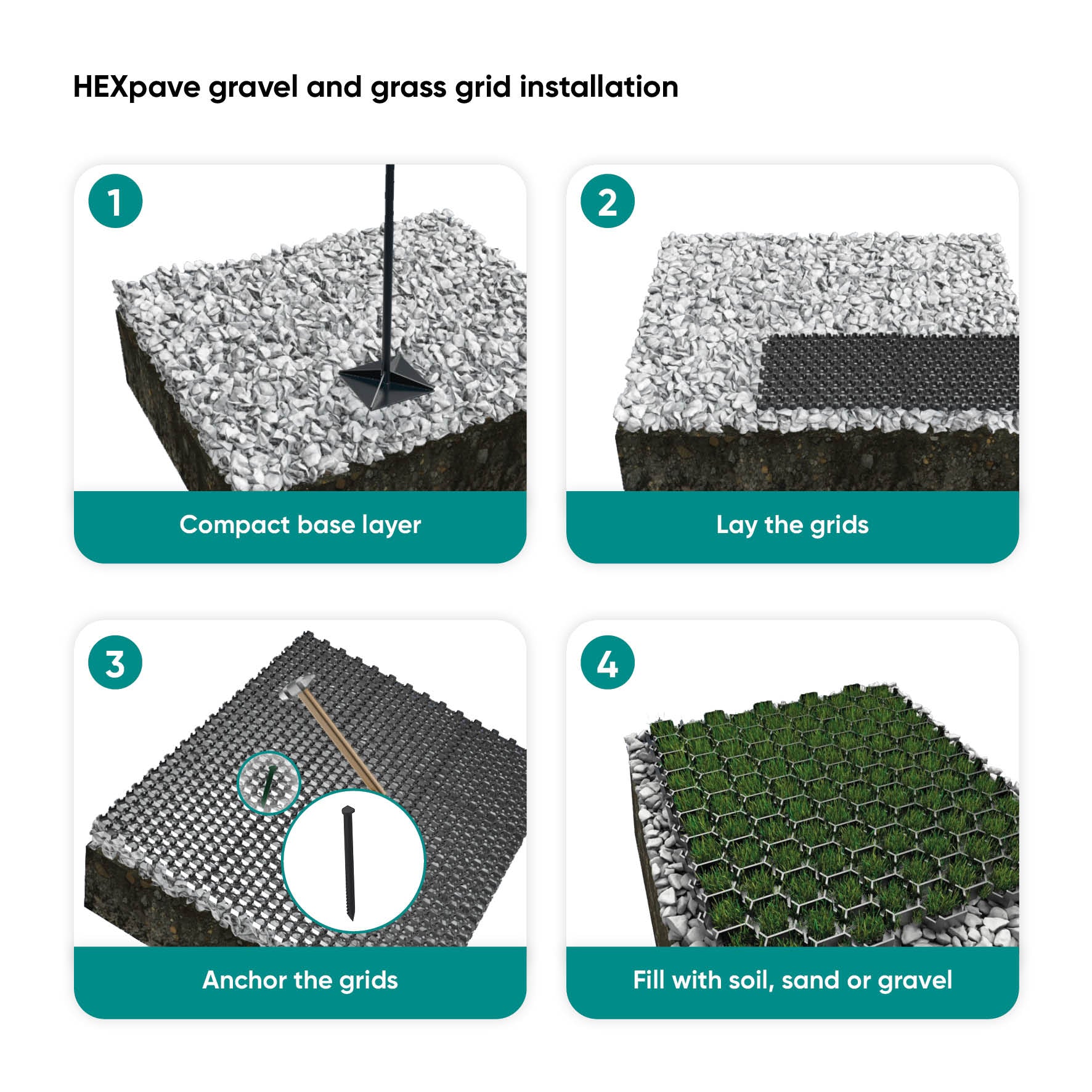

Installing HEXpave is easy. Once you prepare the base all you need to do is to lay the grids and interlock them with our secure TRUE lock mechanism. No tools are required but it is recommended to pin the grids with anchors especially for vehicle use. You may use our HEXpave plastic anchors or galvanised steel rebar stakes.
ECO FRIENDLY
At Vodaland, we offer max utility while respecting nature’s harmony. That’s why HEXpave grids are crafted from 100% recycled polyethylene plastic. Not only are these grids eco-friendly and fully permeable but also exceptionally strong and durable with unmatched characteristics in its class. Fully compliant with SuDS and Flood and Water Management Act 2010.
Product code: 8102-BK
