300x300 NEO Gully drain with plastic grate A15
300x300 NEO Gully drain with plastic grate A15
- Polypropylene gully with plastic grate
- 75mm, 110mm and 160mm outlets: side and bottom
- Foul air trap with partition-siphon and debris basket included
- Load class A15
- More product information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Overall size: 293mm x 293mm x 293mm
- Outlet options: 75mm and 110mm side outlets (via nozzle-adapter), plus 75mm, 110mm and 160mm bottom outlets
- Gully and grate made of polypropylene plastic
- Conical body for better water flow and strength, with less dirt build-up in the base
- Debris basket included
- Load class A15
- Compatible with all Vodaland 300 x 300mm grates and covers
- Note that the debris basket will only trap leaves, sand, etc. entering via the top grate, and is not suitable as a silt trap for soakaways
- Perfect for downpipes, patios, gardens, paths, courtyards and pedestrian areas
Foul Air Trap
The NeoGully has 5 possible outlet positions (4 side, 1 underneath), and outlets can be combined to suit your layout.
The gully comes with a partition-siphon insert that acts as a trap. The foul air trap only works with the internal basket fitted, when a single side outlet is in use, and with the siphon positioned directly in front of that outlet.
Included in package:
- 1 NeoGully 300 x 300mm
- 1 plastic grate
- 1 nozzle-adapter
- 1 partition-siphon
- 1 debris basket
Product Description
Product Description
The NeoGully 300 x 300mm is a compact point drainage gully for gardens, patios, paths, courtyards, pedestrian areas and around downpipes. Its conical body improves water flow, resists compression and stops dirt building up in the base, so it stays cleaner for longer.

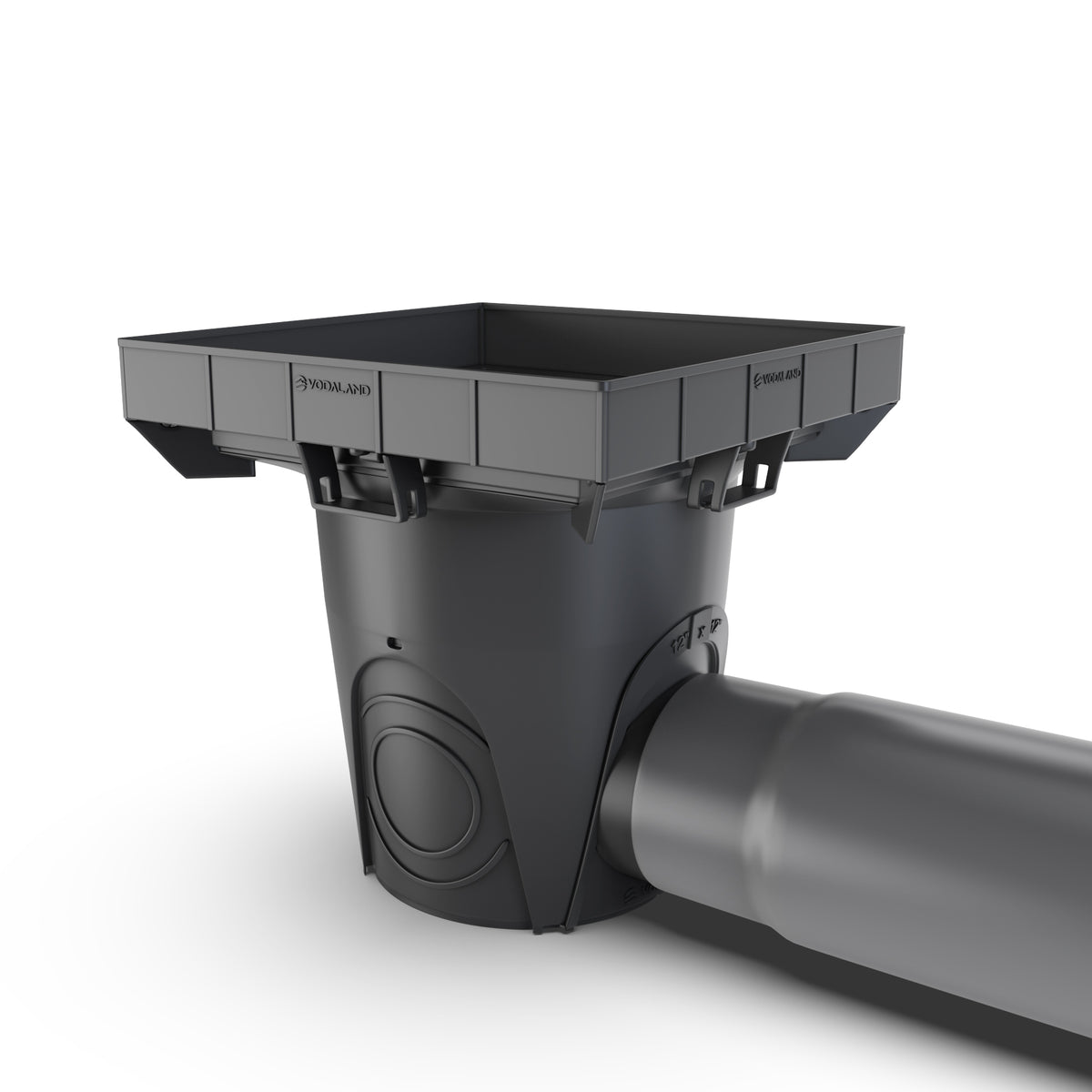

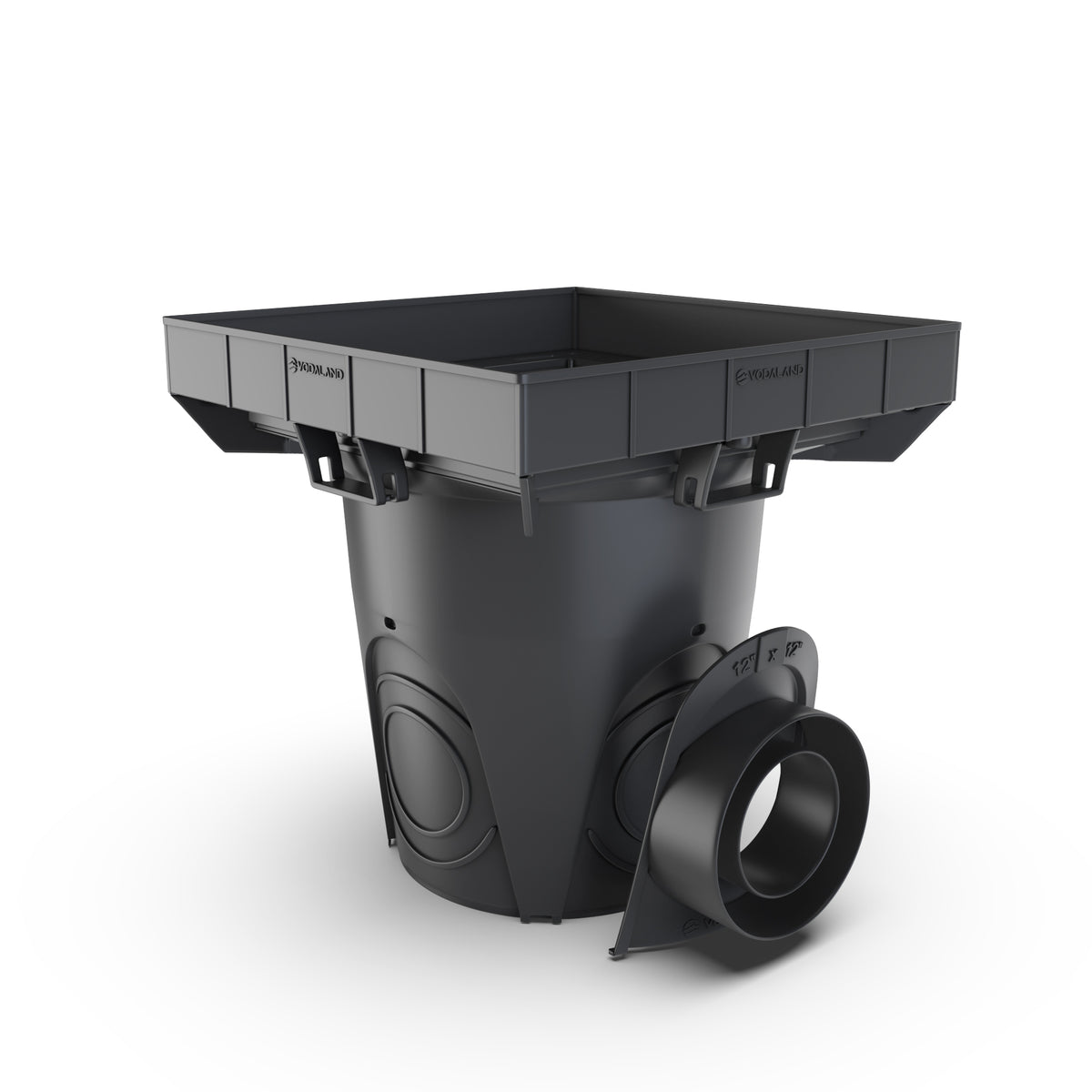

Pipes can connect from any of the four sides using the nozzle-adapter, which takes 75mm or 110mm pipe. A bottom outlet takes 75mm, 110mm or 160mm pipe. That means you can route water in almost any direction without redesigning your layout.

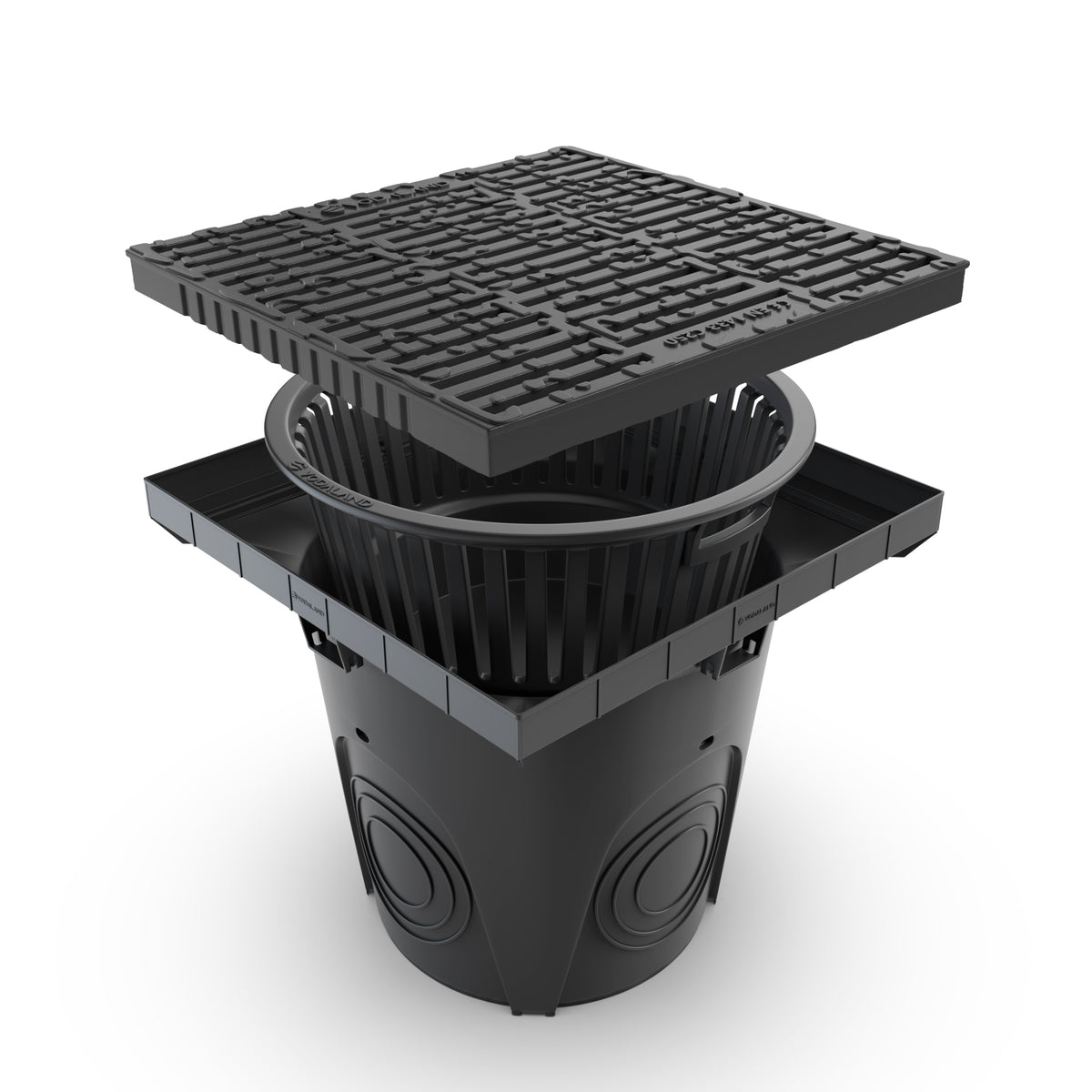

Supplied complete with a plastic grate, a removable debris basket to catch leaves and silt, a nozzle-adapter, and a partition-siphon that acts as an odour and debris trap. It’s also compatible with all Vodaland 300 x 300mm grates and covers.
