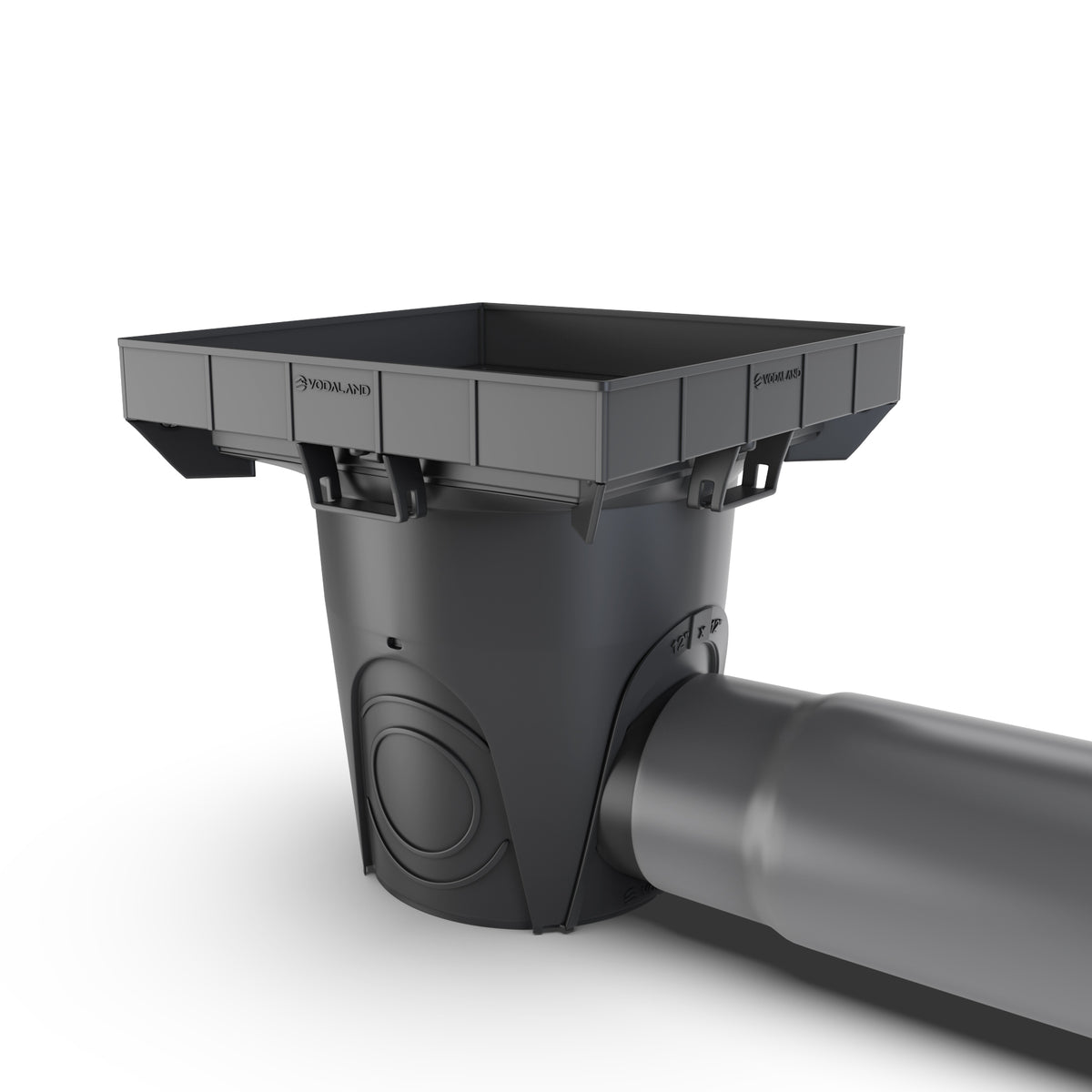

550x550 NEO Gully drain with plastic grate A15
550x550 NEO Gully drain with plastic grate A15
- Polypropylene gully with plastic grate
- 110mm to 200mm side outlets and up to 315mm bottom outlets
- Foul air trap with partition-siphon and debris basket included
- Load class A15
- More product information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Overall size: 543mm x 543mm x 500mm
- Outlet options: 110mm, 160mm and 200mm side outlets (via nozzle-adapter), plus 160mm, 200mm, 250mm and 315mm bottom outlets
- Gully and grate made of polypropylene plastic
- Conical body for better water flow and strength, with less dirt build-up in the base
- Debris basket included
- Load class A15
- Compatible with all Vodaland 550 x 550mm grates and covers
- Note that the debris basket will only trap leaves, sand, etc. entering via the top grate, and is not suitable as a silt trap for soakaways
- Perfect for downpipes, large patios, courtyards, commercial entrances, parks and pedestrian areas
Foul Air Trap
The NeoGully has 5 possible outlet positions (4 side, 1 underneath), and outlets can be combined to suit your layout.
The gully comes with a partition-siphon insert that acts as a trap. The foul air trap only works with the internal basket fitted, when a single side outlet is in use, and with the siphon positioned directly in front of that outlet.

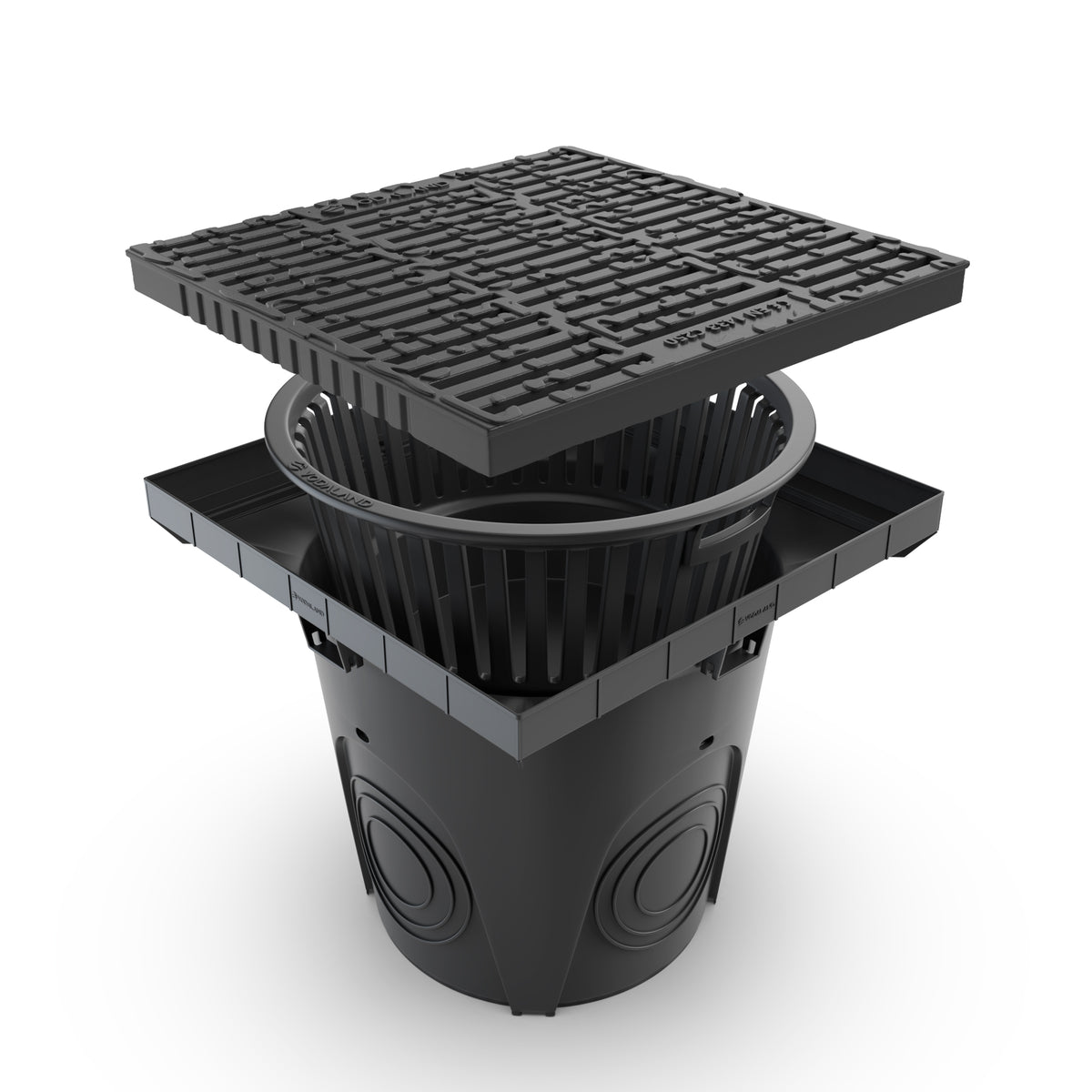

Included in package:
- 1 NeoGully 550 x 550mm
- 1 plastic grate

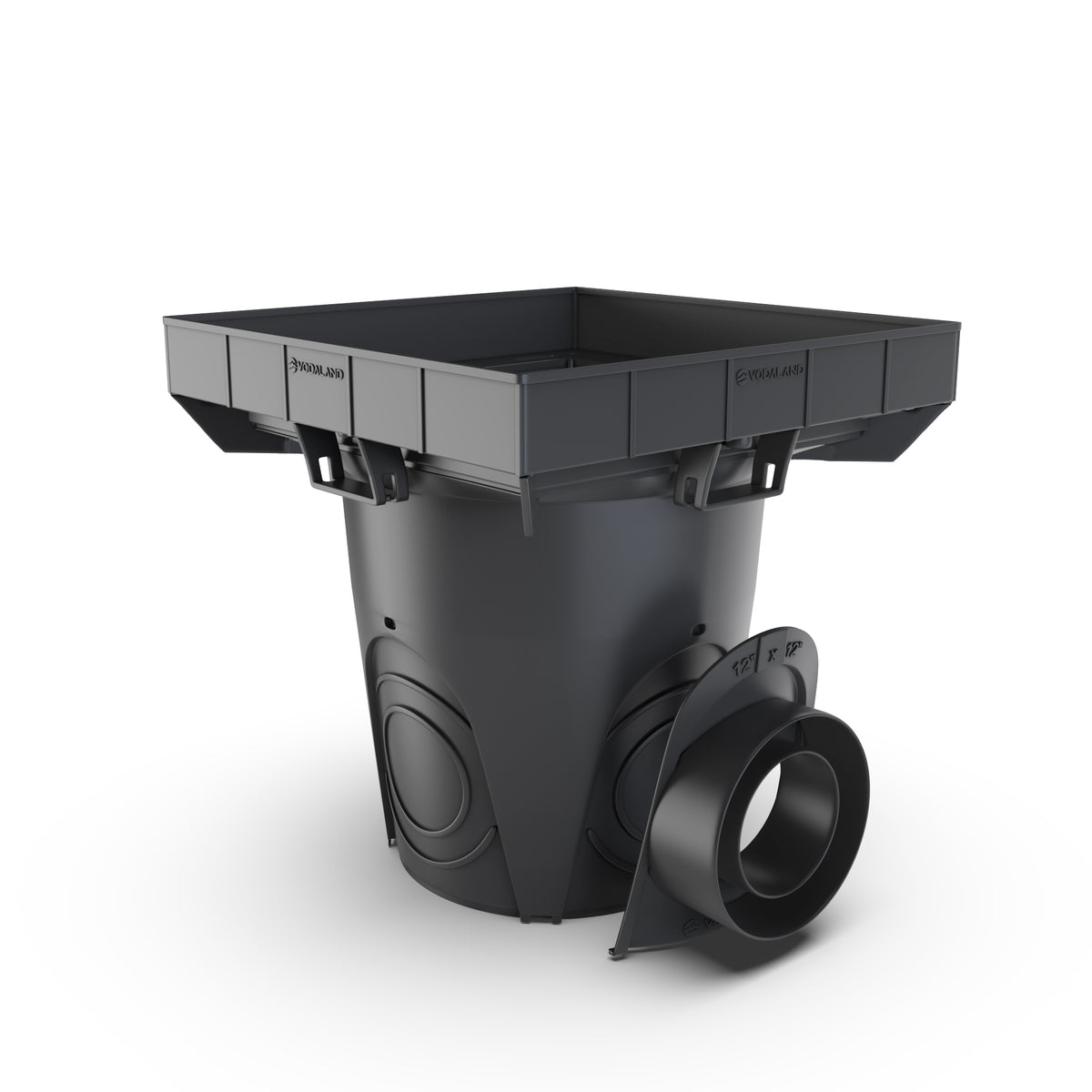

- 1 nozzle-adapter
- 1 partition-siphon
- 1 debris basket
Product Description
Product Description
The NeoGully 550 x 550mm is our largest point drainage gully, built for bigger catchment areas such as large patios, courtyards, commercial entrances, parks and pedestrian areas, as well as high-volume downpipes. Its conical body improves water flow, resists compression and stops dirt building up in the base, so it stays cleaner for longer.
Pipes can connect from any of the four sides using the nozzle-adapter, which takes 110mm, 160mm or 200mm pipe. A bottom outlet takes 160mm, 200mm, 250mm or 315mm pipe. That means you can route water in almost any direction without redesigning your layout.
Supplied complete with a plastic grate, a removable debris basket to catch leaves and silt, a nozzle-adapter, and a partition-siphon that acts as an odour and debris trap. It’s also compatible with all Vodaland 550 x 550mm grates and covers.
