BASE 100PC Polymer concrete channel drain with cast iron grate C250
BASE 100PC Polymer concrete channel drain with cast iron grate C250
- Polymer concrete channel & cast iron grate
- Load Class C250
- More information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 100mm internal and 156mm external width
• 100mm depth
• External depth is specified in channel drawings in Downloads below
• Polymer concrete channel and cast iron grates
• 90-degree connection available
• Each channel has 110mm vertical outlet
• Anti-Slip grating
• Vehicle load (C250)
Included in package:

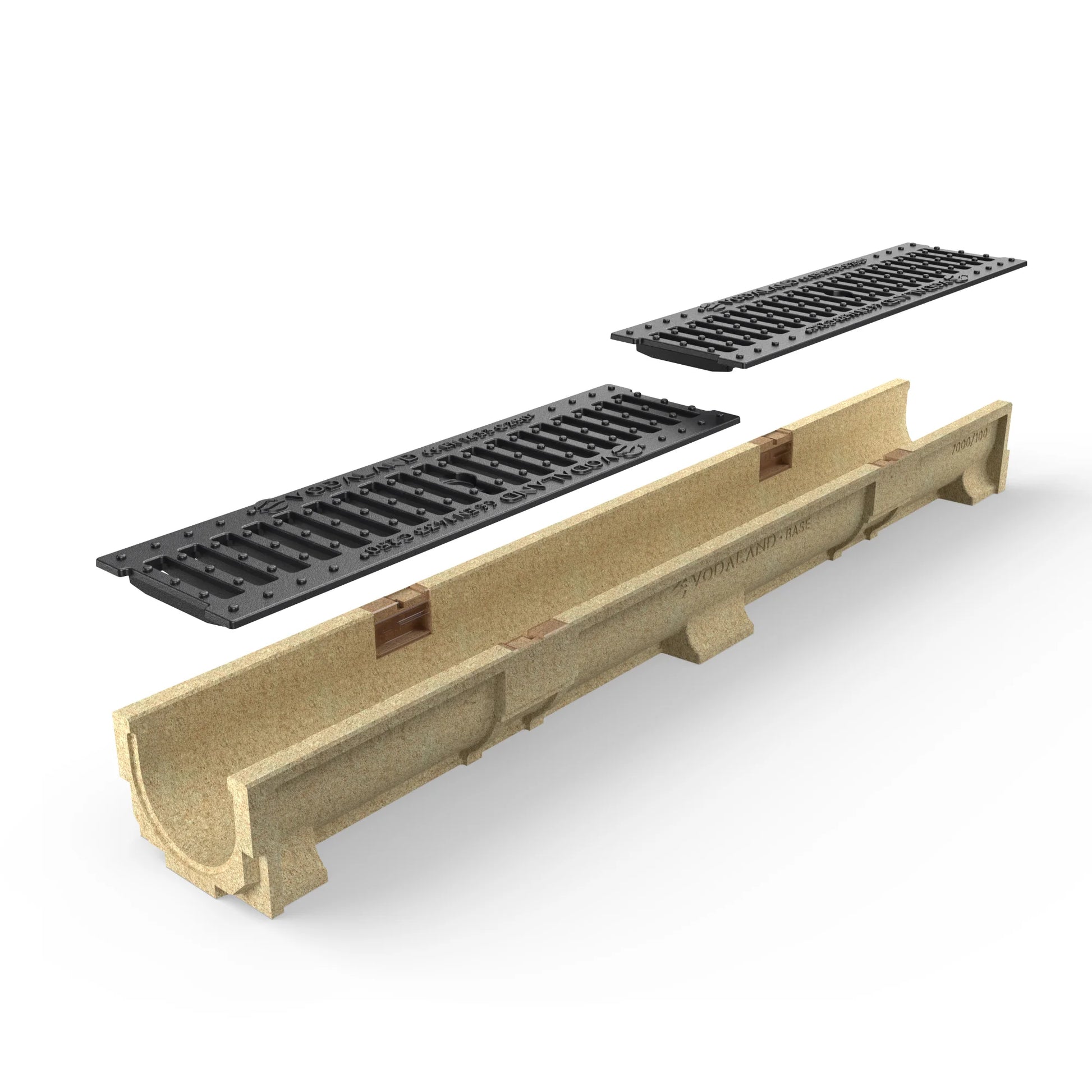

• Channel drain

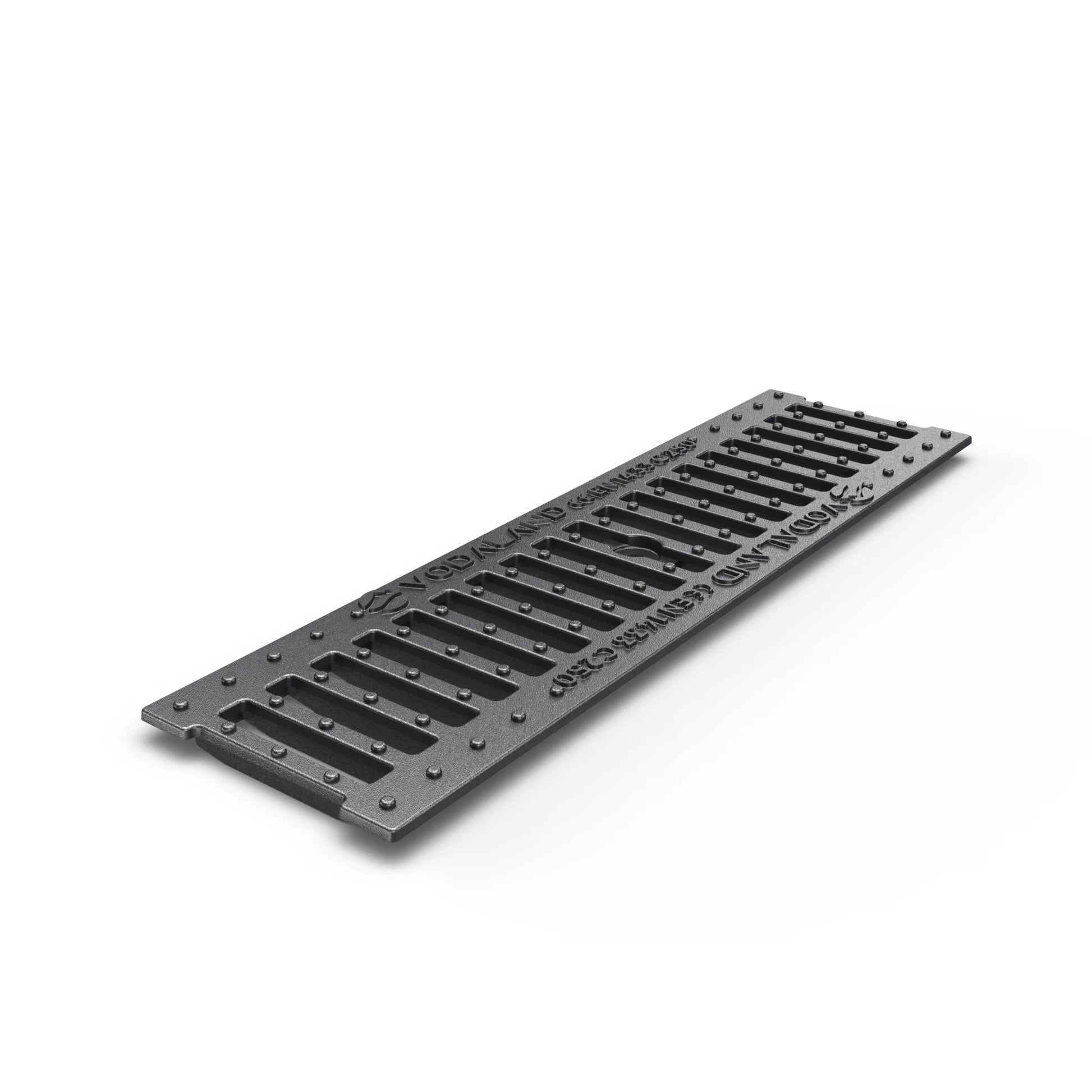

• 2 slotted ductile cast iron grates, C250 per channel
• 2 grate fasteners
• End caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
Please note all cast iron grates are naturally prone to rusting due to the metal’s inherent properties. To help prevent rust, we apply a protective KTL coating which offers temporary resistance. However, the rate at which rust develops depends on several factors including humidity, traffic exposure, cleaning frequency, and maintenance practices.
Surface rust does not affect the strength or functionality of the grates. For customers wishing to maintain the original appearance, we recommend using a black coating spray as an additional protective measure.
Product Description
Product Description

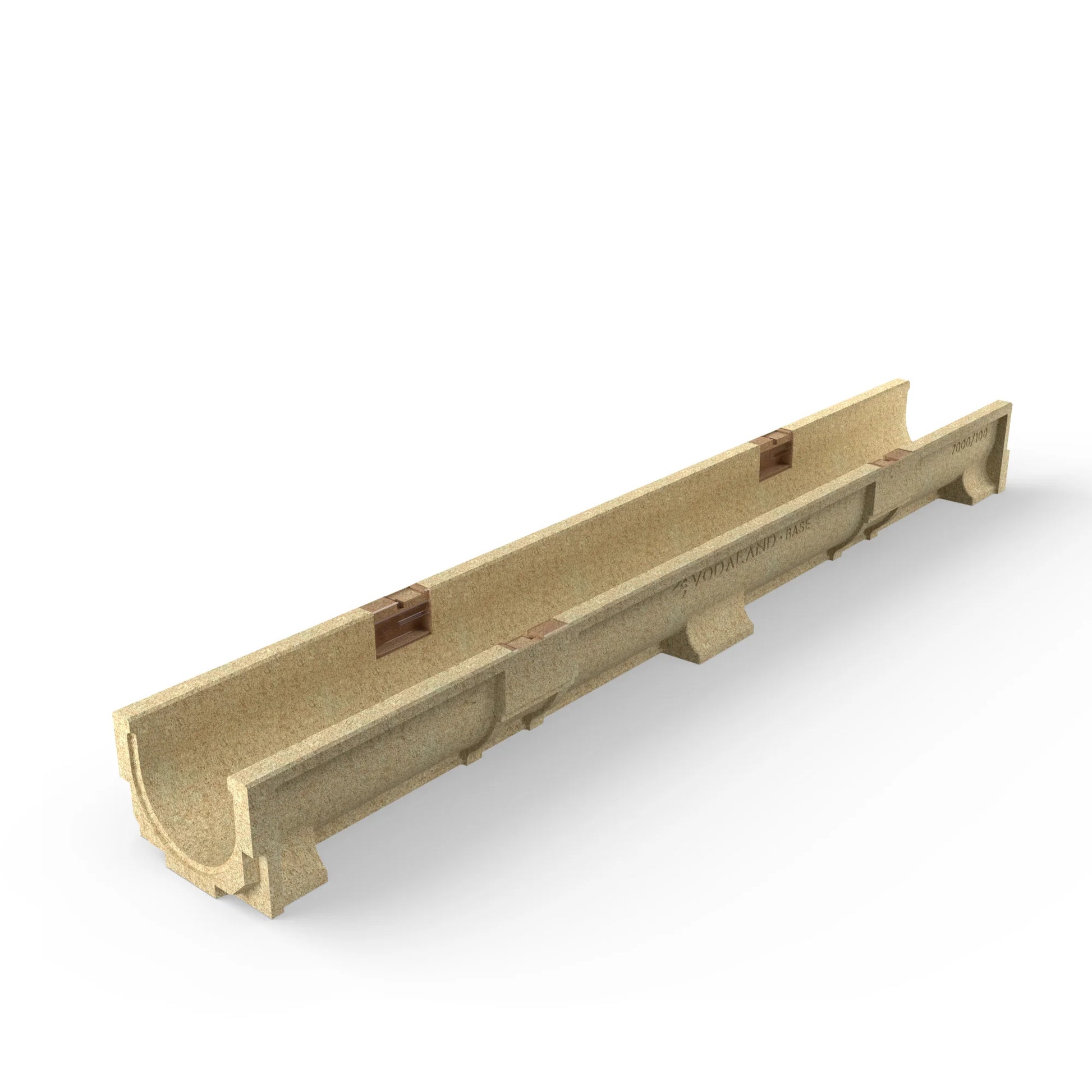

Vodaland offers a unique channel drain option with unparalleled quality and efficiency characteristics. Our BASE DN100 channels are made of high quality polymer concrete with an internal depth of 100mm.
Our channels will easily replace similar solutions made of plastic, polymer concrete and concrete. Due to its robust construction and outstanding water flow characteristics it is one of our most versatile products.
This particular channel package comes with 2 ductile cast iron grates (Load class C250) and is perfect for car parks and other areas with cars. The cast iron grate is Anti-Slip and provides good tyre grip. End caps are not included in the package.
