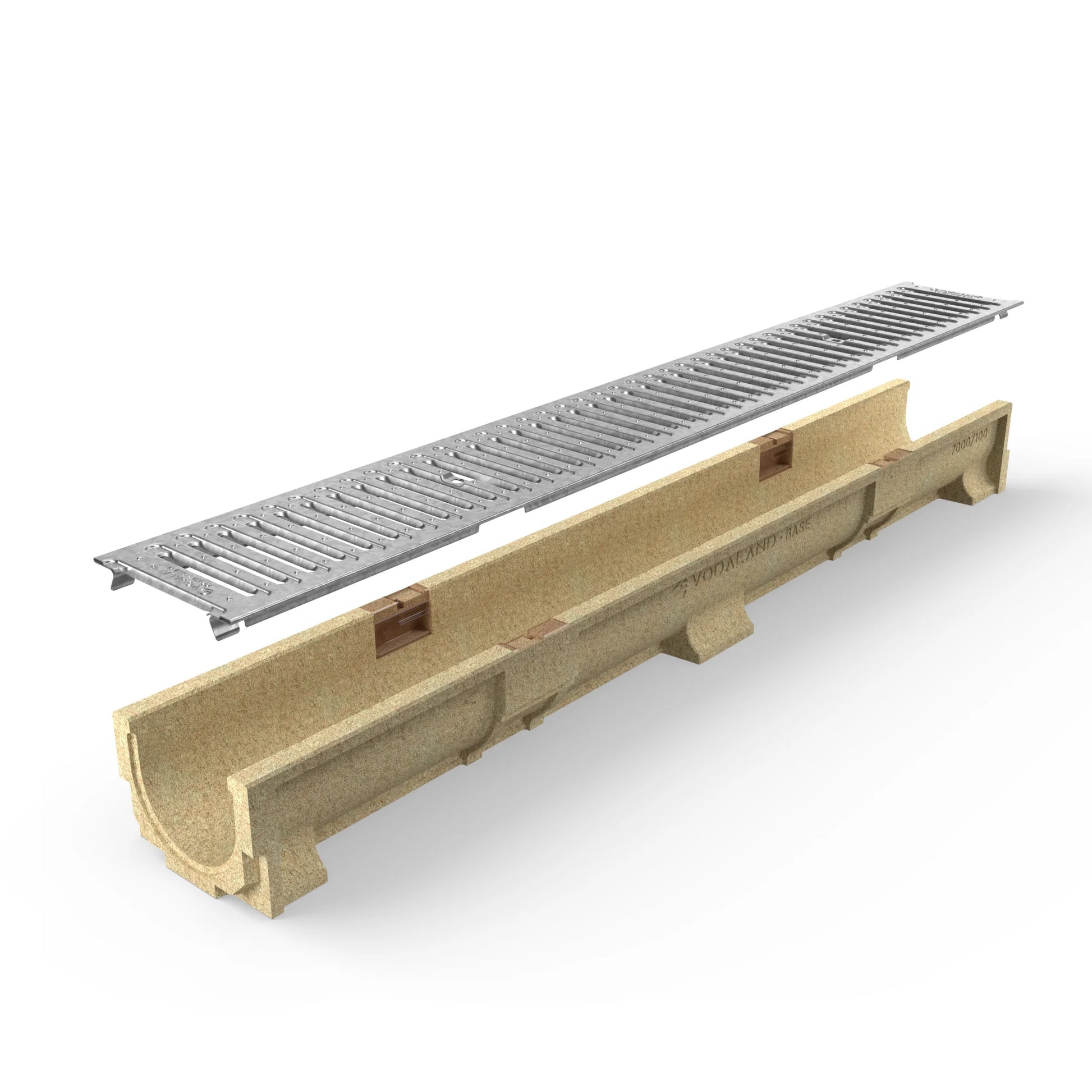

BASE 100PC Polymer concrete channel drain with galvanised grate
BASE 100PC Polymer concrete channel drain with galvanised grate
- Polypropylene channel & galvanised grate
- Load Class A15
- More information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- 1000mm length
- 100mm internal and 156mm external width
- 100mm depth
- External depth is specified in channel drawings
- Polymer concrete channel and galvanised
- 90-degree connection available
- Each channel has 110mm vertical outlet
- Class load (A15)
Included in package:
• Channel drain

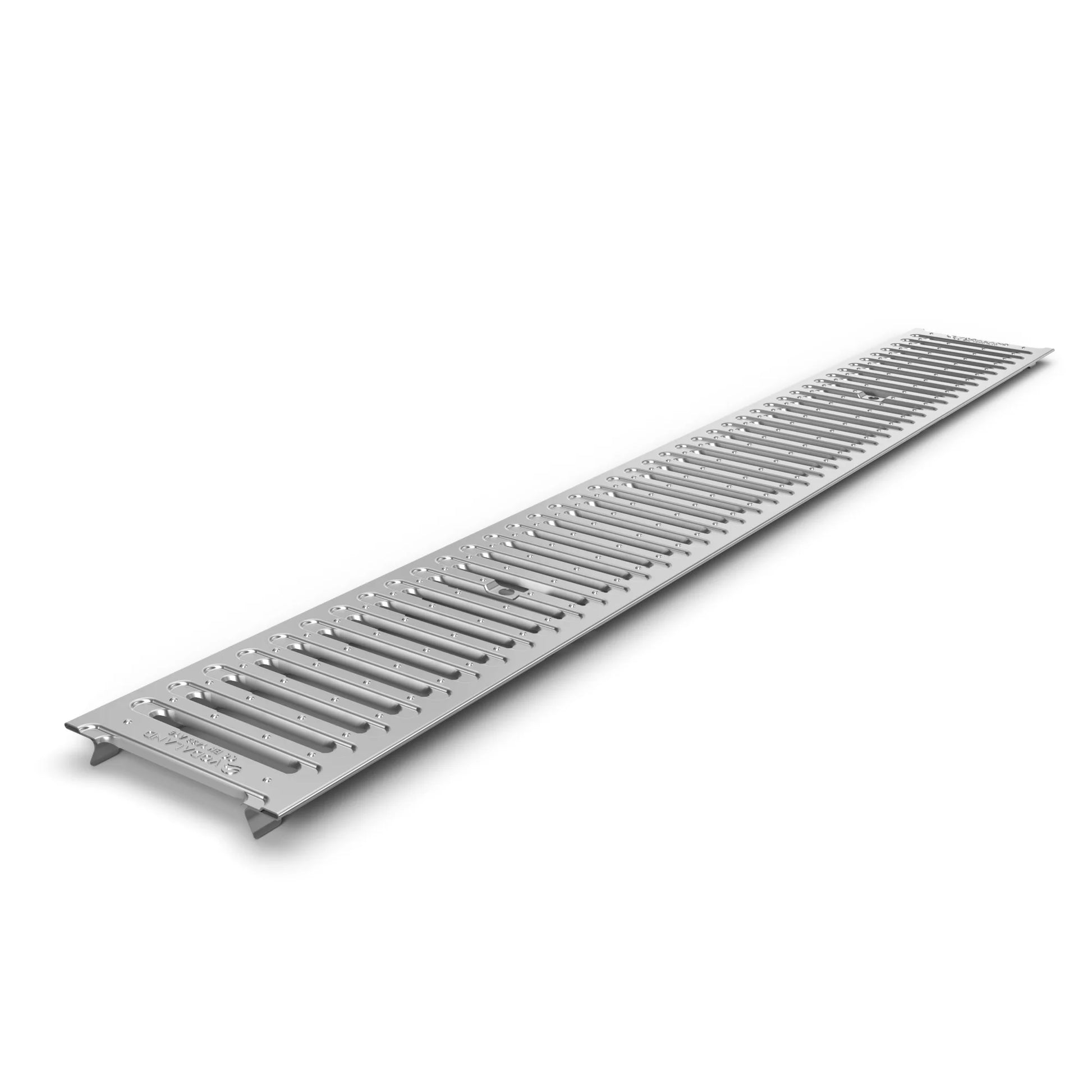

• Galvanised steel grate, A15
• Channel end caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
Product Description
Product Description

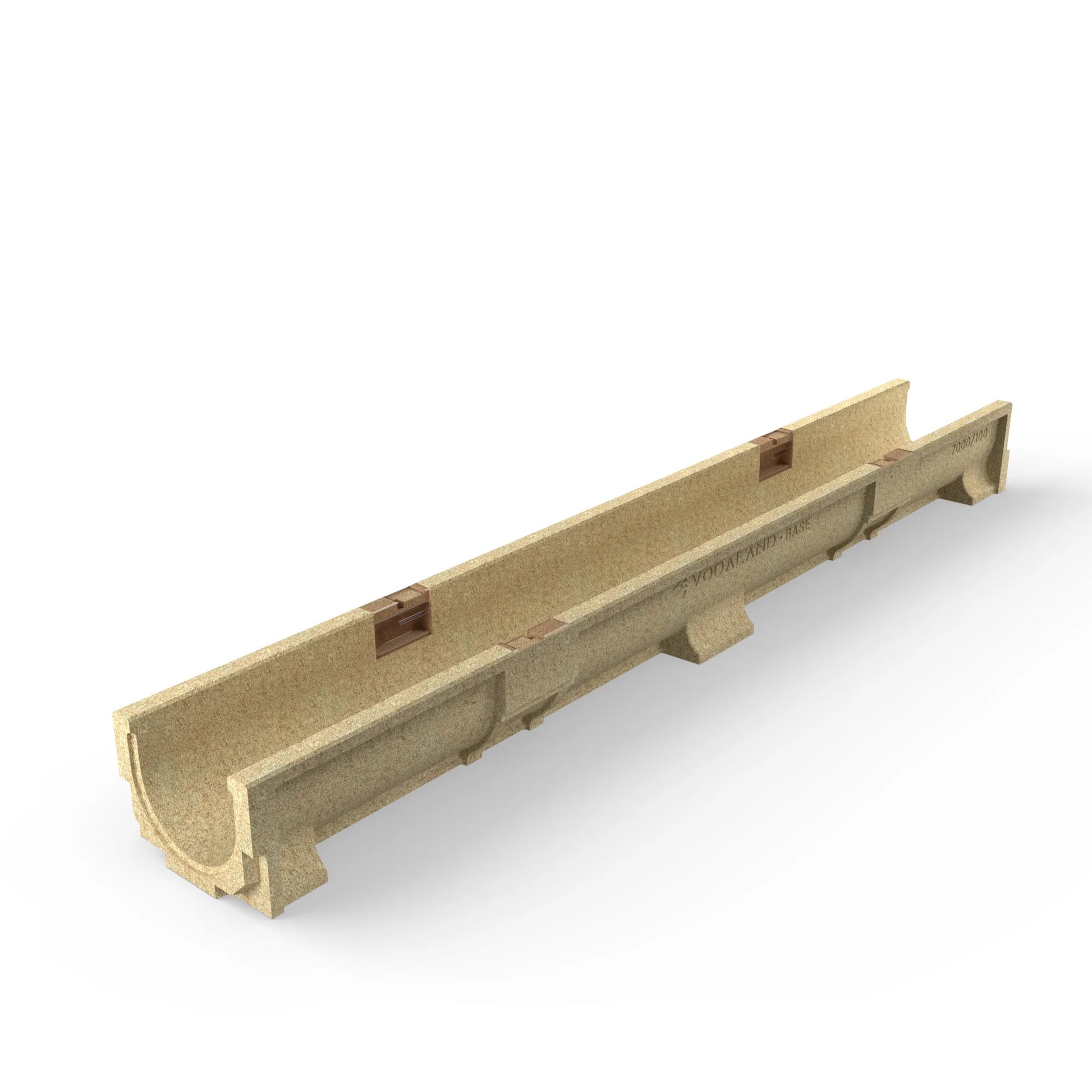

Vodaland offers a unique channel drain option with unparalleled quality and efficiency characteristics. Our BASE DN100 channels are made of high quality polymer concrete with an internal depth of 100mm.
Our channels will easily replace similar solutions made of plastic, polymer concrete and concrete. Due to its robust construction and outstanding water flow characteristics it is one of our most versatile products. This particular channel package comes with a galvanised slotted grate (Load class A15) and is perfect for pedestrian applications. End caps are not included in the package.
