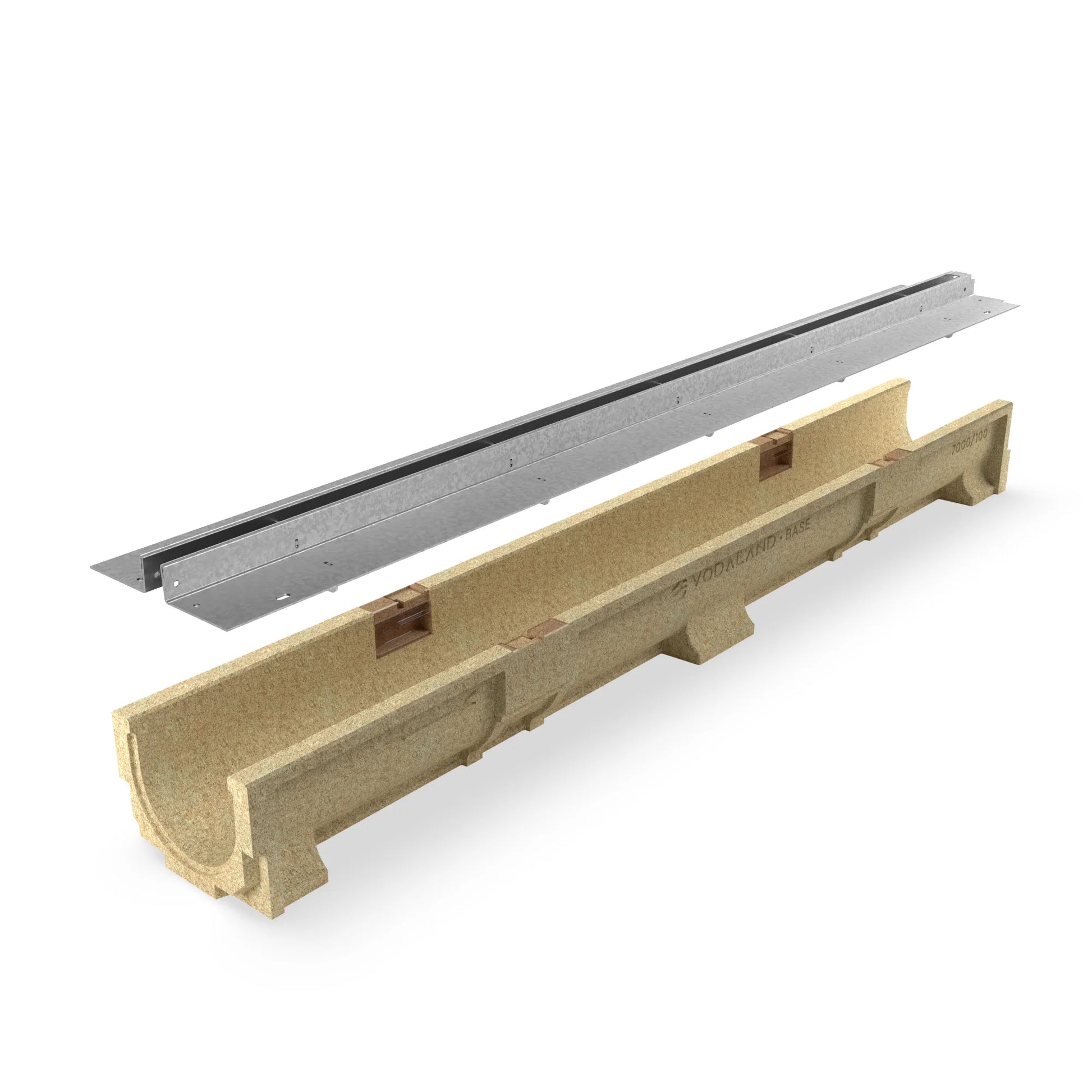

BASE 100PC Polymer concrete channel drain with galvanised SLOT T-Type H25
BASE 100PC Polymer concrete channel drain with galvanised SLOT T-Type H25
- 25mm upstand height
- Suitable for slabs and blocks up to 20mm
- For patios, pools, pedestrian areas, pavements & thresholds
- Polymer concrete channel & galvanised slot
- More information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 100mm internal and 156mm external width
• 17mm slot width
• 25mm upstand height perfect for 20mm tile / slab
• 100mm depth (internal)
• Slot upstand made of galvanised steel
• 90-degree connection available
• Load class A15
Included in package:
• Channel drain
• Galvanised steel T-Type H25 slot upstand, A15
• Channel end caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
• SLOT HeelSafe covers, access units and 90-degree accessories are available in SLOT Drain accessories in menu
Product Description
Product Description
Vodaland's SLOT Drain systems are designed to look discreet while maintaining high efficiency and water flow capacity. The BASE 100PC is made of high strength polymer concrete, crafted for extended durability and performance.
This particular kit features a galvanised steel T-Type (centred) slot upstand and is rated load class A15 - suitable for pedestrian traffic (refer to our load class page for clarifications). It's corrosion resistant and will stand the test of time. Slot upstand has a 25mm height once placed into a channel and is suitable for slabs and tile up to 20mm. Slot opening width is 17mm which accommodates even more water during heavy rain. Optional HeelSafe covers are available for purchase separately.
