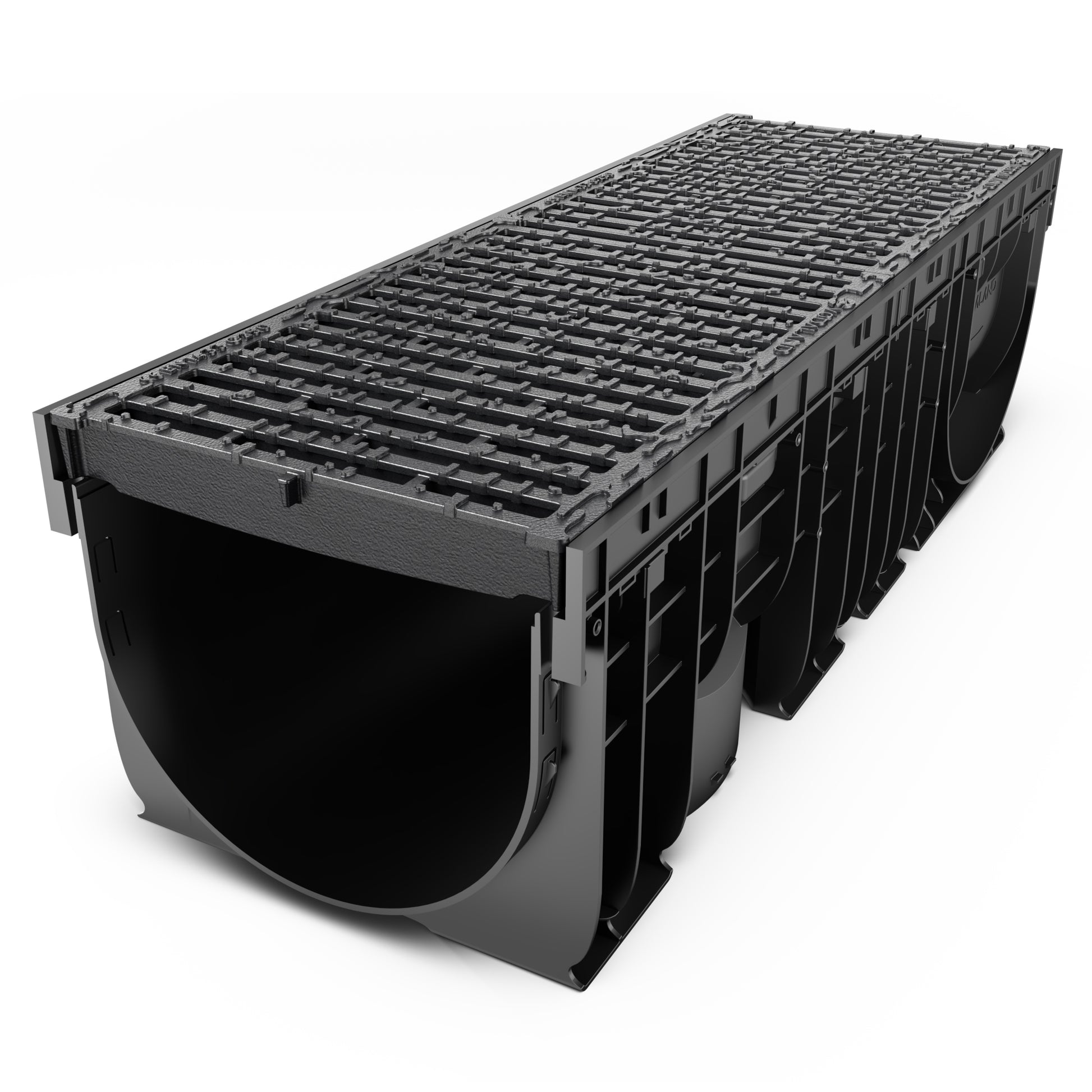

Base 300P Channel drain with cast iron grating
Base 300P Channel drain with cast iron grating
- Polypropylene channel & cast iron grates
- 300mm wide
- 1000mm length
- Load class C250
- More information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 300mm internal and 360mm external width
• 300mm depth (see channel drawing in Downloads)
• Polypropylene plastic channel and cast iron grates
• Easy and secure "clip" connection between channels
• 90-degree connection available
• Each channel has a 110mm and 160mm vertical outlets
• Anti-Slip grating
• Vehicle load (C250)
Included in package:
• Channel drain(s)

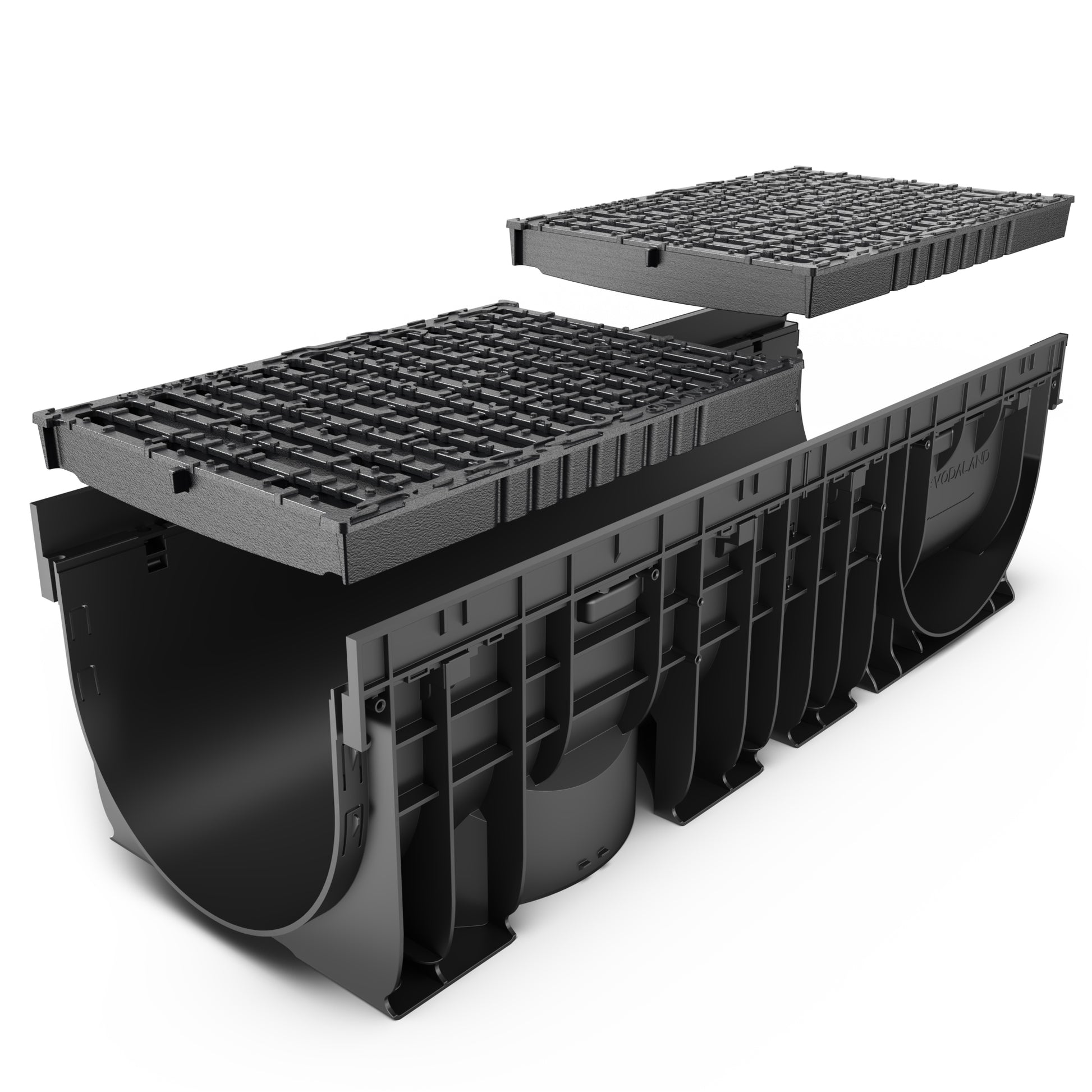

• 2 slotted ductile cast iron grates, C250 per channel
• 2 grate fasteners
• End caps are NOT included
Please note all cast iron grates are naturally prone to rusting due to the metal’s inherent properties. To help prevent rust, we apply a protective KTL coating which offers temporary resistance. However, the rate at which rust develops depends on several factors including humidity, traffic exposure, cleaning frequency, and maintenance practices.
Surface rust does not affect the strength or functionality of the grates. For customers wishing to maintain the original appearance, we recommend using a black coating spray as an additional protective measure.
Product Description
Product Description
Vodaland BASE 300P channels are 300mm internal width drainage channels and are made of 100% recycled polypropylene plastic. These are sturdy and lightweight making them easier to work with than polymer concrete counterparts which means more savings.
Each channel has 90-degree connection options, bottom outlet, and easy "click" and lock connection between channels.

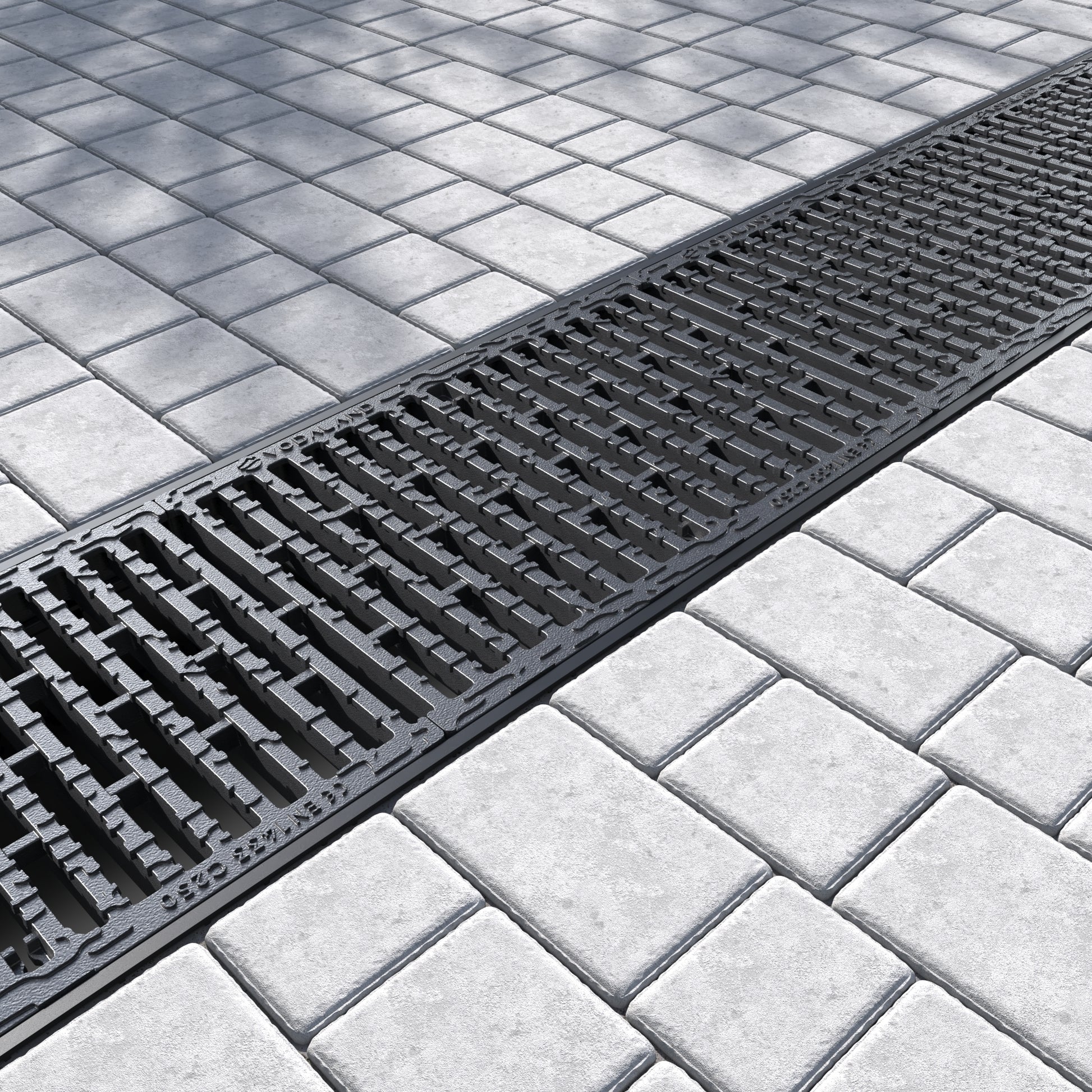

This particular channel drain package comes with 2 ductile cast iron grates (Load class C250) and is perfect for car parks, pavements and other areas with cars. The cast iron grate is Anti-Slip and provides good tyre grip. End caps are not included in the package.
