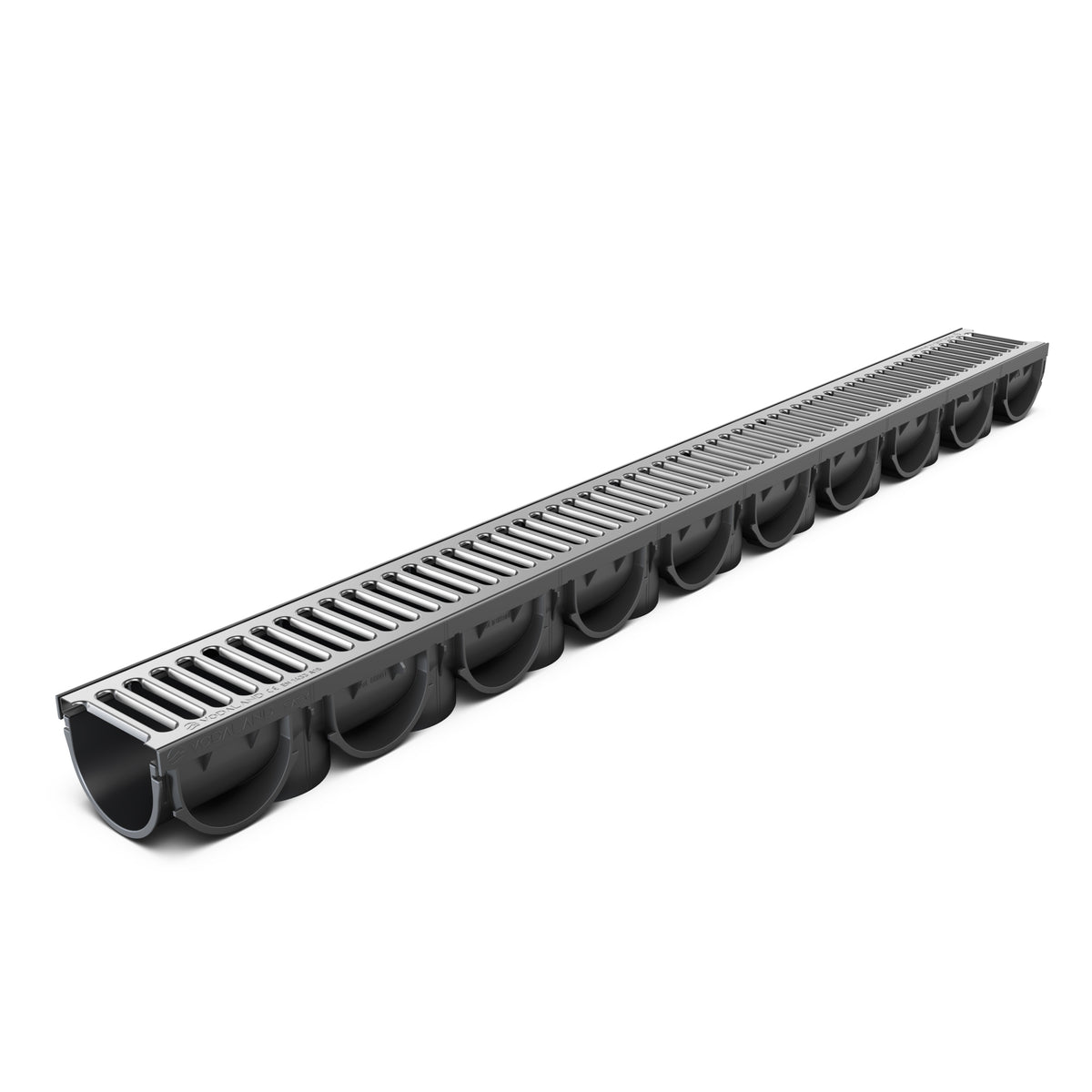

EASY X1 Channel drain with galvanised steel grate A15
EASY X1 Channel drain with galvanised steel grate A15
- Polypropylene channel
- A15 class load
- 1000mm x 90mm x 70mm
- Compact, low-profile channel design
- More information below
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Internal width 70mm
- External width 90mm
- Depth 70mm
- 9 Vertical outlets per channel
- Plastic grate, clicks securely into place
- Easy 'clip and lock' connection between channels for continuous runs
- Ideal for patios, pathways, gardens, and thresholds around the home
- Product code: 0880111
Corner connections
Each side of the channel features 10 pre-marked connection points, allowing 90-degree corner turns to be created directly along the run without a separate corner unit.
To form the connection, the indented D-shaped section at the chosen point is cut out, opening up the side outlet. A second channel is then fitted into this opening at 90 degrees, locking securely into place to continue the run around the corner.
An end cap is then fitted to the original channel beyond the turn, sealing it off and rerouting the water flow through the new corner connection instead.
Product Description
Product Description
The Vodaland Easy X1 is a simple, dependable channel drain, ideal for areas surrounding a house - patios, pathways, gardens, and other light-use spaces. Each 1-metre channel comes with 9 vertical outlets, plus 10 on each side for 90-degree corner connections, giving flexible layout options without the need for extra adapters. The plastic slotted grate clicks securely into place, and channels connect easily to form a continuous run.
The Easy X1 is engineered to provide efficient surface water drainage with a compact, low-profile design. Rated A15 for pedestrian areas, it's a hassle-free way to prevent water pooling and keep outdoor spaces well-drained.
Product code: 0880111
