Galvanised SLOT Drain T-Type H100
Galvanised SLOT Drain T-Type H100
- 100mm upstand height
- Suitable for slabs and blocks up to 80mm
- Up to 3x more flow capacity with sloped option
- For pedestrian areas, pavements, driveways, car parks
- Polypropylene channel & galvanised slot
- 100mm upstand height
- Suitable for slabs and blocks up to 80mm
- Up to 3x more flow capacity with sloped option
- For pedestrian areas, pavements, driveways, car parks
- Polypropylene channel & galvanised slot
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 100mm internal and 156mm external width
• 17mm slot width
• 100mm upstand height
• Varied depth (see channel drawings in Downloads)
• Up to 3x flow capacity when selecting a sloped channel

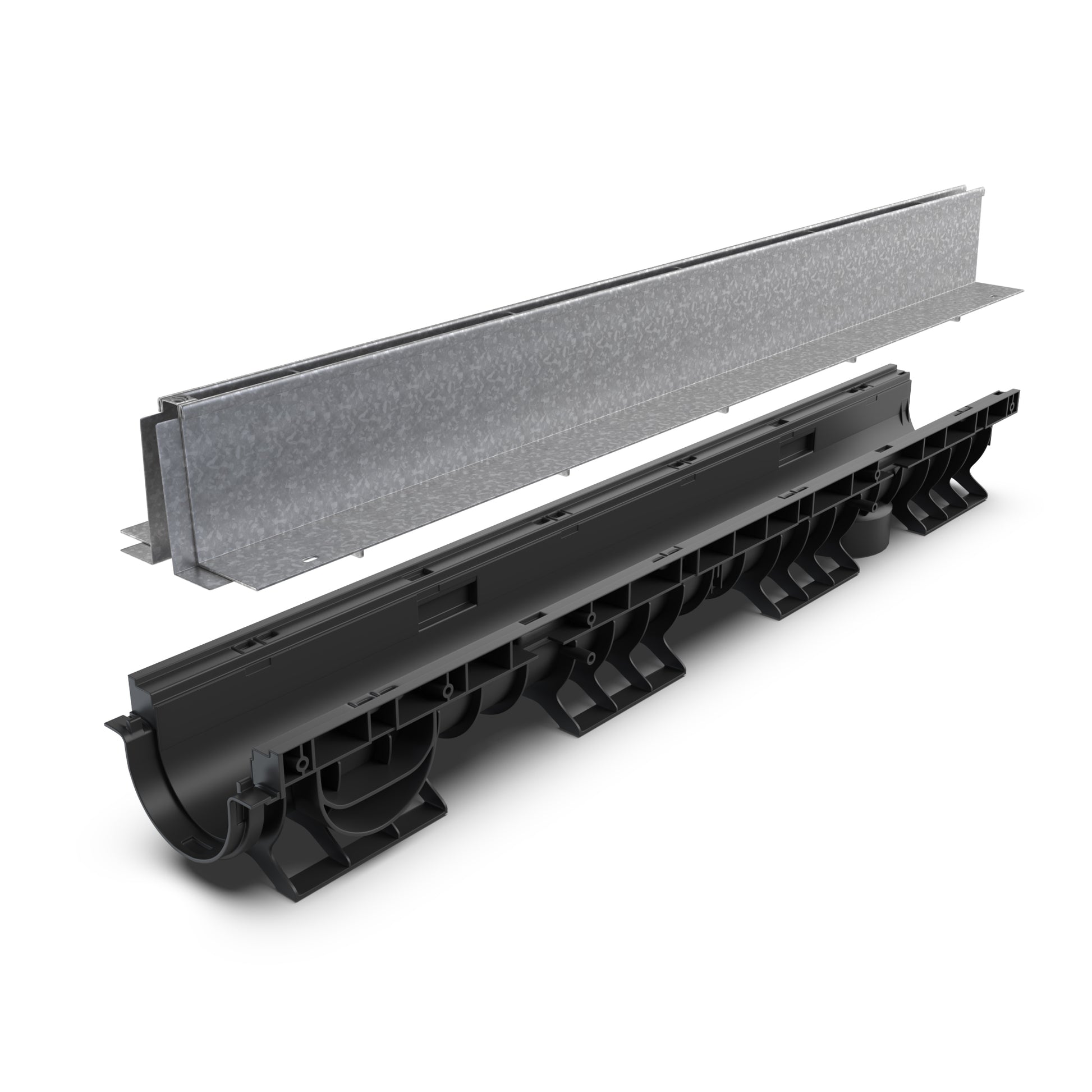

• Polypropylene plastic channel and galvanised steel slot upstand
• Easy and secure "click" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Load class C250 (when fully encased in concrete)
Included in package:
• Channel drain(s) of desired depth or length
• Galvanised steel slot upstand, C250
• Channel end caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
• SLOT HeelSafe covers, access units and 90-degree accessories are available in SLOT Drain accessories in menu
• Please note that by selecting sloped option we will ship channels starting with the lowest depth. If you require a certain depth or longer than 13m section please contact us.
Product Description
Product Description

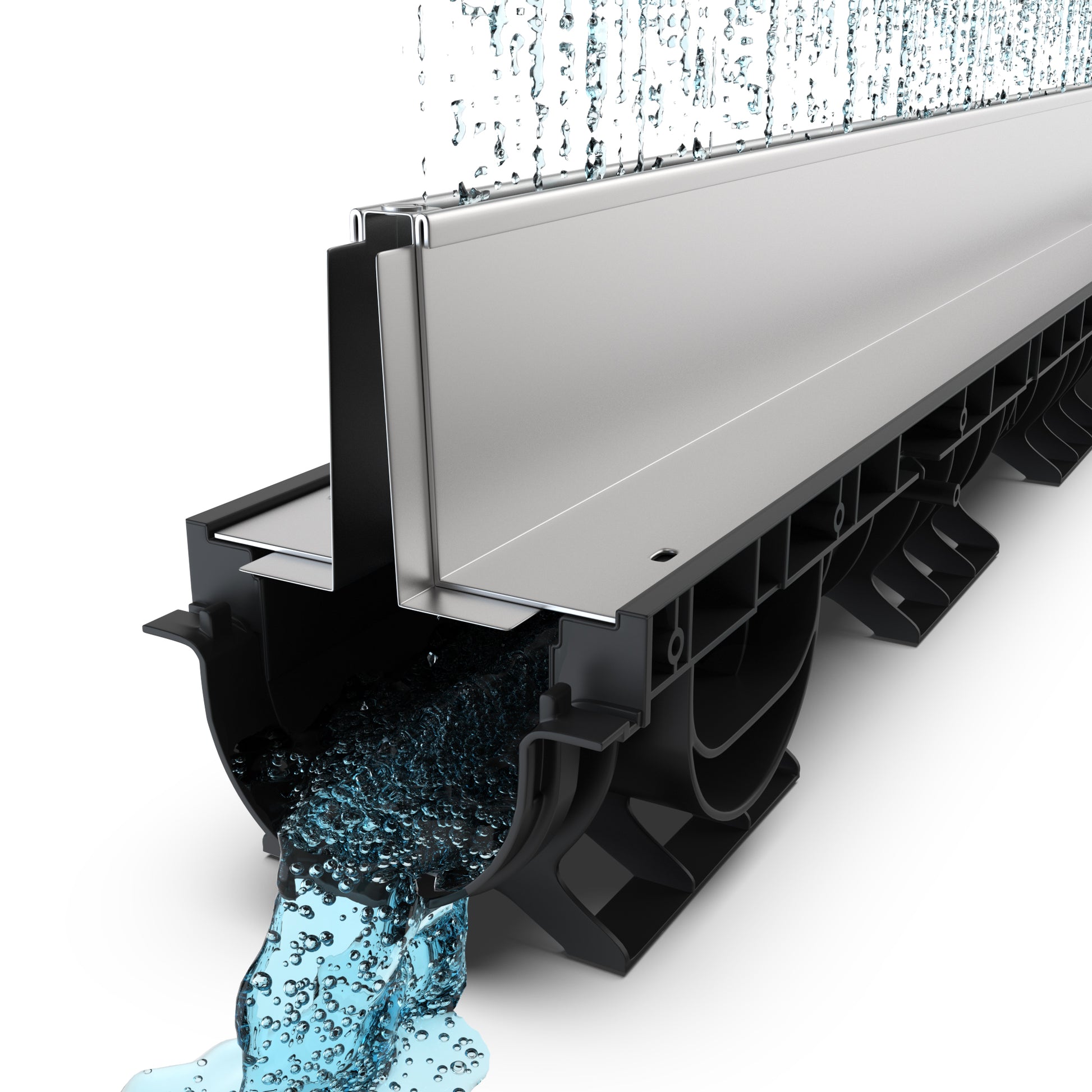

Vodaland's SLOT Drain systems are designed to look discreet while maintaining high efficiency and water flow capacity. Our SLOT Drains come in bundles and customers may choose between a sloped channel (1% slope) or neutral (no slope) option. Sloped option is recommended for longer channel drain sections, flat areas or for areas where more hydraulic capacity is needed. Each channel has 90-degree connection options, bottom outlet, and easy "click" and lock connection between channels.
This particular kit features a galvanised steel T-Type (centred) slot upstand and is rated load class C250* - suitable for anything from pedestrian to light car traffic (refer to our load class page for clarifications). Slot upstand has 100mm height once placed into a channel and is suitable for block paving up to 80mm. Slot width is 17mm which accommodates even more water during heavy rain.
Slot drains service a wide range of areas including but not limited to pool, patios, thresholds, public pedestrian areas, pavements, car parks and some roads.
*Note that slot drain must be fully encased in concrete to be rated C250.
