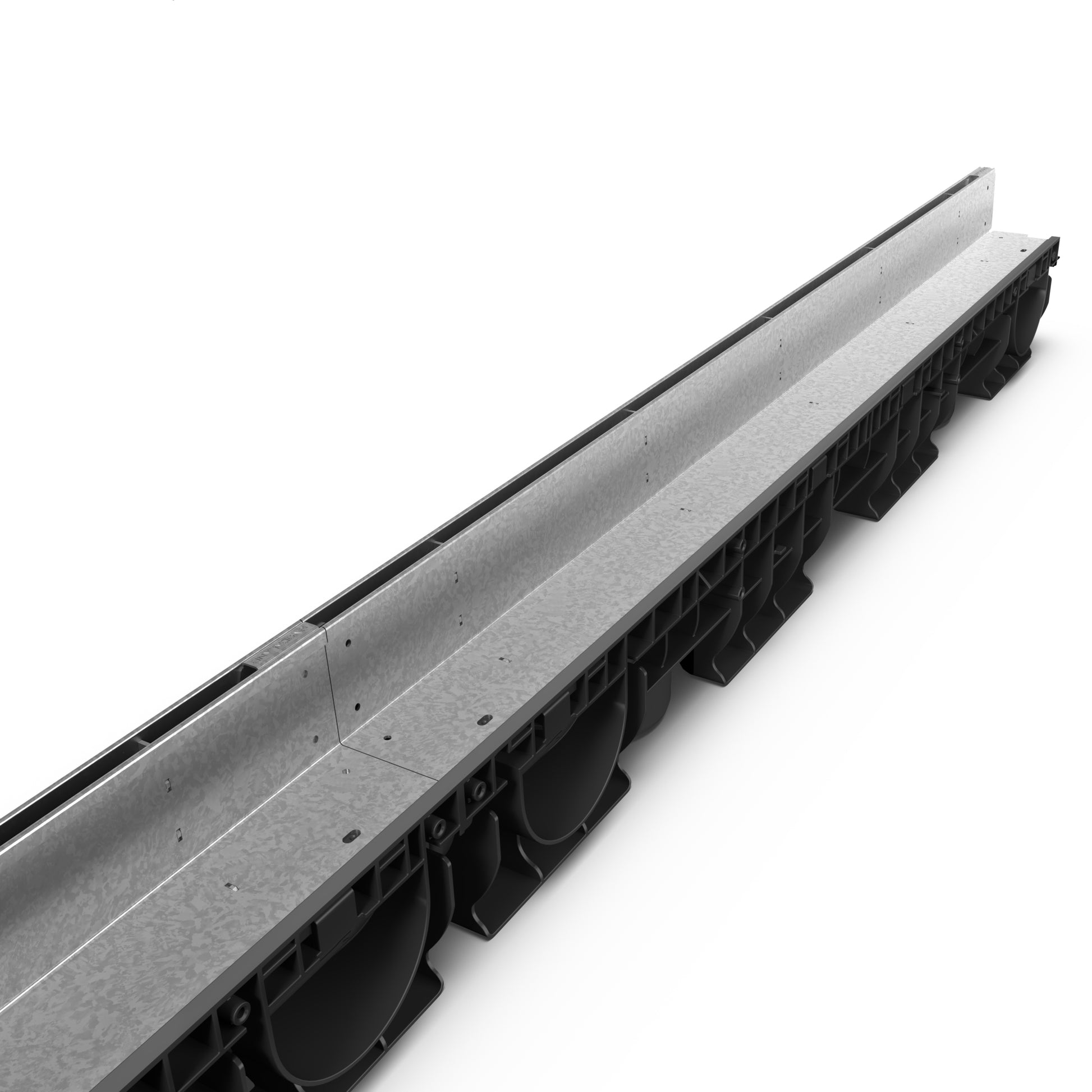

Galvanised slot drain T-Type H65, Class B125
Galvanised slot drain T-Type H65, Class B125
Regular price
£52.56
Regular price
Sale price
£52.56
Unit price
per
VAT included.
Shipping calculated at checkout.
- 65mm upstand height
- Suitable for slabs and blocks up to 60mm
- HeelSafe - 10mm slot width
- Up to 3x more flow capacity with sloped option
- For pedestrian areas, pavements, driveways & more
- Polypropylene channel & galvanised slot
- 65mm upstand height
- Suitable for slabs and blocks up to 60mm
- HeelSafe - 10mm slot width
- Up to 3x more flow capacity with sloped option
- For pedestrian areas, pavements, driveways & more
- Polypropylene channel & galvanised slot
2-3 working days delivery
View full details
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
• 1000mm length
• 100mm internal and 156mm external width
• HeelSafe - 10mm slot width
• 65mm upstand height
• Varied channel depth (see channel drawings in Downloads)
• External depth is specified in channel drawings in Downloads
• Up to 3x flow capacity when selecting a sloped channel
• Polypropylene plastic channel and galvanised steel slot upstand
• Easy and secure "click" connection between channels
• 90-degree connection available
• Each channel has a 110mm vertical outlet
• Load class B125 (when fully encased in concrete)

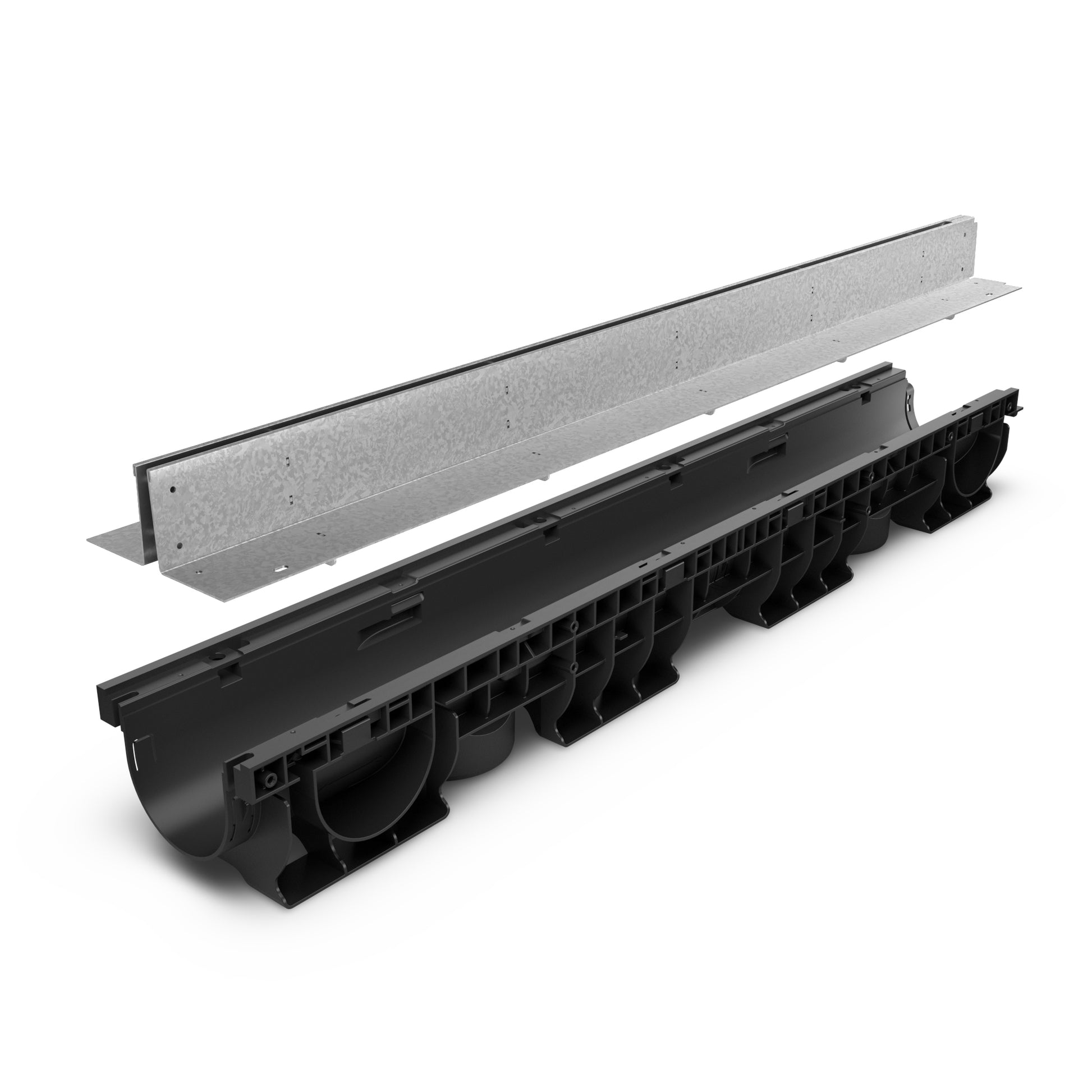

Included in package:
• Channel drain(s) of desired depth
• Galvanised steel slot upstand, B125
• Channel end caps are NOT included (add to cart from list below or in DN100 channel accessories in menu)
• Access units and other accessories are available in SLOT Drain accessories in menu
Product Description
Product Description
Vodaland's SLOT Drain systems are designed to look discreet while maintaining high efficiency and water flow capacity. Our SLOT Drains come in bundles and customers may choose between a sloped channel (1% slope) or neutral (no slope) option. Sloped option is recommended for longer channel drain sections or for areas where more capacity is needed. Each channel has 90-degree connection options, bottom outlet, and easy "clip" and lock connection between channels.
This particular kit features a galvanised steel T-Type (offset) slot upstand and is rated load class B125* - suitable for anything from pedestrian to light car traffic (refer to our load class page for clarifications). Slot upstand height is 65mm and is suitable for block paving up to 60mm. This slot drain is heelsafe; slot width is 10mm.

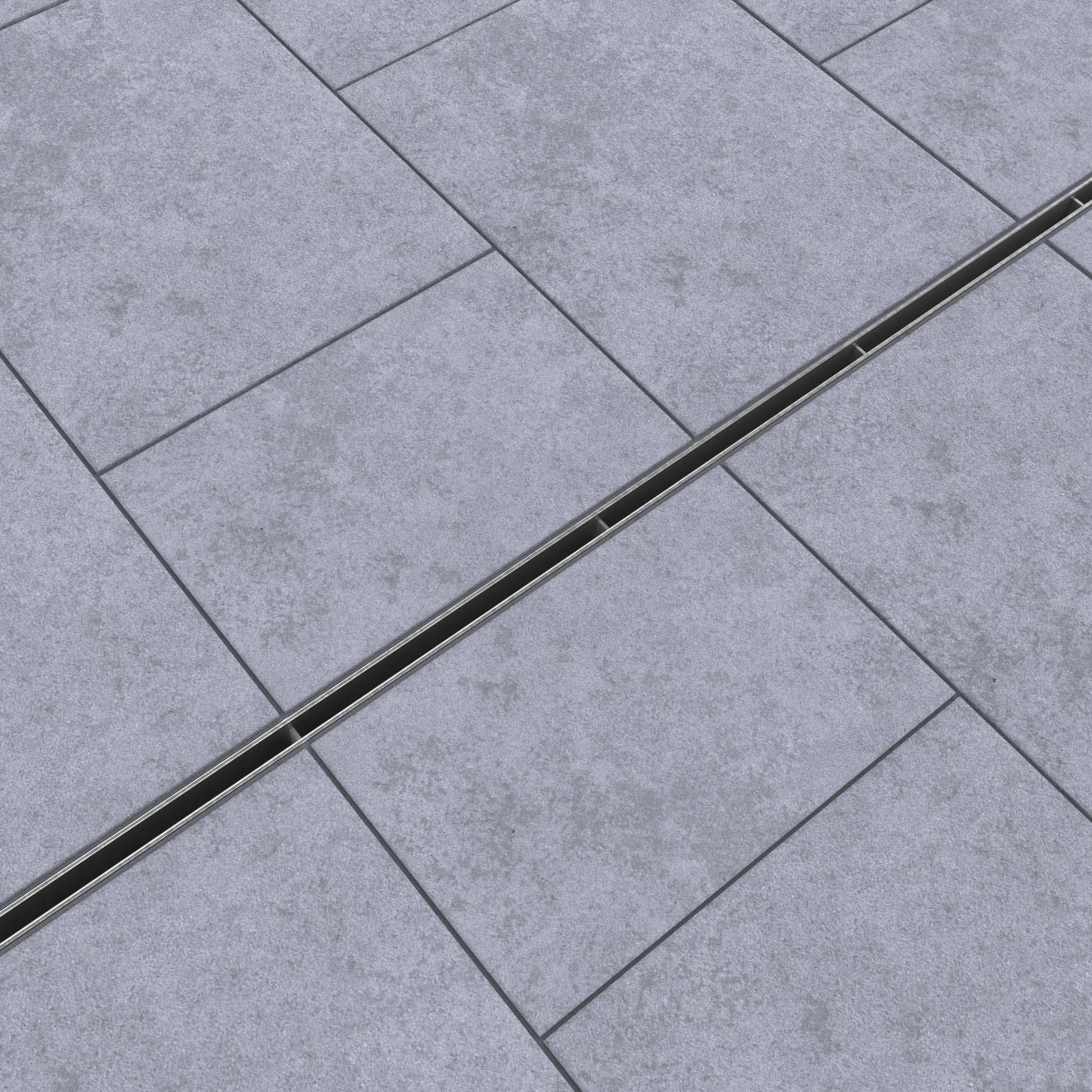

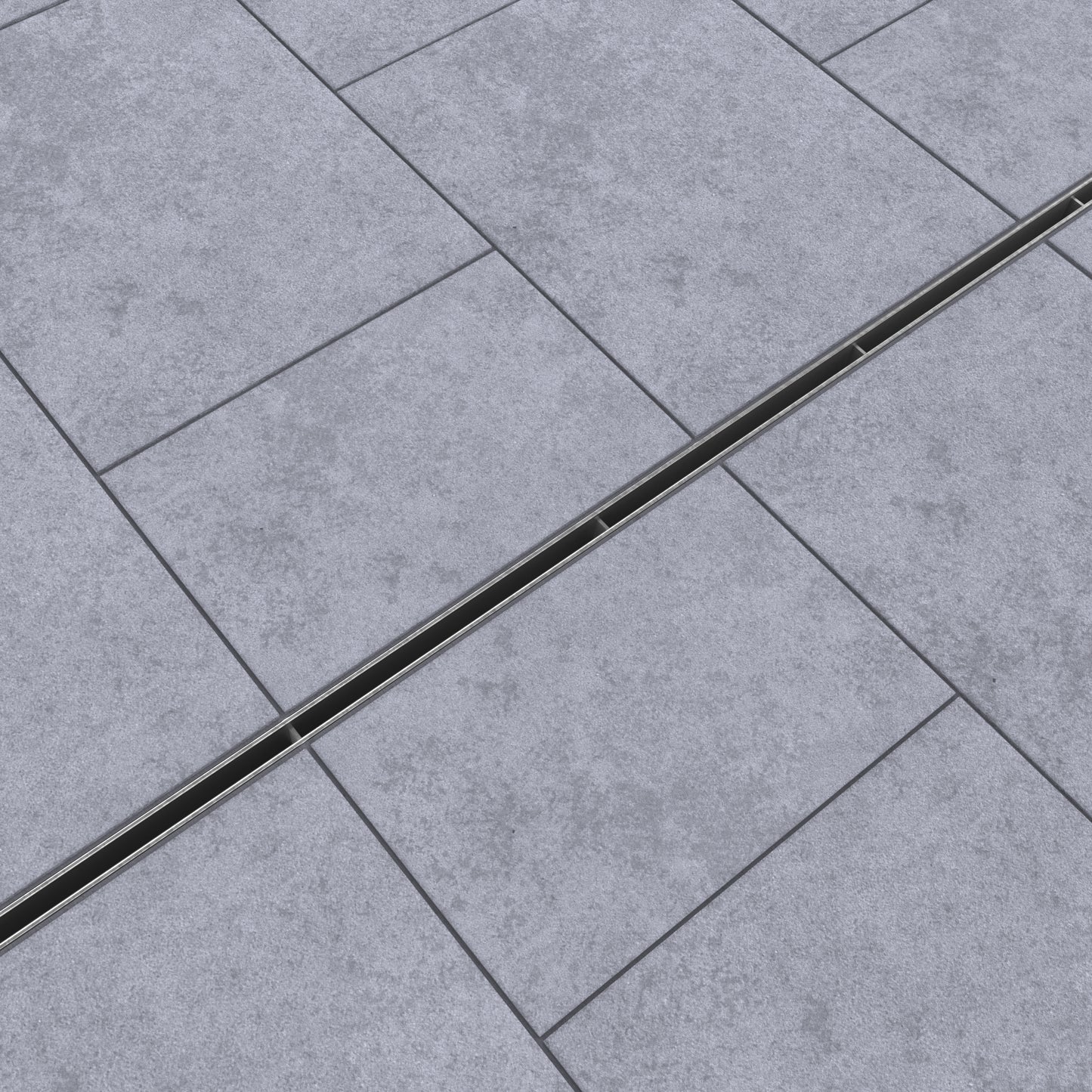

Slot drains service a wide range of areas including but not limited to driveways, patios, thresholds, public pedestrian areas, pavements.
*Note that slot drain must be fully encased in concrete to be rated B125.
